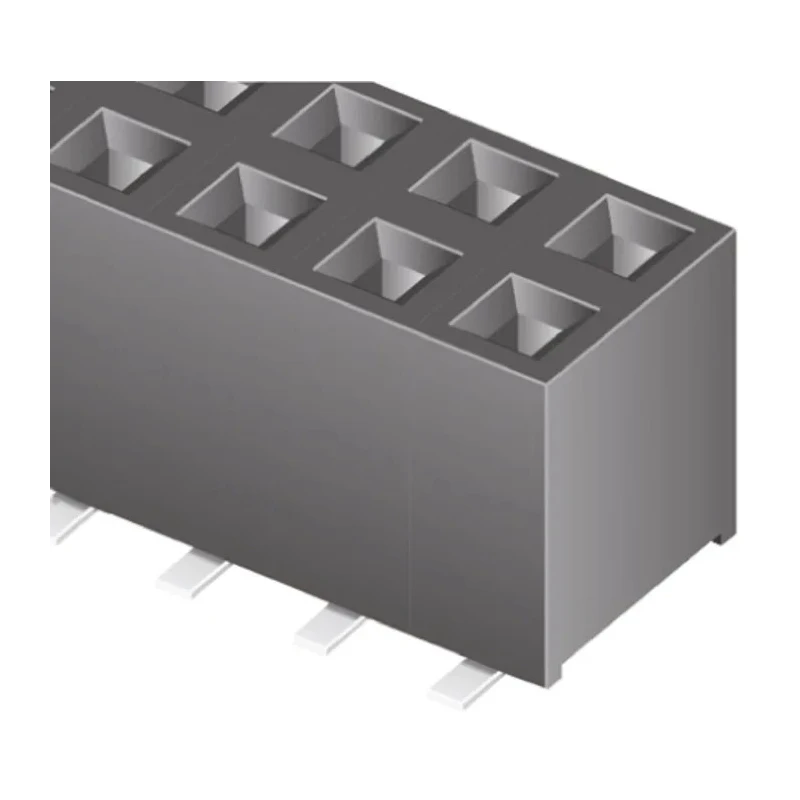

Samtec TLE Series Straight Surface PCB Socket 16-Contact 2 Row 2 mm Pitch Solder TLE-108-01-G-DV
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.2A |
| Temperature range | -55 → 125 °C |
| Model | TLE-108-01-G-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | TLE |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Insulator Material | Black LCP |
Key Features
- Constructed with bronze contacts plated with 0.25 μm gold for superior conductivity.
- Housing made from black Liquid Crystal Polymer (LCP) for durability and high temperature resistance.
- Operates reliably in the temperature range of -55°C to 125°C.
- Surface mount type with straight orientation for easy PCB assembly.
- Supports a current rating of 3.2A per contact ensuring stable electrical performance.
- Designed for dual-row 2 mm pitch with row pitch also 2 mm for compact installation.
- Female contact gender suitable for specific board-to-board mating connectors.
- No specific standards or approvals indicated for this model.
Product Description
Samtec TLE-108-01-G-DV is a high-quality straight surface PCB socket, part of the TLE series, designed for industrial and electronic applications requiring reliable board-to-board connections. It features 16 contacts arranged in 2 rows with a pitch of 2 mm, matching the row pitch, making it suitable for dense circuit configurations.
The socket employs bronze contacts plated with 0.25 μm gold to ensure excellent electrical conductivity and resistance to wear. The housing is fabricated from black Liquid Crystal Polymer (LCP), providing mechanical strength and thermal stability within the broad operating temperature range of -55°C to +125°C.
Its surface mount design and straight orientation facilitate easy soldering and integration onto printed circuit boards. Rated for 3.2A current per contact, this socket supports stable electrical performance in demanding industrial, laboratory, manufacturing, and commercial electronics environments.
This reliable socket strip is specifically engineered for board-to-board connector systems requiring dual-row configurations at a 2 mm pitch, making it ideal for compact electronic assemblies and high-density PCB designs. The female contact gender ensures compatibility with corresponding male headers.
Though no formal standards or certifications are listed, the high-grade materials and Samtec's engineering quality provide robust performance for various electronic component interconnections. Typical use cases include industrial control systems, automation equipment, communication devices, and instrumentation.
Constructed with bronze contacts plated with 0.25 μm gold. Housing made from black Liquid Crystal Polymer offering heat resistance. Dual-row, 16-contact layout with 2 mm pitch for compact PCB design. Surface mount technology (SMT) with straight orientation for easy soldering.
Operates in extreme temperature range of -55°C to 125°C. Rated current of 3.2A per contact for stable operational performance. Designed for board-to-board female connector applications. Ideal for industrial, laboratory, manufacturing, and commercial electronic assemblies.
Browse more PCB Sockets and connectors on EnvMart for dependable electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 3.2A per contact, ensuring stable electrical performance in various applications.
The operating temperature range for the TLE-108-01-G-DV is from -55°C to +125°C, making it suitable for extreme environments.
It features a surface mount design, which allows for easy soldering onto printed circuit boards.
The TLE-108-01-G-DV has a contact pitch of 2 mm, with a dual-row configuration also maintaining the same pitch for compact installations.
The contacts are made of bronze and are plated with 0.25 μm gold for conductivity, while the housing is constructed from black Liquid Crystal Polymer (LCP) for durability.
This model features a total of 16 contacts arranged in 2 rows.
The contact gender of the TLE-108-01-G-DV is female, designed for compatibility with corresponding male headers in board-to-board connector systems.
It utilizes a solder termination type for secure and reliable connections on printed circuit boards.
The TLE-108-01-G-DV is part of the TLE series of PCB sockets, designed for high-density electronic applications.
This model has a straight orientation, which facilitates easier assembly onto PCBs.
The Samtec TLE-108-01-G-DV is manufactured in India.
This PCB socket is suitable for industrial, laboratory, manufacturing, and commercial electronic assemblies requiring reliable board-to-board connections.
