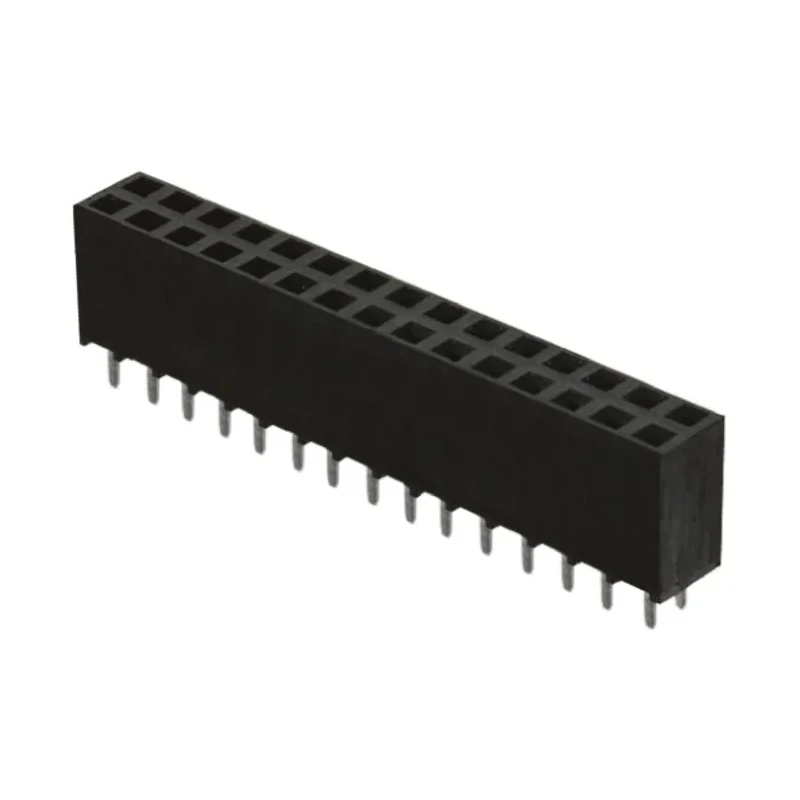

Samtec SSW Series Straight Through Hole PCB Socket 30-Contact 2 Row 2.54 mm Pitch Solder SSW-115-01-T-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 6.9A |
| Model | SSW-115-01-T-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 30 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
Key Features
- Designed for board-to-board connector applications.
- Housing made from durable liquid crystal polymer ensuring high reliability.
- Contact material is bronze with tin plating optimized for soldering.
- Supports current rating of 6.9A and voltage rating up to 550V.
- Through-hole mount with straight orientation facilitating robust mechanical connection.
- Operating temperature range from -55°C to 105°C for stable performance.
- Row pitch of 2.5 mm allowing tight contact placement.
- Contact gender is female suitable for mating with male headers.
Product Description
The Samtec SSW-115-01-T-D is a high-quality straight through hole PCB socket designed for seamless board-to-board connections. Featuring 30 contacts arranged in 2 rows with a 2.54 mm pitch, this component supports robust electrical and mechanical performance necessary for complex electronic assemblies.
Its housing is constructed from liquid crystal polymer, offering excellent insulation and mechanical strength. The contacts are made from bronze with tin plating, ensuring reliable solderability and corrosion resistance suitable for long-term use.
This PCB socket supports a current rating of 6.9 amperes and voltage rating up to 550 volts, making it suitable for high-performance electronic devices. It utilizes through-hole mounting technology with a straight orientation, providing strong physical support and secure mounting to printed circuit boards.
The socket operates efficiently within a broad temperature range from -55°C to 105°C, accommodating demanding industrial environments. The design includes a row pitch of 2.5 mm and female contact gender, suitable for mating with square post headers typically used in board-to-board applications.
This connector is widely used across industrial, manufacturing, electronic equipment, and power connector sectors. Its reliability and ease of assembly make it an ideal choice for high-density PCB interconnection solutions.
Designed for board-to-board connector applications. High-temperature durable liquid crystal polymer housing. Bronze contacts plated with tin for reliable soldering. Rated for 6.9A current and 550V voltage. Straight orientation through-hole mounting.
Operative temperature range from -55°C to 105°C. 2.54 mm pitch with 2 rows and 30 contacts. Female contact gender compatible with common headers. No specific industry certifications but meets standard specifications. Ideal for industrial and manufacturing PCB assembly.
Explore the full range of PCB Sockets and Electronic Connectors at EnvMart for suitable complementary components and tools.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 6.9A and a voltage rating of up to 550V.
The socket features a pitch of 2.54 mm and includes 30 contacts arranged in 2 rows.
It operates efficiently within a temperature range from -55°C to 105°C.
The housing is made from liquid crystal polymer, while the contacts are bronze with tin plating.
This model utilizes through-hole mounting technology with a straight orientation for secure installation.
It is designed for board-to-board connector applications.
This socket has a female contact gender, making it suitable for mating with male headers.
While it does not have specific industry certifications, it meets standard specifications for PCB sockets.
The contacts are oriented straight, facilitating robust mechanical connections.
The 2.54 mm pitch allows for tight placement of contacts, which is beneficial for high-density PCB designs.
This model is widely used in industrial, manufacturing, and electronic equipment sectors for PCB assembly.
It employs solder termination for reliable electrical connections.
