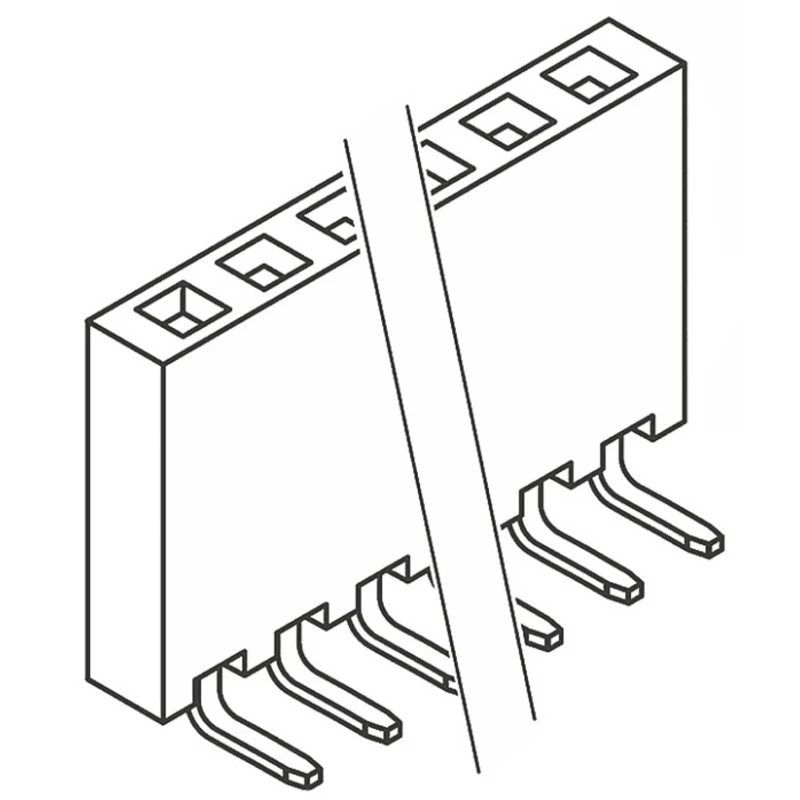

Samtec SSW Series Right Angle Through Hole PCB Socket, 9-Contact, 1 Row, 2.54 mm Pitch, Solder Termination SSW-109-02-G-S-RA
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 6.9A |
| Model | SSW-109-02-G-S-RA |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Features 9 female contacts arranged in a single row for compact PCB interfacing.
- Constructed with liquid crystal polymer housing for excellent durability and thermal stability.
- Phosphor bronze contacts plated with 0.51μm gold for superior conductivity and corrosion resistance.
- Supports a current of up to 6.9A and voltage rating of 550V for robust electrical performance.
- Designed for right angle installation with through hole mounting for secure mechanical stability.
- Operational temperature range from -55°C to 125°C suits industrial and commercial applications.
- Compatible with TSW and TSM series headers featuring 2.54 mm square post pitch.
- Ideal for industrial electronics, manufacturing, instrumentation, and PCB assembly applications.
Product Description
Samtec SSW-109-02-G-S-RA is a right angle through hole PCB socket designed for board-to-board connections with high reliability and performance. It features 9 female contacts in one row spaced at a 2.54 mm pitch with solder termination, suitable for multiple industrial applications including electronics manufacturing, control systems, and instrumentation.
The socket housing is made from liquid crystal polymer providing excellent mechanical strength and temperature resistance up to 125°C. Contacts are phosphor bronze plated with 0.51μm gold over nickel, ensuring low contact resistance and corrosion protection. Its current rating of 6.9 A and voltage rating of 550 V make it suitable for a range of power and signal requirements.
Designed for through hole mounting in a right angle orientation, the SSW series socket provides secure mechanical and electrical integrity on PCBs. The operating temperature range spans -55°C to 125°C, allowing reliable use in harsh industrial environments.
The SSW-109-02-G-S-RA mates with compatible TSW series through hole headers and TSM series SMT headers, both with 2.54 mm square posts, supporting flexible PCB assembly designs. This product meets strict quality standards for high-performance electronics connectors and is packaged to facilitate error-free insertion during automated assembly processes.
9 female contacts in single row at 2.54 mm pitch. Liquid crystal polymer housing for durability. Gold plated phosphor bronze contacts ensure conductivity. Rated for 6.9 A current and 550 V voltage. Right angle orientation with through hole mount.
Operate between -55°C and 125°C temperature range. Compatible with TSW and TSM series headers. Suitable for industrial PCB applications. Explore the full range of Samtec PCB Sockets and connectors on EnvMart for industrial-grade electronic components and power connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this model is 550V, making it suitable for a range of power applications.
It supports a current of up to 6.9A, ensuring robust electrical performance for various applications.
The contacts are arranged at a pitch of 2.54 mm, which is standard for many PCB applications.
The housing is constructed from liquid crystal polymer, providing excellent durability and thermal stability.
This model features 9 female contacts arranged in a single row.
It operates within a temperature range of -55°C to 125°C, suitable for harsh industrial environments.
The SSW-109-02-G-S-RA uses solder termination for secure connections on PCBs.
Yes, it is compatible with TSW and TSM series headers that feature 2.54 mm square posts.
This model is designed for through hole mounting, providing secure mechanical stability.
The contacts are made of phosphor bronze and are plated with 0.51μm gold for superior conductivity and corrosion resistance.
It is ideal for industrial electronics, manufacturing, instrumentation, and PCB assembly applications.
The socket is designed for right angle installation, allowing for compact PCB interfacing.
