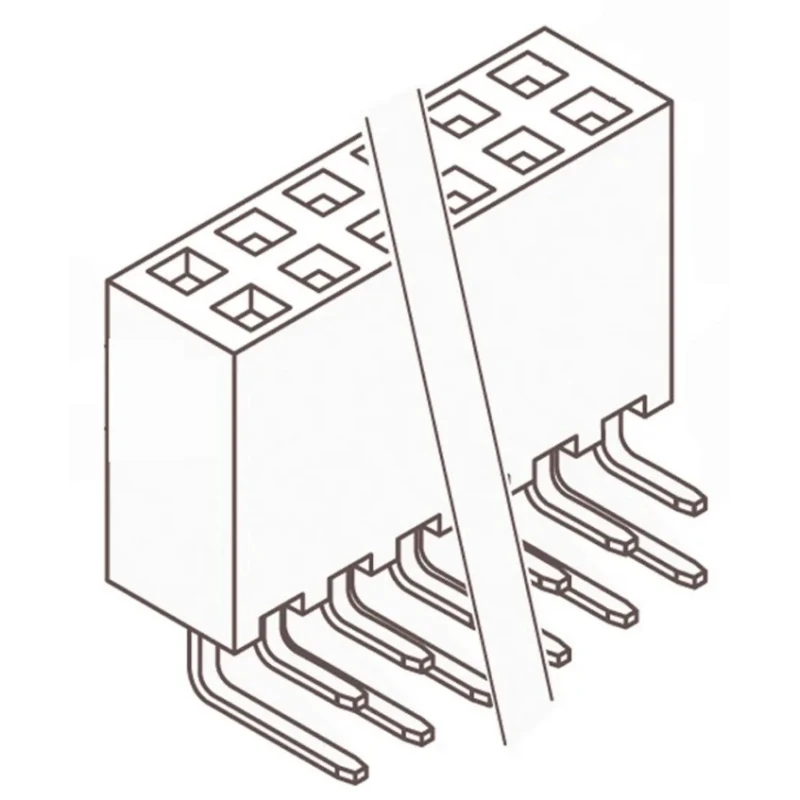

Samtec SSW Series Right Angle Through Hole PCB Socket 18-Contact, 2 Row, 2.54 mm Pitch Solder Termination SSW-109-02-G-D-RA
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 6.9A |
| Model | SSW-109-02-G-D-RA |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Tin |
| Number of Contacts | 18 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
Key Features
- Right angle through hole mounting for efficient PCB assembly.
- Bronze contact material offers high conductivity and durability.
- Gold over tin plating ensures excellent corrosion resistance.
- Rated for 6.9A current and 550V voltage for high-power applications.
- Operates reliably between -55°C and 125°C for diverse environments.
- 2.54 mm pitch allows precise component positioning.
- Designed for industrial automation, power distribution, and high-speed data transmission.
- Secure solder termination for stable electrical connections.
Product Description
Samtec SSW-109-02-G-D-RA is a high-performance right angle through hole PCB socket with 18 contacts arranged in 2 rows, designed for board-to-board applications requiring reliable and efficient connections. It features a 2.54 mm pitch and solder termination type suitable for durable soldering processes.
The socket body is made from liquid crystal polymer, providing excellent mechanical strength and thermal resistance. Contacts are constructed from bronze material plated with gold over tin to ensure optimal conductivity and corrosion resistance, enhancing long-term performance.
With a current rating of 6.9A and voltage rating of 550V, this PCB socket supports high-power and high-voltage applications in various industrial environments. Operating temperature ranges from -55°C to 125°C, allowing use in demanding conditions without compromising reliability.
This connector is ideal for use in industrial automation systems, power distribution and control panels, and applications involving high-speed data transmission in electronic devices. The right angle orientation simplifies PCB mounting processes and ensures space-efficient assembly.
Right angle through hole mounting for efficient PCB assembly. Bronze contact material offers high conductivity and durability. Gold over tin plating ensures excellent corrosion resistance. Rated for 6.9A current and 550V voltage for high-power applications.
Operates reliably between -55°C and 125°C for diverse environments. 2.54 mm pitch allows precise component positioning. Designed for industrial automation, power distribution, and high-speed data transmission. Secure solder termination for stable electrical connections.
Samtec SSW series components integrate seamlessly with other Samtec products, ensuring flexible and modular board-to-board connection solutions. This socket is engineered for robustness, making it a preferred choice in electrical and electronics manufacturing sectors.
Explore the Samtec SSW series at EnvMart for high-quality PCB Sockets suitable for advanced electronic component assembly and industrial applications.
