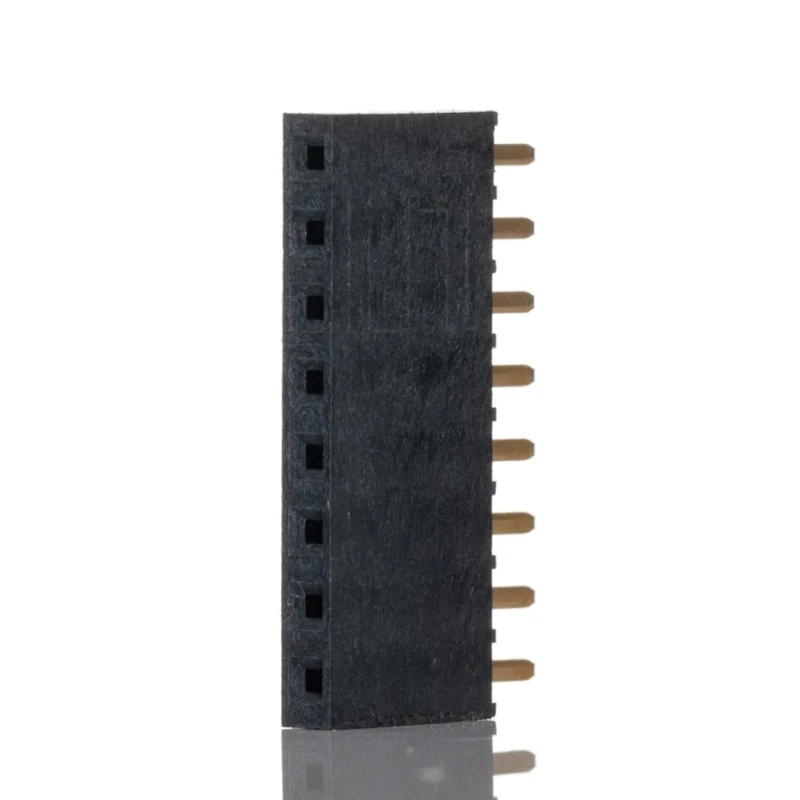

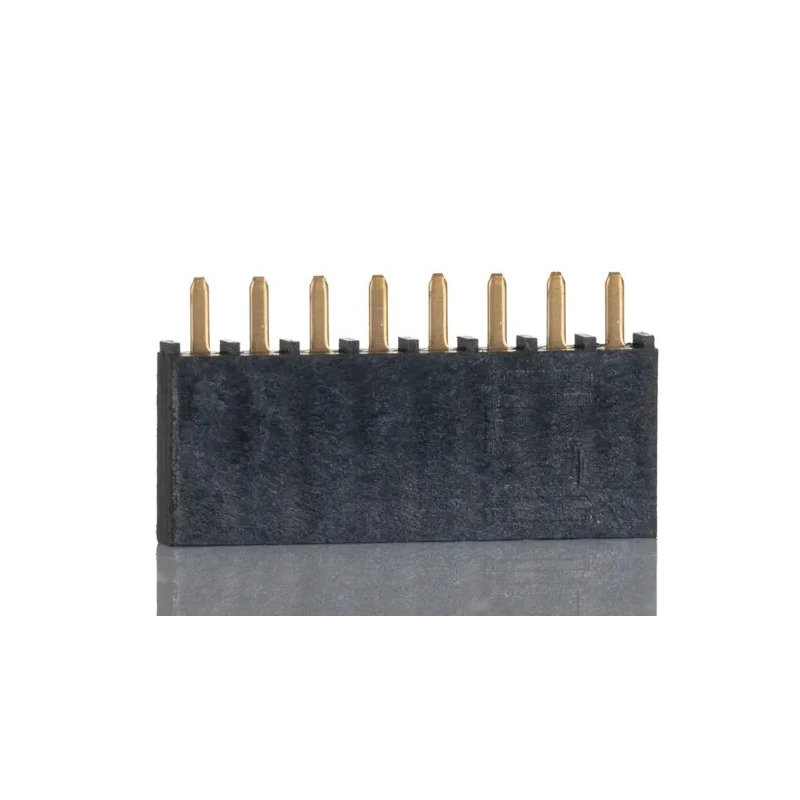

Samtec SSW Series Straight Through Hole PCB Socket 8-Contact 1 Row 2.54 mm Pitch Solder SSW-108-01-G-S

Samtec SSW-108-01-G-S PCB Socket is a high-quality electronic component designed for board-to-board connection applications that demand reliable electrical performance and robust mechanical stability. Featuring eight female phosphor bronze contacts with gold flash plating, this straight through-hole socket ensures excellent conductivity, corrosion resistance, and long-term durability. The device is engineered with a liquid crystal polymer housing that provides electrical insulation and mechanical protection in demanding industrial environments.

Delivering a current rating of 6.9A and suitable for operating voltages up to 550V, this 1-row, 8-contact socket supports multiple use cases within consumer electronics, transportation systems, and medical equipment. The component's 2.54 mm pitch contact spacing enhances safety by preventing electrical sparks during operation. Its through-hole mounting type offers secure mechanical fixation, particularly beneficial in systems exposed to vibration.

Designed to operate over a temperature range from -55°C to 125°C, the SSW-108-01-G-S ensures reliable performance under challenging environmental conditions. The low insertion force of 0.8N reduces assembly effort during manufacturing. With the ability to withstand up to 100 insertion and withdrawal cycles, this socket is suitable for maintenance and replacement scenarios.

High conductivity phosphor bronze contacts with gold flash plating. Through-hole mount for secure PCB attachment. 6.9 amp current rating for light to medium duty electrical loads. Wide operating temperature range from -55°C to 125°C.

Low insertion force of 0.8N enables efficient assembly. 2.54 mm pitch to prevent sparking and maintain signal integrity. Liquid crystal polymer housing for insulation and durability. Suitable for consumer electronics, transportation, and medical devices.

Rated for 100 insertion and withdrawal cycles for reliable reconnects.

This Samtec PCB socket is ideal for industrial, laboratory, consumer electronics, medical equipment, automotive, and manufacturing use cases requiring board-to-board reliable interconnection. Explore a range of electronic components and PCB connectors at EnvMart for comprehensive solutions.
