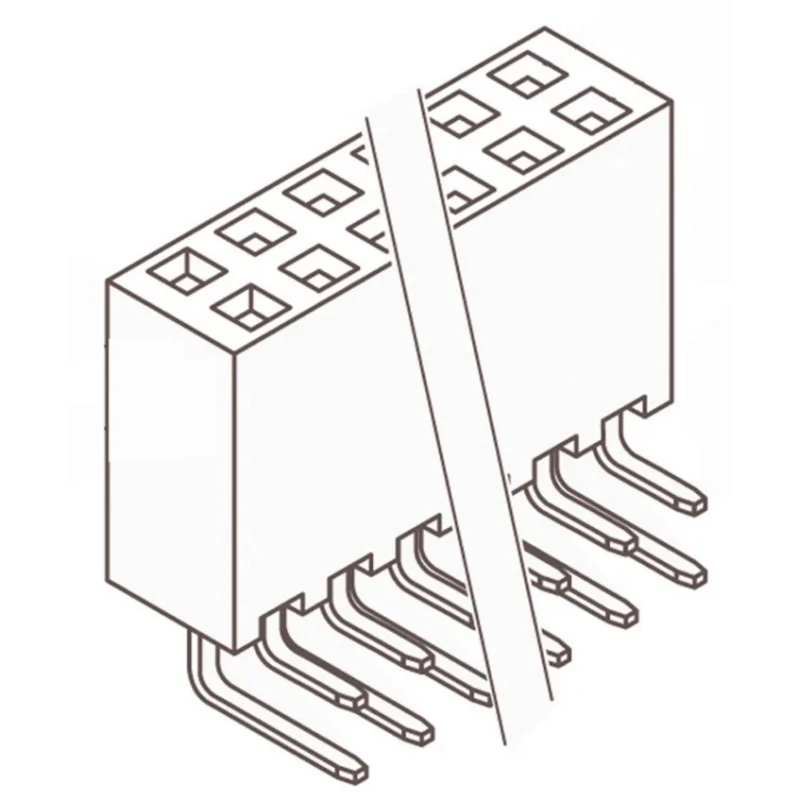

Samtec SSW Series Right Angle Through Hole PCB Socket, 18-Contact, 2 Row, 2.54 mm Pitch, 6.9A Current SSW-109-02-G-D-RA
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 6.9A |
| Model | SSW-109-02-G-D-RA |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Tin |
| Number of Contacts | 18 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
Key Features
- Features a right-angle orientation facilitating easy PCB mounting.
- Contains 18 female bronze contacts arranged in 2 rows.
- 2.54 mm pitch ensures precise component positioning.
- Supports a current rating of 6.9 A and voltage of 550 V.
- Made with liquid crystal polymer housing for durability and high temperature resistance.
- Gold over tin contact plating enhances conductivity and corrosion resistance.
- Designed for industrial automation and high-speed data transmission applications.
- Operates reliably within temperature ranges from -55°C to 125°C.
Product Description
Samtec SSW-109-02-G-D-RA is a Board-to-Board PCB Socket featuring a right-angle through-hole mount design with solder termination. The 18-contact female socket is arranged in 2 rows with a 2.54 mm pitch, engineered to support currents up to 6.9 A and voltage ratings of 550 V for robust electrical performance.
Constructed with a liquid crystal polymer housing and bronze contacts plated with gold over tin, this socket ensures superior conductivity, durability, and stable connections essential for industrial and commercial electronics applications.
The right-angle design simplifies PCB assembly and mounting while maintaining reliable signal transmission. Temperature tolerance from -55°C to 125°C makes it suitable for demanding environments and industrial automation systems.
Applications include power distribution systems, control panels, and high-speed data transmission devices requiring secure, high-quality board-to-board interfaces. Right-angle body orientation facilitates efficient PCB mounting.
18 female contacts made of bronze with gold over tin plating for enhanced reliability. 2.54 mm contact pitch provides precise connections. Liquid crystal polymer housing withstands high operating temperatures. Current and voltage ratings suitable for power and signal applications.
Operates reliably in industrial automation and electronic device environments. Ensures stable and secure solder termination connections.
This product belongs to the SSW series by Samtec, designed for seamless integration in board-to-board connector systems. For industrial, laboratory, electronics manufacturing, and power control applications, this socket offers a resilient and reliable solution.
Explore more high-quality PCB Sockets and connectors at EnvMart for your technical and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 6.9 A, making it suitable for various power and signal applications.
The voltage rating for this PCB socket is 550 V, ensuring robust electrical performance in various applications.
The contacts in this socket are arranged with a pitch of 2.54 mm, ensuring precise component positioning.
This unit features 18 female contacts, arranged in 2 rows, allowing for multiple connections in a compact design.
It operates reliably within a temperature range from -55°C to 125°C, making it suitable for demanding environments.
The housing is made of liquid crystal polymer, while the contacts are bronze plated with gold over tin for enhanced conductivity and corrosion resistance.
This PCB socket utilizes solder termination, ensuring stable and secure connections during assembly.
This model features a right-angle orientation, facilitating easy PCB mounting and assembly.
It is designed for industrial automation, power distribution systems, control panels, and high-speed data transmission devices.
The contacts are plated with gold over tin, which enhances conductivity and provides corrosion resistance.
This model is designed for through-hole mounting, which is common in PCB assembly.
It belongs to the SSW series by Samtec, which is designed for seamless integration in board-to-board connector systems.
