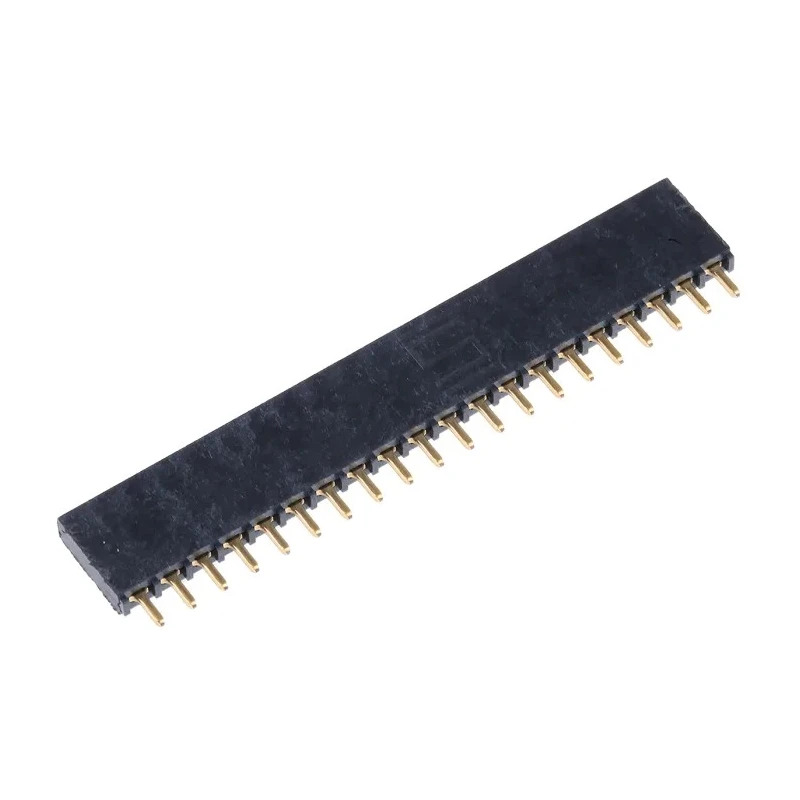

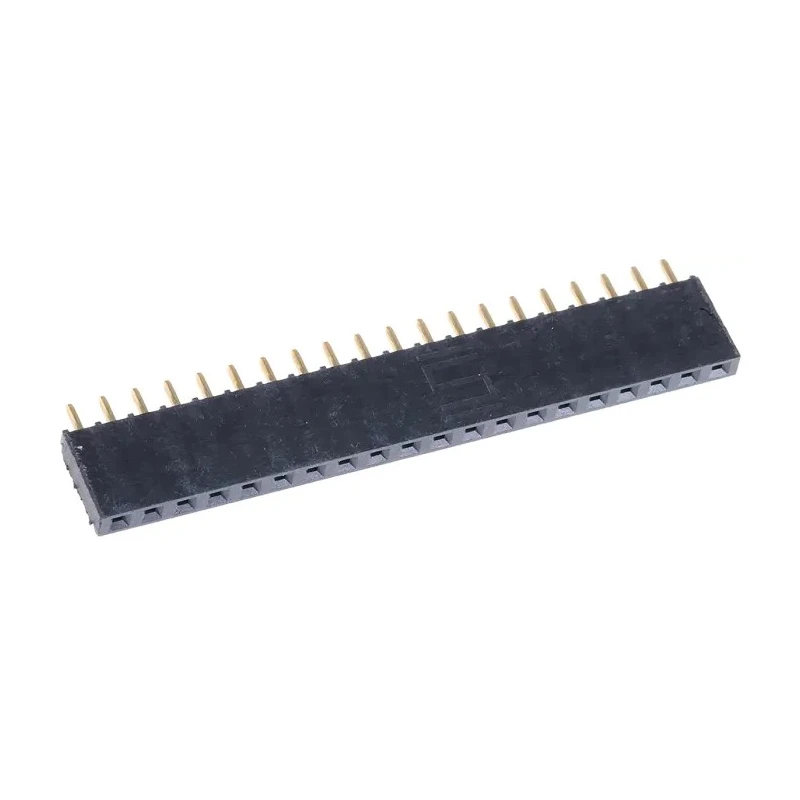

Samtec SSQ Series Straight Through Hole PCB Socket 20-Contact 1 Row 2.54 mm Pitch Solder SSQ-120-01-G-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7.6A |
| Model | SSQ-120-01-G-S |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSQ |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- This PCB socket has 20 contacts arranged in a single row with a 2.54 mm pitch.
- Designed for through hole mounting with a straight orientation on printed circuit boards.
- Constructed with a liquid crystal polymer housing and bronze contacts plated with gold for durability.
- Operates reliably in temperatures from -55°C to 125°C with a voltage rating of 550 V and current rating of 7.6 A.
- The socket features a female contact gender and is part of the SSQ series ensuring compatibility with Samtec headers.
- Ideal for industrial and electronic board-to-board connector applications requiring robust, high-quality sockets.
Product Description
Samtec SSQ-120-01-G-S is a high-quality straight through hole PCB socket designed for reliable board-to-board electrical connections. This 20-contact, single-row socket features a 2.54 mm pitch and solder termination type suitable for through hole mounting methods.
The housing is made of liquid crystal polymer providing excellent mechanical and thermal properties. Contacts are phosphor bronze with a 0.51 micrometer gold plating ensuring superior conductivity and durability under demanding conditions.
Operating temperature ranges from -55 to 125°C, making it compatible with a wide range of industrial and electronic applications. It supports a current of up to 7.6 A and voltage rating of 550 V.
Manufactured as part of the SSQ series, it matches perfectly with Samtec TSW and TSM series headers for flexible board-to-board configurations. This socket is designed for through hole PCB mounting with a straight orientation for easy assembly.
It features gold plated female contacts for long-lasting, reliable electrical performance. Compatible with standard 2.54 mm pitch connector systems common in industrial electronics. It withstands wide temperature variances, making it suitable for demanding environments.
The liquid crystal polymer insulator provides mechanical stability and insulation. The socket's 20-contact count in a single row supports a broad range of electronic circuit connections. Commonly used in industrial equipment, control systems, and electronic component manufacturing, this PCB socket enhances production quality and reliability.
Explore more PCB Sockets and connectors to find complementary components and optimize your electronic design with EnvMart’s full selection of power and signal connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this PCB socket is 2.54 mm.
The maximum voltage rating for the SSQ-120-01-G-S is 550 V.
This PCB socket has a current rating of 7.6 A.
The housing is made of liquid crystal polymer, while the contacts are made of bronze with gold plating.
The operating temperature range for the SSQ-120-01-G-S is from -55°C to 125°C.
This PCB socket features 20 contacts arranged in a single row.
It uses solder termination type suitable for through hole mounting.
The contacts in the SSQ-120-01-G-S are female.
This model is part of the SSQ series, ensuring compatibility with Samtec headers.
The orientation of this PCB socket is straight.
The country of origin for this model is India.
This PCB socket is commonly used in industrial equipment, control systems, and electronic component manufacturing.
