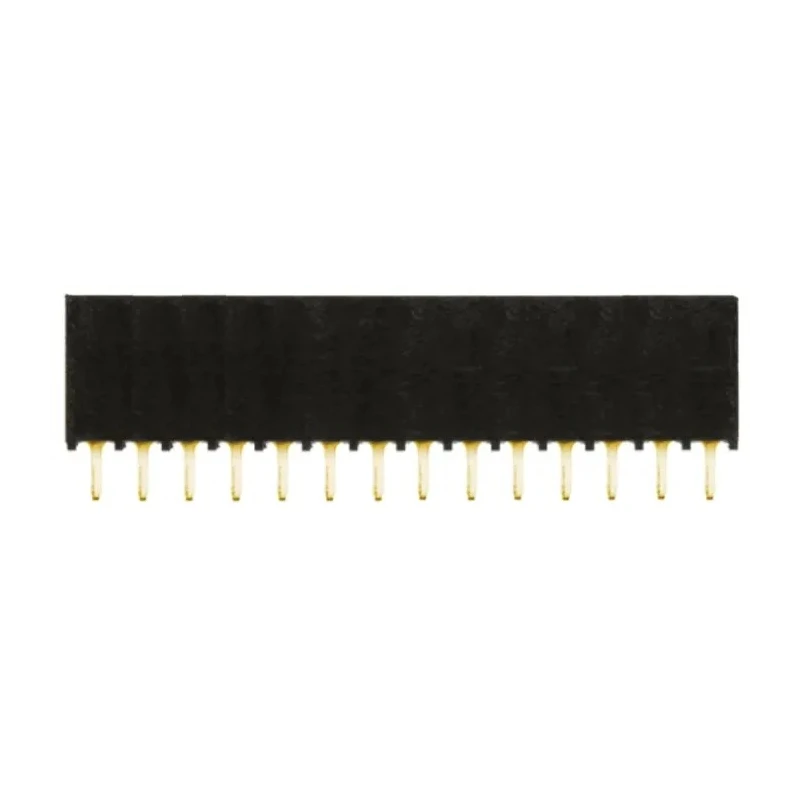

Samtec SSQ Series Straight Through Hole PCB Socket 14-Contact 1 Row 2.54 mm Pitch Solder SSQ-114-01-G-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7.6A |
| Model | SSQ-114-01-G-S |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSQ |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Constructed with liquid crystal polymer housing for durability.
- Phosphor bronze contacts with 0.51μm gold plating ensure reliable conductivity.
- Rated for 7.6A current and 550V voltage for robust performance.
- Supports operating temperature range from -55°C to 125°C suitable for diverse environments.
- Designed with female contact gender and straight orientation for board-to-board connection.
- Through hole mount type provides secure mechanical and electrical connection.
- Square post, square tailed socket strips compatible with mating headers in SSQ series.
- Ideal for industrial, electronics, and laboratory PCB applications.
Product Description
Samtec SSQ-114-01-G-S is a PCB socket designed as a straight through hole, 14-contact, 1-row board-to-board connector with a 2.54 mm pitch and solder termination. This connector features a black liquid crystal polymer housing that provides excellent durability and mechanical stability. The contacts are made of phosphor bronze with 0.51μm gold plating ensuring high conductivity and corrosion resistance.
The socket is rated for 7.6 amperes of current and can withstand a voltage up to 550 volts, making it suitable for demanding electronic assembly applications. Its operating temperature range from -55°C to 125°C allows for reliable performance in harsh industrial, laboratory, and manufacturing environments.
The through hole mounting style ensures strong mechanical fixing and electrical contact with the PCB. The female contact design with a straight orientation facilitates secure board-to-board connections. The SSQ series connectors include square post, square tailed socket strips designed to mate with compatible headers such as TSW and TSM series, enhancing modularity and ease of assembly.
This socket is commonly used in industrial controls, electronic instrumentation, communications equipment, and other applications requiring reliable PCB interconnections. The high-quality construction and adherence to SSQ series specifications ensure long-term durability and stable electrical performance.
Constructed with liquid crystal polymer housing for robustness. Phosphor bronze contacts with gold plating for excellent conductivity. Supports 7.6A current and 550V operating voltage rating. Wide operating temperature range from -55°C to 125°C.
Through hole mount type provides secure PCB attachment. Female contacts ensure reliable mating connections. Compatible with SSQ mating headers for flexible configurations. Ideal for industrial, laboratory, and manufacturing electronic assemblies.
Adheres to SSQ series standards assuring quality and interchangeability. Explore more PCB Sockets and connectors from the Samtec series at EnvMart for industrial and electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SSQ-114-01-G-S PCB socket is rated for a maximum current of 7.6 amperes.
This model has a voltage rating of 550 volts, making it suitable for various electronic applications.
It supports an operating temperature range from -55°C to 125°C, allowing for reliable performance in diverse environments.
The socket utilizes a through hole mounting type, providing secure mechanical and electrical connections to the PCB.
The housing is made of liquid crystal polymer, and the contacts are constructed from phosphor bronze with gold plating for enhanced conductivity.
This connector has a pitch size of 2.54 mm, which is standard for many PCB applications.
The SSQ-114-01-G-S features 14 contacts, designed for board-to-board connections.
It has a straight orientation, which facilitates easy installation and connection in PCB applications.
This model uses solder termination, ensuring a strong and reliable connection to the PCB.
This PCB socket is part of the SSQ series, which adheres to specific standards for compatibility and performance.
The SSQ-114-01-G-S features female contacts, designed for secure mating with compatible headers.
It is ideal for industrial controls, electronic instrumentation, and communications equipment, among other applications requiring reliable PCB interconnections.
