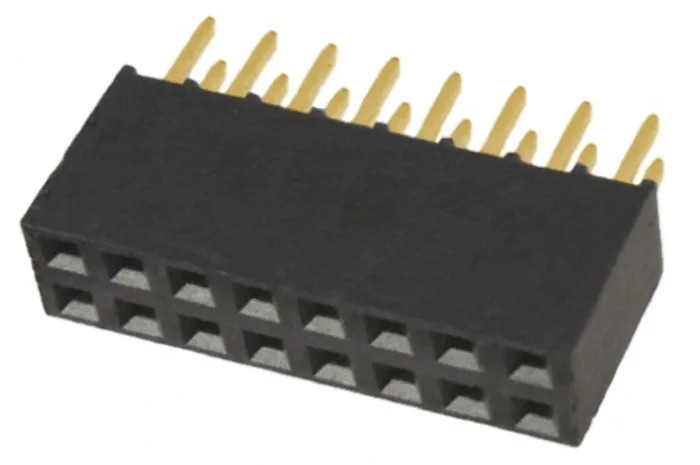

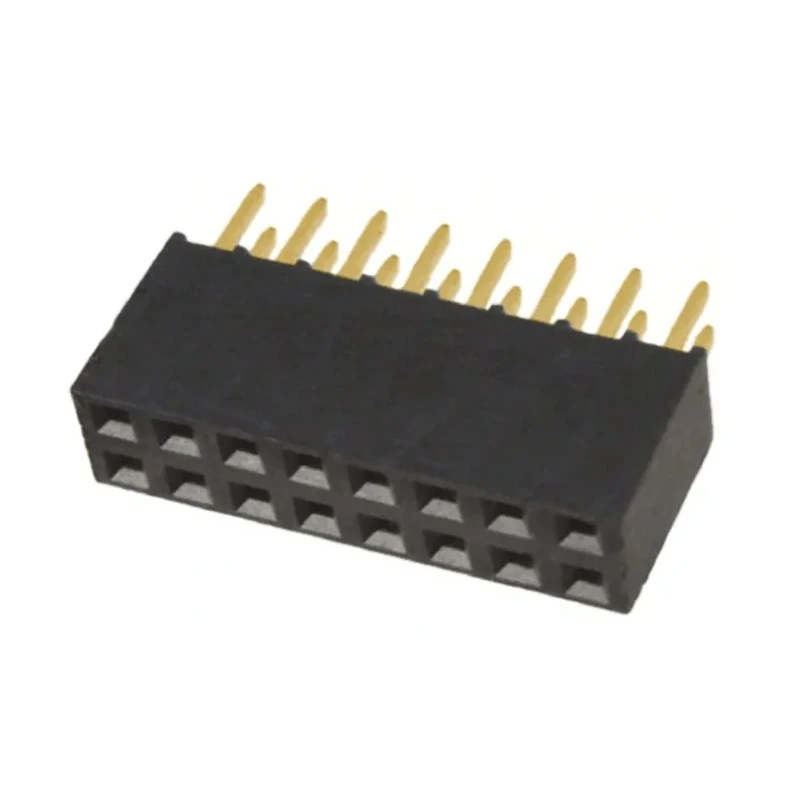

Samtec SSQ Series Straight Through Hole PCB Socket 16-Contact 2 Row 2.54 mm Pitch Solder SSQ-108-01-G-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7.6A |
| Model | SSQ-108-01-G-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSQ |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
Key Features
- Features 16 female contacts arranged in 2 rows for reliable electrical connection.
- Utilizes a 2.54 mm pitch with 2.5 mm row pitch for precise alignment.
- Constructed with liquid crystal polymer housing for high durability.
- Contacts made from phosphor bronze with 0.51μm gold plating for corrosion resistance.
- Operates at voltages up to 550V and currents up to 7.6A safely.
- Suitable for operating temperatures ranging from -55°C to 125°C.
- Mount type is through hole for secure PCB assembly.
- Designed with square post and straight orientation for compatibility with board-to-board headers.
Product Description
Samtec SSQ-108-01-G-D is a high-quality PCB socket from the SSQ Series featuring 16 female contacts across 2 rows with a 2.54 mm pitch. This through hole solder type socket is engineered for secure and reliable board-to-board connections in electronic assemblies.
The housing is made from black liquid crystal polymer offering excellent durability and resistance to thermal and mechanical stresses. Contacts are constructed from phosphor bronze material with a fine 0.51μm gold plating ensuring superior conductivity and corrosion protection.
It supports a maximum voltage rating of 550V and can safely conduct currents up to 7.6A, making it suitable for various industrial electronic applications. The operating temperature range extends from -55°C to 125°C, accommodating demanding environmental conditions.
The design features a straight orientation with square posts allowing compatibility with matching headers such as the TSW and TSM series. The 2.5 mm row pitch complements the 2.54 mm pitch spacing for precise PCB layout integration.
This socket strip is widely used in industrial, manufacturing, and electronic assembly applications where durable and precise board-to-board interconnections are essential. Features 16 female contacts arranged in 2 rows for reliable electrical connection.
Utilizes a 2.54 mm pitch with 2.5 mm row pitch for precise alignment. Constructed with liquid crystal polymer housing for high durability. Contacts made from phosphor bronze with 0.51μm gold plating for corrosion resistance.
Operates at voltages up to 550V and currents up to 7.6A safely. Suitable for operating temperatures ranging from -55°C to 125°C. Mount type is through hole for secure PCB assembly. Designed with square post and straight orientation for compatibility with board-to-board headers.
Meets industrial requirements for mating with compatible TSW and TSM series headers. Explore the Samtec SSQ Series PCB Sockets range at EnvMart for advanced connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a maximum voltage rating of 550V.
This model can safely conduct currents up to 7.6A.
The contacts are arranged with a pitch of 2.54 mm and a row pitch of 2.5 mm.
The housing is made from liquid crystal polymer, while the contacts are constructed from phosphor bronze with 0.51μm gold plating.
It is suitable for operating temperatures ranging from -55°C to 125°C.
This socket features 16 female contacts arranged in 2 rows.
It uses a solder termination type for secure connections.
The socket has a straight orientation with square posts.
It is designed for through hole mounting for secure PCB assembly.
It belongs to the Samtec SSQ Series.
Yes, it is designed for compatibility with board-to-board headers such as the TSW and TSM series.
The country of origin for this product is India.
