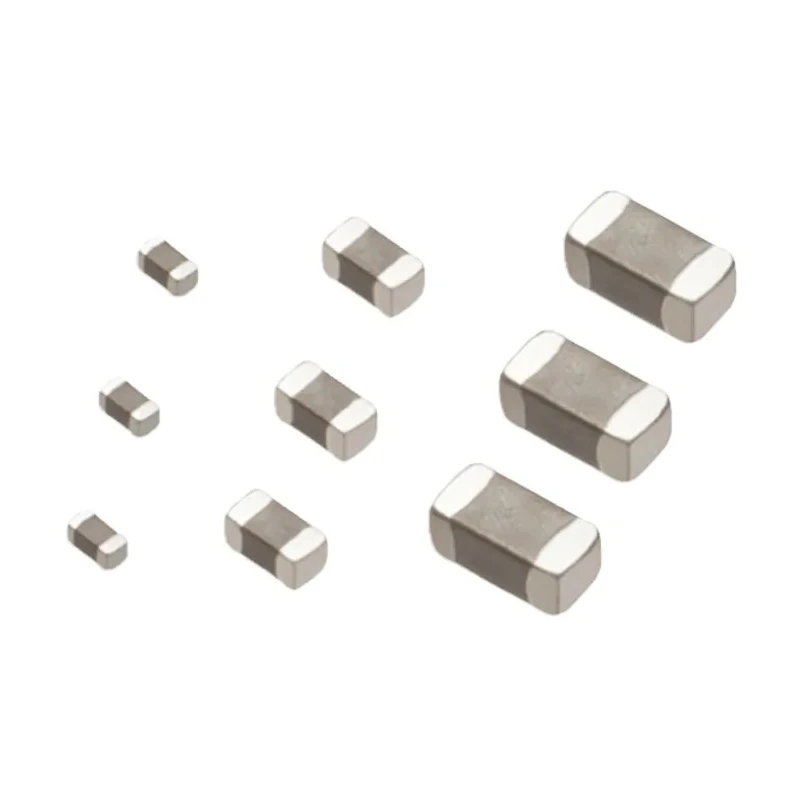

Panasonic Metal EXJZ Series Varistor 40V DC 5A 1.6mm x 0.8mm EZJZ1V650DA

Panasonic EZJZ1V650DA is a compact metal varistor from the EXJZ series, engineered to provide reliable transient voltage suppression with a maximum DC voltage rating of 40V and a maximum surge current of 5A. Measuring 1.6mm in length and 0.8mm in depth, it features a multilayer semiconductor ceramic construction ensuring effective electrostatic discharge (ESD) protection.

This varistor is bipolar, allowing installation without polarity concerns, and it offers ultra-low capacitance making it ideal for safeguarding high-speed signal circuits such as HDMI, USB 2.0, and IEEE1394 data buses commonly used in consumer electronics and telecommunications equipment.

Its lead-free terminal electrodes promote superior solderability, although they are designed to avoid exposure to flow soldering processes. The device meets rigorous RoHS environmental compliance and IEC61000-4-2 Level 4 standards for ESD resistance, enhancing durability and performance reliability in industrial and electronic applications.

The varistor operates effectively up to temperatures of 85°C and is manufactured in Japan, ensuring quality and precision. The EXJZ series is recognized for advanced semiconductor materials enabling robust transient suppression while maintaining signal integrity.

Constructed from advanced semiconductive ceramics for excellent ESD suppression. Bipolar multilayer varistor with no polarity requirement. Ultra low capacitance suited for high-speed signal lines. Lead-free terminal electrodes ensure excellent solderability but are unsuitable for flow soldering.

Designed to comply with RoHS and IEC61000-4-2 Level 4 standards for electrostatic resistance. Suitable for protecting HDMI, USB 2.0, and IEEE1394 high-speed data interfaces. Operating temperature up to 85 degrees Celsius.

Country of origin is Japan.

This Panasonic varistor is ideal for electronics manufacturing, industrial equipment protection, computer peripherals, and telecommunications infrastructure applications. It delivers dependable transient voltage suppression to protect sensitive electronic components and maintain system stability under electrostatic discharge events.

Discover the full range of Panasonic electronic components and Varistors at EnvMart, your trusted source for industrial and commercial electronic parts.
