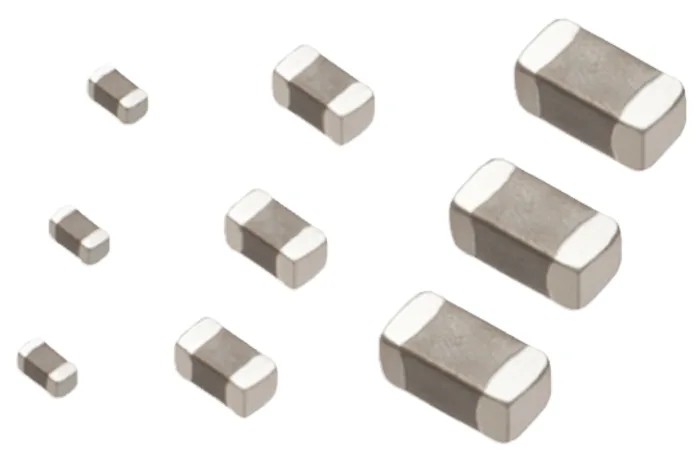

Panasonic EXJZ Series SMT Transient Suppressor Varistor 5V DC 1mm Length EZJZ0V500AA
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Length | 1mm |
| Model | EZJZ0V500AA |
| Depth | 0.5mm |
| Series | EXJZ |
| Maximum Operating Temperature | 85°C |
| Maximum dc Voltage | 5V dc |
| Standards/Approvals | RoHS |
Key Features
- This varistor uses advanced semiconductive ceramics for superior ESD suppression.
- It exhibits ultra low capacitance suitable for high-speed signal line protection.
- Bipolar multilayer construction allows replacement of one capacitor and two zener diodes.
- Compliant with IEC61000-4-2 Level 4 standard ensuring large electrostatic resistance.
- Lead-free terminal electrodes support great solderability but prohibit flow soldering.
- Designed with two arrays for multiple line protection in HDMI, USB 2.0, and IEEE1394 interfaces.
- The maximum operating temperature is rated at 85°C for reliable performance.
Product Description
Panasonic EZJZ0V500AA is an SMT transient suppressor varistor from the EXJZ Series designed for advanced electrostatic discharge (ESD) protection in sensitive electronic circuits. It features a maximum DC voltage rating of 5V, a compact length of 1mm and a depth of 0.5mm, making it an ideal component for high-speed signal line applications.
Constructed using advanced semiconductive ceramics, this multilayer varistor is bipolar, providing bidirectional voltage clamping that can replace multiple passive components, including one capacitor and two zener diodes, thus saving PCB space and improving circuit simplicity.
The varistor offers ultra low capacitance to minimize signal distortion and is compliant with IEC61000-4-2 Level 4 standards, ensuring robust electrostatic resistance during surge events. Lead-free terminal electrodes enhance solderability in surface mounting processes, although flow soldering techniques are to be avoided to maintain integrity.
With two arrays for protecting multiple lines simultaneously, this varistor is suitable for protecting HDMI high-speed data buses, USB 2.0 ports, and IEEE1394 interfaces against transient surges and ESD. Its maximum operating temperature of 85°C emphasizes its suitability for demanding electronic environments.
Applications include industrial electronics, consumer electronics, computer peripherals, and communication devices where effective surge protection is critical. This varistor uses advanced semiconductive ceramics for superior ESD suppression.
It exhibits ultra low capacitance suitable for high-speed signal line protection. Bipolar multilayer construction allows replacement of one capacitor and two zener diodes. Compliant with IEC61000-4-2 Level 4 standard ensuring large electrostatic resistance.
Lead-free terminal electrodes support great solderability but prohibit flow soldering. Designed with two arrays for multiple line protection in HDMI, USB 2.0, and IEEE1394 interfaces. The maximum operating temperature is rated at 85°C for reliable performance.
Explore the comprehensive range of Varistors and surge protection components at EnvMart for reliable electronic component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC voltage rating of this varistor is 5V.
This varistor has a length of 1mm and a depth of 0.5mm.
The maximum operating temperature is rated at 85°C.
It is compliant with the IEC61000-4-2 Level 4 standard, ensuring robust electrostatic resistance.
It features a bipolar multilayer construction that allows the replacement of one capacitor and two zener diodes.
It is suitable for protecting HDMI, USB 2.0, and IEEE1394 interfaces against transient surges and ESD.
This varistor is constructed using advanced semiconductive ceramics for superior ESD suppression.
The lead-free terminal electrodes support great solderability but prohibit flow soldering techniques.
It exhibits ultra low capacitance, which is suitable for high-speed signal line protection, minimizing signal distortion.
The country of origin for this varistor is Japan.
It is applicable in industrial electronics, consumer electronics, computer peripherals, and communication devices.
The two arrays are designed for multiple line protection, allowing simultaneous protection of multiple lines.
