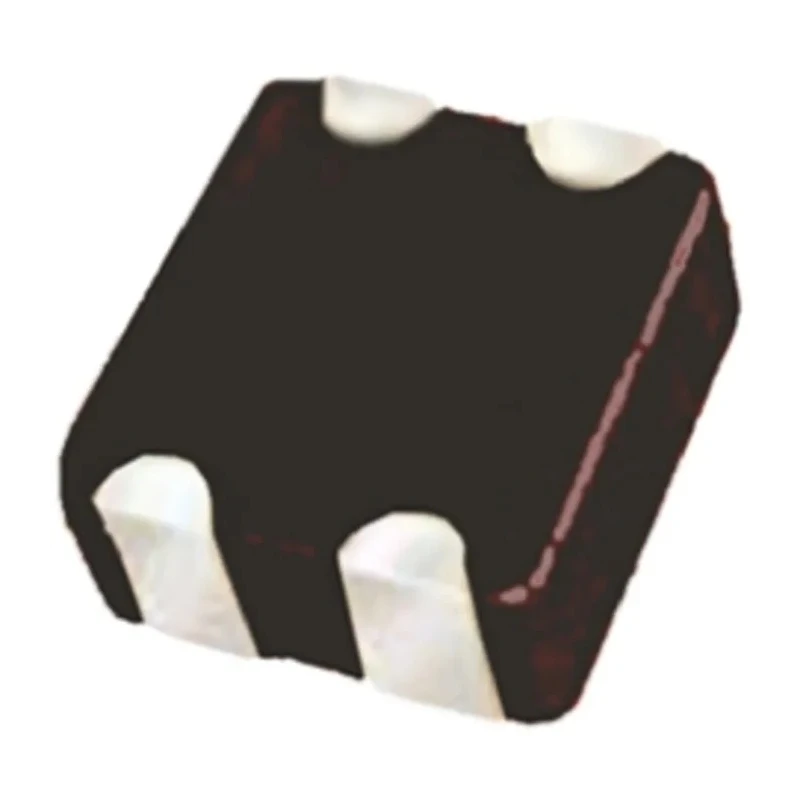

Panasonic Surface EMI Filter 160 mA 5V dc 100 MHz EXC24CE

Panasonic EXC24CE Surface EMI Filter model EXC24CE900U is engineered for effective suppression of electromagnetic interference in high-speed data line environments. With a maximum current rating of 160 mA and operating voltage of 5V DC, this filter operates reliably at a frequency of 100 MHz.

The compact SMD form factor with dimensions 1.25 mm length, 1 mm depth, and 0.5 mm height facilitates seamless integration onto printed circuit boards. Featuring a low DC resistance of 1.75Ω, it minimizes insertion loss while effectively filtering noise.

Designed for surface mounting, the device employs PC pin termination style and is supplied in tape & reel packaging, enhancing production efficiency through automated placement. It is suited for applications such as USB, LVDS, and HDMI interfaces found in computer peripherals, mobile phones, and display equipment.

Operating across a temperature range from -40°C to 85°C, the filter maintains performance under diverse environmental conditions. Manufactured in Japan, the product meets stringent quality expectations.

Compact surface mount design for easy PCB integration. Supports high-speed data line noise filtering applications. Low DC resistance of 1.75Ω ensures minimal power loss. Wide operating temperature range from -40°C to 85°C.

Available in tape & reel packaging for automated assembly. Termination style is PC Pin suitable for stable connections. Designed for applications including USB, LVDS, and HDMI lines. Manufactured in Japan ensuring high-quality standards.

This EMI filter is ideal for industrial, electronics manufacturing, telecommunications, and consumer electronics applications where noise suppression is critical. Discover a wide range of EMI Filters for high-performance electronic component needs at EnvMart.
