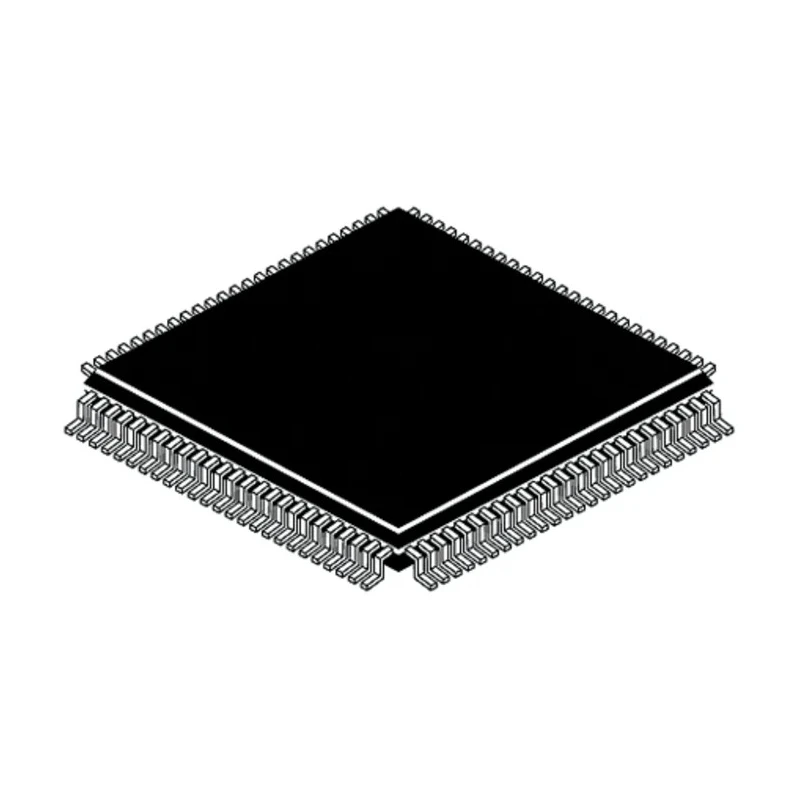

Texas Instruments Transmitter IC 8 CMOS, TTL LVDS, 100-Pin TQFP DS90C387AVJD/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.05mm |
| Length | 14mm |
| Model | DS90C387AVJD/NOPB |
| Mount Type | Surface |
| Output type | LVDS |
| Series | DS90C387A |
| Input Type | CMOS, TTL |
| Maximum Operating Temperature | 70°C |
| Package Type | TQFP |
| Sub Type | Transmitter |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 100 |
| Number of Elements per Chip | 8 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 8 |
| Number of Receivers | 8 |
| Transmission Data Rate | 672Mbps |
| Differential Input High Threshold Voltage | 100mV |
| Differential Input Low Threshold Voltage | -100mV |
Key Features
- This LVDS transmitter supports 672 Mbps data transmission rate.
- Equipped with 8 drivers and 8 receivers facilitating differential signaling.
- Operates with a minimum supply voltage of 3 V and maximum of 3.6 V for low power usage.
- Has a surface mount type and complies with RoHS standards.
- Functions within a temperature range of -10°C to 70°C, suitable for demanding industrial environments.
- Offers PLL transmitter data clock and complies with TIA/EIA-644 LVDS standards.
- Has robust ESD protection ensuring reliability during handling and use.
Product Description
Texas Instruments DS90C387AVJD/NOPB is a high-performance transmitter IC designed for industrial and electronic applications requiring robust data transmission capabilities.
The device features 8 CMOS and TTL inputs configured as drivers and receivers, producing LVDS output suitable for high-speed communication protocols such as Firewire, SATA, and SCSI.
Encased in a 100-pin TQFP package with surface mount technology, this transmitter IC supports a transmission data rate of 672 Mbps, making it well suited for Flat Panel Display links operating at frequencies of 65 MHz and 85 MHz.
Designed for 3.3V low-power operation, the IC includes a PLL transmitter data clock facilitating synchronized signal transfer and ensures compatibility with TIA/EIA-644 LVDS standards for differential signaling.
It features differential input thresholds of 100mV (high) and -100mV (low), and supports operational temperatures ranging from -10°C to 70°C, making it suitable for various industrial, commercial, and laboratory environments.
The device is RoHS compliant and incorporates ESD protection to enhance longevity and reliability during manufacturing and use. This transmitter IC is a key component in electronic equipment requiring efficient and reliable signal transmission over twisted-pair copper cables.
This LVDS transmitter supports 672 Mbps data transmission rate. Equipped with 8 drivers and 8 receivers facilitating differential signaling. Operates with a minimum supply voltage of 3 V and maximum of 3.6 V for low power usage.
Has a surface mount type and complies with RoHS standards. Functions within a temperature range of -10°C to 70°C, suitable for demanding industrial environments. Offers PLL transmitter data clock and complies with TIA/EIA-644 LVDS standards.
Has robust ESD protection ensuring reliability during handling and use.
Ideal for use in industrial machines, laboratory instrumentation, and commercial electronic devices, this transmitter IC contributes to enhanced production efficiency and signal integrity.
Explore more Texas Instruments electronic components and interface ICs on EnvMart for reliable industrial and laboratory applications.
Explore more products in our LVDS Interface Ics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The transmitter IC supports a maximum data transmission rate of 672 Mbps.
This model operates within a temperature range of -10°C to 70°C, making it suitable for various industrial environments.
It features 8 drivers and 8 receivers, facilitating differential signaling.
The IC operates with a minimum supply voltage of 3 V and a maximum of 3.6 V.
This model is encased in a 100-pin TQFP package with surface mount technology.
Yes, it complies with RoHS standards and TIA/EIA-644 LVDS standards for differential signaling.
The differential input high threshold voltage is 100mV, and the low threshold voltage is -100mV.
It supports CMOS and TTL input types.
The height of this IC is 1.05 mm.
It is suitable for use in industrial machines, laboratory instrumentation, and commercial electronic devices.
It incorporates robust ESD protection, enhancing reliability during handling and use.
The country of origin for this transmitter IC is India.
