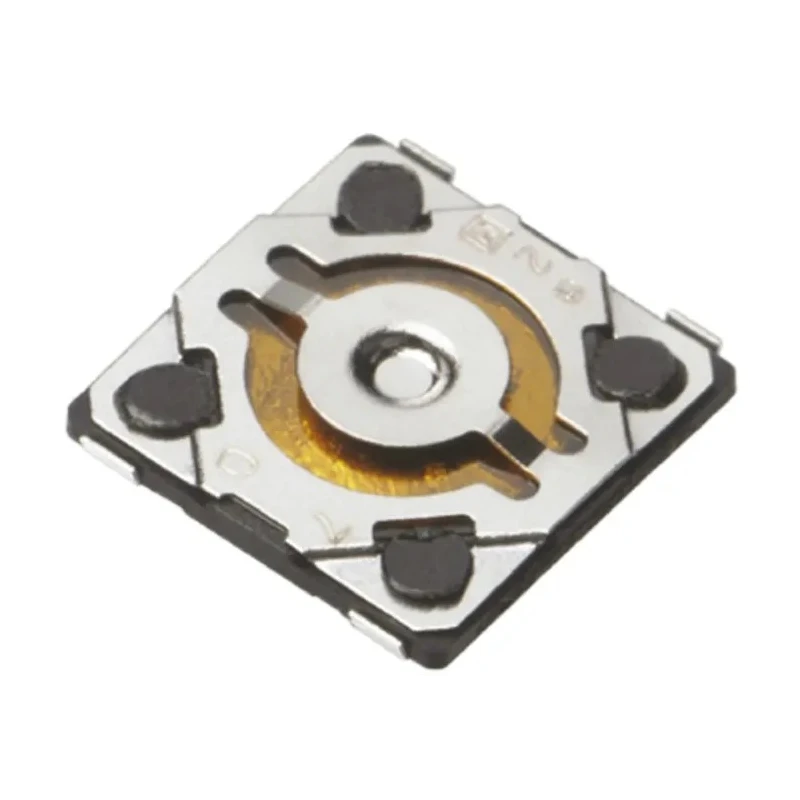

Panasonic Tactile Switch Push Plate 0.58 mm SPST 20mA 15 V dc Surface Mount EVQP6LB55
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 0.58mm |
| Length | 4.1mm |
| Model | EVQP6LB55 |
| Width | 4.1mm |
| Mount Type | Surface |
| Series | EVQP6 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Length | 0.58mm |
| Contact DC Voltage | 15V dc |
| Actuator Style | Push Plate |
| Switch Contact Current | 20mA |
| Operating Force | 1.6N |
| Mechanical Life | 1000000Cycles |
Key Features
- The switch features a momentary operation with a push plate actuator style.
- Compact dimensions of 4.1 mm length and width with a height of 0.58 mm.
- Operates reliably between -20°C to 70°C temperature range.
- Designed for surface mounting with a mechanical life of 1,000,000 cycles.
- It provides a tactile, sharp, and reassuring click feel with low contact resistance.
- Suitable for small current applications up to 20mA at 15 V dc.
- RoHS compliant, ensuring environmental safety and conformance.
- Operating force required is 1.6 N for actuation.
Product Description
Panasonic EVQP6LB55 tactile switch push plate is a surface mount momentary switch with a 0.58 mm actuator length designed for low current applications. It features a single pole single throw (SPST) contact configuration rated for 20mA 15 V dc operation, providing reliable switching performance in compact electronic devices.
With length and width of 4.1 mm and a slim height of 0.58 mm, this tactile switch offers a small form factor perfect for dense circuit board layouts. Its push plate actuator style delivers a sharp, clear tactile click for user feedback and low contact resistance ensures minimal signal loss.
The switch supports operating temperatures from -20°C to 70°C and is built to withstand a mechanical life of 1,000,000 cycles, making it suitable for demanding industrial, laboratory, and commercial applications in electrical automation, instrumentation, and control systems.
Compliant with RoHS standards, the EVQP6LB55 promotes environmentally safe manufacturing and disposal. Its operating force of 1.6 N provides a comfortable tactile response without excessive pressure.
The compact dimension and surface mount terminal type enable easy integration into SMT assembly processes. The switch’s stable contact arrangement and momentary action are ideal for user interface buttons, keypads, and control panels.
It is utilized extensively in electronics manufacturing for equipment requiring precise low voltage switching. The EVQP6 series is renowned for its reliability, distinct tactile feedback, and durability in industrial electronic controls.
Perfect for applications in electrical, automation, and control gear industries. Explore more Tactile Switch solutions at EnvMart, including complementary keypad and push button switches from leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range for this model is from -20°C to 70°C.
This tactile switch features a single pole single throw (SPST) contact configuration.
The switch is rated for a maximum current of 20mA.
The actuator style of this tactile switch is a push plate.
It has a mechanical life rated for 1,000,000 cycles.
The dimensions of this model are 4.1 mm in length and width, with a height of 0.58 mm.
The required operating force for actuation is 1.6 N.
Yes, it is RoHS compliant, ensuring environmental safety and conformance.
This model is designed for surface mounting.
The contact voltage rating for this switch is 15 V dc.
It is suitable for small current applications in electronics manufacturing, including user interface buttons and control panels.
This model belongs to the EVQP6 series.
