Tektronix Differential Oscilloscope Probe THD Series , 100 MHz Bandwidth, 1:100 and 1:1000 Attenuation, BNC THDP0100

Tektronix THDP0100 differential oscilloscope probe from the THD Series offers high precision differential voltage measurement capabilities with a 100 MHz bandwidth and selectable attenuation ratios of 1:100 and 1:1000. This probe features a BNC connector interface compatible with a wide range of oscilloscopes and test equipment.

Designed to handle floating voltages safely, it can measure maximum common mode input voltages up to ±6000 V, making it suitable for high voltage applications in industrial, laboratory, and research environments. The input impedance is optimally designed at 40 MΩ with a capacitance of approximately 12.5 pF, ensuring high fidelity signal acquisition without significant loading on the tested circuits.

The probe includes an over-range visual and audible indicator that alerts the user if the linear range of the probe is exceeded, enhancing measurement safety and accuracy. Rise time is rated at 3.5 ns, enabling the capture of fast transient signals with minimal distortion.

Its safety certification includes compliance with CAT I 2300 V and CAT III 1000 V ratings, as well as CE, ISO 14001, and ISO 9001 standards. The probe cable length is 1.5 meters, providing ample reach while maintaining signal integrity.

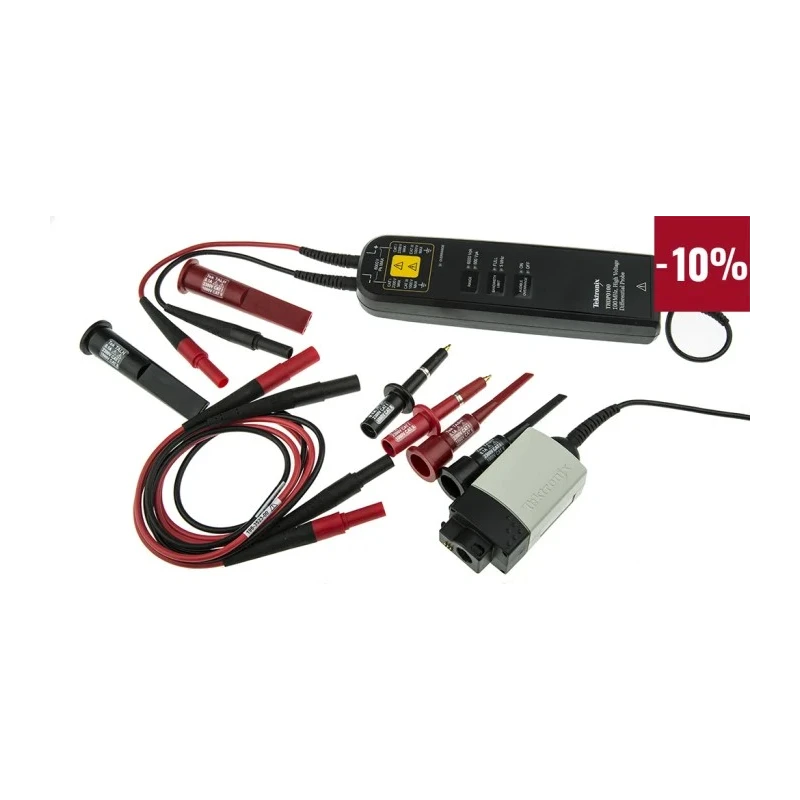

This model is supplied complete with two probe heads, two large hook clips, and two small hook clips, allowing users to adapt to various measurement setups quickly.

Applications for the THDP0100 include floating measurements, switching power supply design, motor drive diagnostics, electronic ballast testing, CRT display testing, power converters, and power device evaluation tasks.

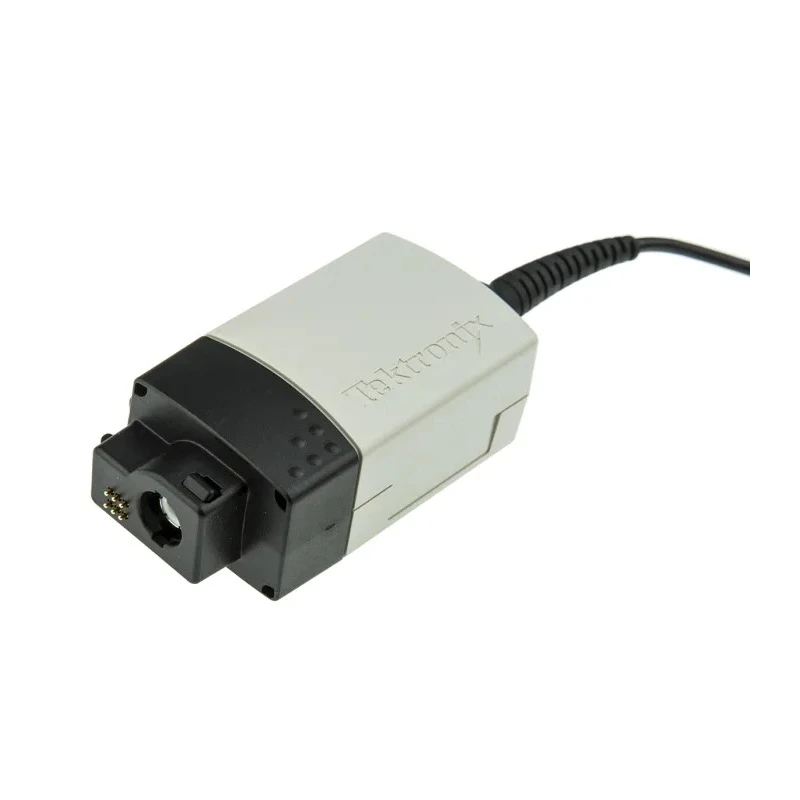

Tektronix’s THD Series differential probes integrate TekVPI interface technology for smart communication between the probe and compatible oscilloscopes, facilitating intuitive setup and operation.

For detailed technical documentation and usage guidelines, users can refer to Tektronix’s official resources. This probe is an essential instrument for professionals requiring reliable and accurate differential voltage measurements in demanding environments.

Explore the wide range of Tektronix oscilloscopes and accessories available at EnvMart to complement this precision probe and enhance your test bench capabilities. This probe supports bandwidths up to 100 MHz ensuring precise signal representation.

Features selectable attenuation of 1:100 and 1:1000 for versatile measurement ranges. Designed to safely measure floating voltages up to ±6000 V common mode voltage. Includes over-range visual and audible indicator to prevent measurement errors.

Equipped with high input impedance of 40 MΩ and low capacitance for minimal circuit loading. Compatible with BNC connectors for secure and reliable connection. Supplied with two probe heads and sets of large and small hook clips for flexible application.

Certified to meet CE, ISO 14001, ISO 9001 standards ensuring safety and quality. Compact 1.5 m cable length optimizes workspace and maneuverability. EnvMart offers a comprehensive range of high quality Oscilloscope Probes and testing instruments to suit various industrial and laboratory needs.
