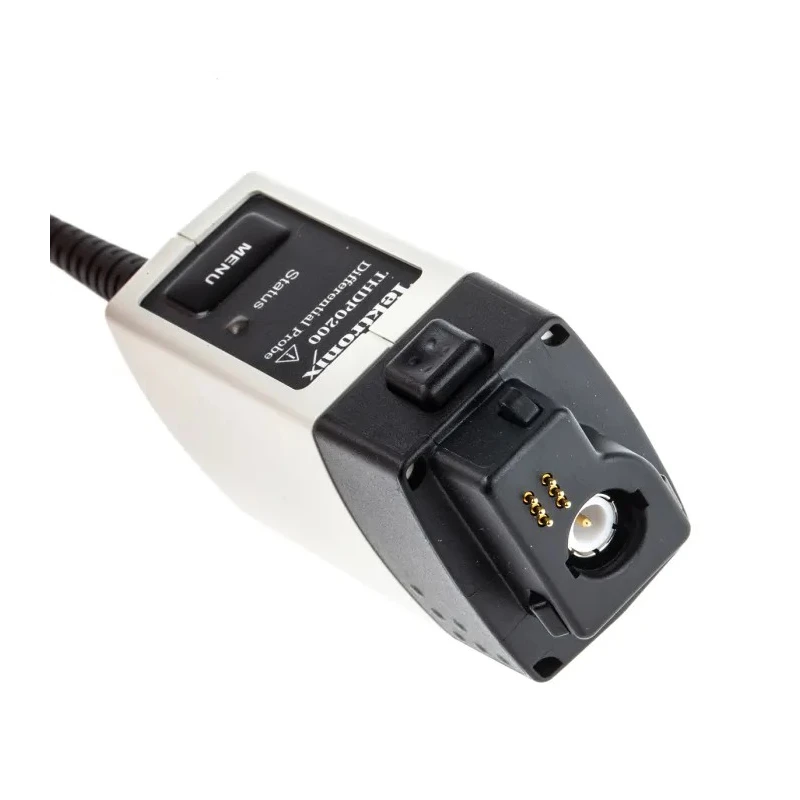

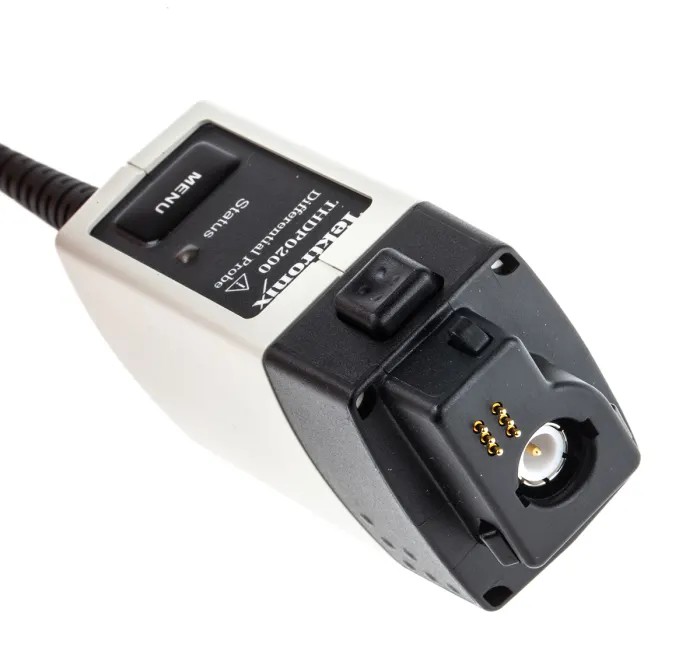

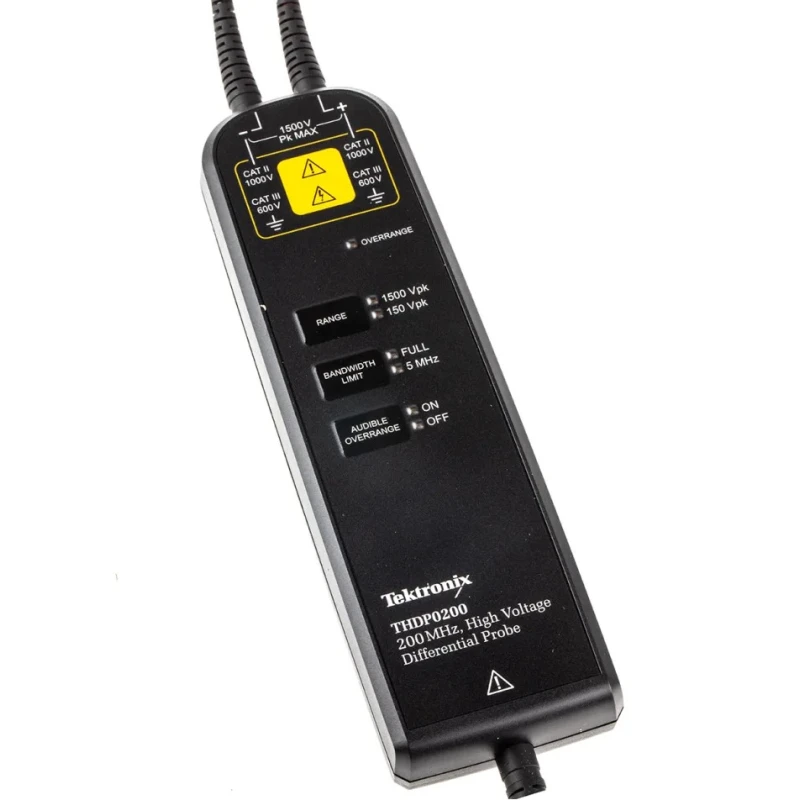

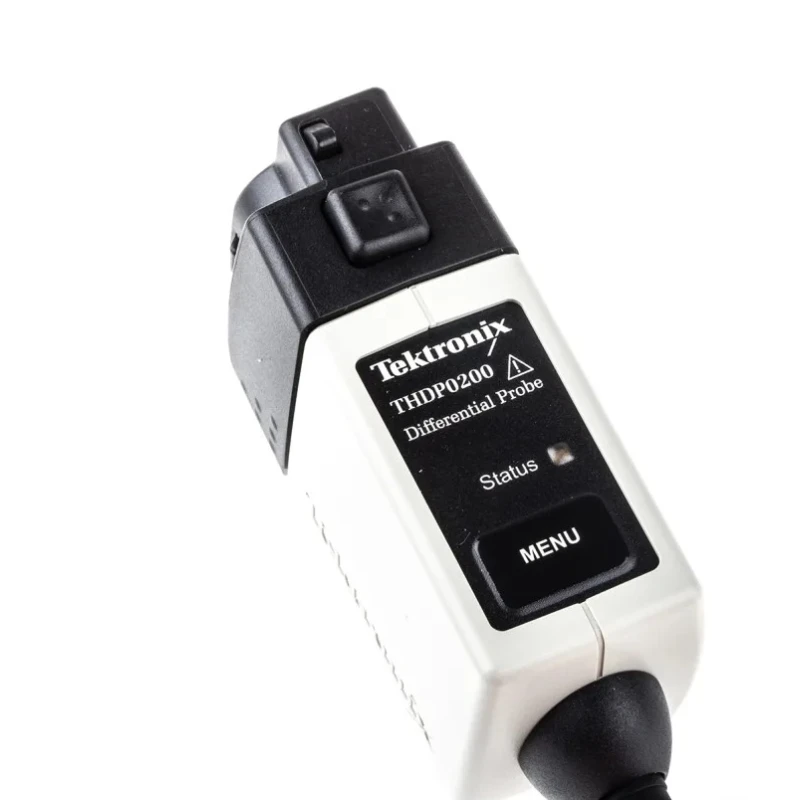

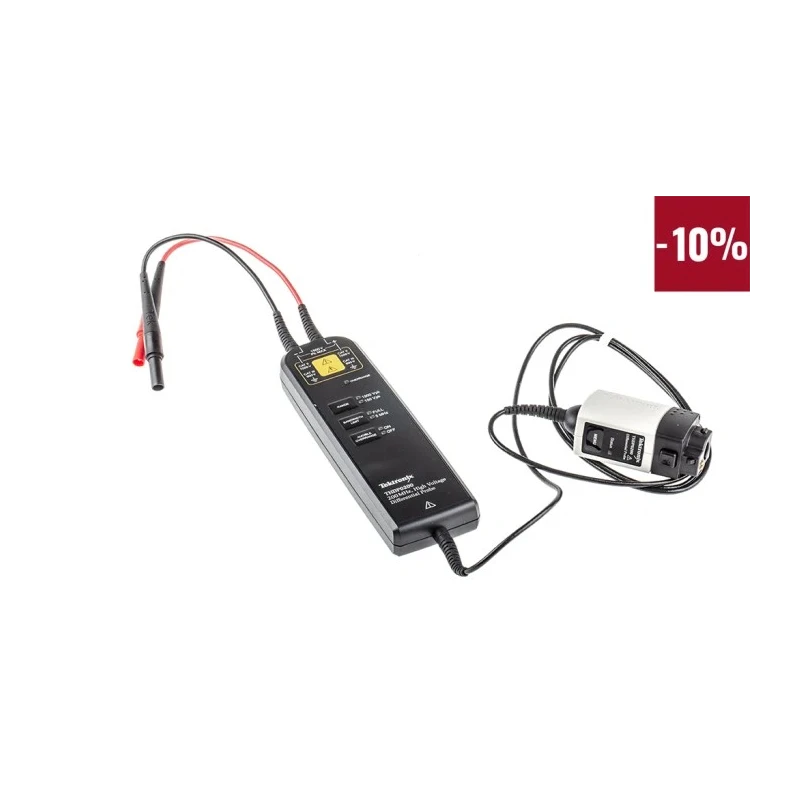

Tektronix High Voltage Differential Oscilloscope Probe, 200 MHz Bandwidth, BNC Connector THDP0200
Specifications
| Country of Origin | China |
|---|---|
| Brand | Tektronix |
| Model | THDP0200 |
| Connector Type | BNC |
| Bandwidth | 200MHz |
| Series | THD |
| Probe type | Differential, High Voltage |
| Rise Time | 1.8ps |
| Standards/Approvals | ISO 14001, CE, ISO 9001 |
| Safety Category Level | CAT II, CAT III |
| Safety Category Voltage | 1kV |
| Maximum Common Mode Input Voltage | 1.5kV |
| Tektronix THD Series THDP0100 Oscilloscope Probe, Differential Type, 100 MHz, 1 | 100, 1:1000, BNC ConnectorBrand: Tektronix |
Key Features
- The probe supports bandwidth up to 200 MHz and a maximum common mode input voltage of 1.5 kV.
- Equipped with a BNC connector for reliable and secure oscilloscope connection.
- Designed with a rise time of 1.8 ps to capture fast signal changes accurately.
- Features safety categories CAT II (1 kV) and CAT III (600 V) for operator protection during measurements.
- Includes wide compensation range from 7 pF to 30 pF for matching different oscilloscopes.
- Supports applications such as floating measurements, switching power supply design, motor drive design, and power converter evaluation.
- Implements TekVPI interface enabling smart communication and easy control access between oscilloscope and probe.
- Certified with ISO 14001, CE, and ISO 9001 standards ensuring quality and safety compliance.
Product Description
Tektronix THDP0200 is a high voltage differential oscilloscope probe featuring a 200 MHz bandwidth and a BNC connector. It is engineered for precise and safe measurement of differential voltages up to ±1500 volts, making it ideal for demanding industrial and laboratory environments.
This active differential probe is used extensively in IGBT circuits, motor drives, power converters, and other high-voltage electronic designs. Its fast rise time of 1.8 ps allows accurate capture of transient signals and sharp waveform changes, essential for advanced electronic diagnostics.
The probe safely measures high voltages with compliance to CAT II (1 kV) and CAT III (600 V) safety standards. It offers a wide compensation range (7 pF to 30 pF), ensuring compatibility and optimal performance with various oscilloscopes. Additionally, it features switchable attenuation ratios and bandwidth limit functionality for versatile measurement setups.
The THDP0200 utilizes Tektronix's TekVPI® interface, allowing smart communication with compatible oscilloscopes to provide real-time probe status and easy access to setup controls directly on the probe housing. Its construction adheres to rigorous quality certifications ISO 14001, CE, and ISO 9001, ensuring reliable and safe operation.
Bandwidth up to 200 MHz ensures high-frequency signal measurement. Maximum common mode voltage of ±1.5 kV for robust differential voltage testing. BNC connector provides stable and secure oscilloscope attachment. Rise time of 1.8 ps captures fast electrical transients.
Safety certification for CAT II 1 kV and CAT III 600 V for operator protection. Wide compensation range of 7 pF to 30 pF for flexible oscilloscope compatibility. TekVPI interface enables seamless oscilloscope-probe communication.
Suitable for industrial-scale testing in power electronics, switching power supplies, motor controllers, electronic ballasts, CRT display design, and general power converter service and evaluation. This probe is a reliable component in laboratories, manufacturing quality control, and field service engineering.
Explore Tektronix products and Oscilloscope Probe solutions at EnvMart for precise, innovative measurement tools.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Tektronix THDP0200 probe supports a bandwidth of 200 MHz, allowing for high-frequency signal measurement.
This model has a maximum common mode input voltage of ±1.5 kV, making it suitable for robust differential voltage testing.
The probe is equipped with a BNC connector, ensuring a reliable and secure connection to oscilloscopes.
The rise time of this probe is 1.8 ps, which allows for accurate capture of fast electrical transients and sharp waveform changes.
It complies with safety categories CAT II (1 kV) and CAT III (600 V), providing operator protection during measurements.
The THDP0200 features a wide compensation range from 7 pF to 30 pF, ensuring compatibility with various oscilloscopes.
This probe is suitable for applications such as floating measurements, switching power supply design, motor drive design, and power converter evaluation.
The probe is certified with ISO 14001, CE, and ISO 9001 standards, ensuring quality and safety compliance.
The TekVPI interface allows for smart communication with compatible oscilloscopes, providing real-time probe status and easy access to setup controls.
This model is a high voltage differential probe, specifically designed for precise measurement of differential voltages.
The THDP0200 belongs to the Tektronix THD series, which includes high voltage differential probes.
The Tektronix THDP0200 probe is manufactured in China.
