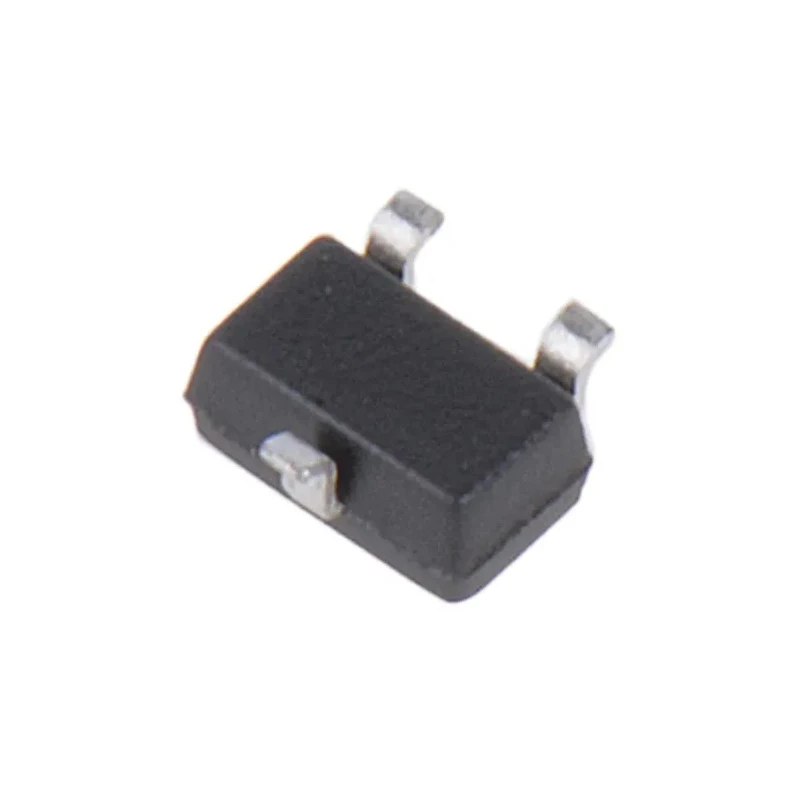

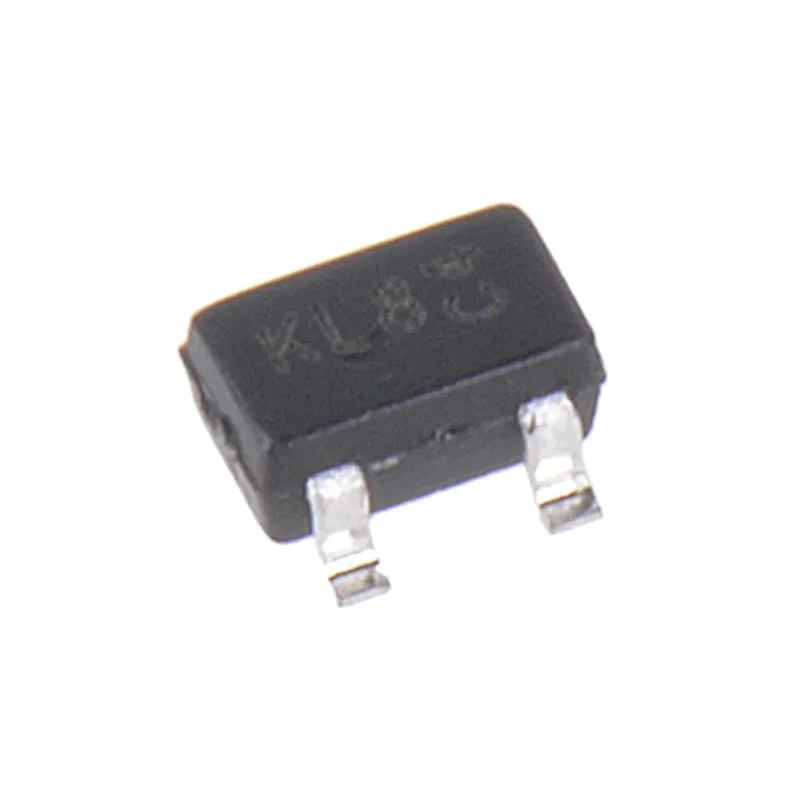

DiodesZetex 30 V 200 mA Surface Mount Schottky Diode Switching 3-Pin SC-70 BAT54SW-7-F

DiodesZetex BAT54SW-7-F is a high-performance Schottky diode designed for switching applications with a peak reverse voltage of 30 V and a maximum continuous forward current of 200 mA. It comes in a compact 3-pin SC-70 surface mount package measuring 2.2 mm by 1.35 mm with 1 mm height, making it ideal for space constrained electronic circuits.

The diode features a low maximum forward voltage of 1 V and a peak reverse recovery time of 5 ns which enhances efficiency in power switching and rectification roles. Operating temperature ranges from -65°C up to 125°C, providing suitability for industrial and commercial electronics requiring stable performance across a wide temperature range.

This semiconductor device uses Schottky Barrier technology, offering improved thermal stability and reliability compared to standard PN junction diodes. It has a peak non-repetitive forward surge current of 600 mA which ensures resilience against transient conditions.

The BAT54SW series diode includes a 3-pin series diode configuration, designed specifically for switching and rectifier functions in electronic circuits. It does not conform to automotive or other special standards but is compliant with typical industrial requirements.

Designed for surface mounting in compact electronic assemblies. Maximum continuous forward current of 200 mA ensures reliable operation. Peak reverse repetitive voltage rating of 30 V prevents reverse damage. Features a fast peak reverse recovery time of 5 ns for efficient switching.

Compact physical dimensions: 2.2 mm length, 1.35 mm width, 1 mm height. Operates within temperature range from -65°C to 125°C for robust application use. Peak non-repetitive forward surge current rating of 600 mA for transient tolerance.

Low maximum forward voltage of 1 V minimizes power dissipation. Pin count of 3 with a series diode configuration optimized for switching applications. High reliability Schottky Barrier diode technology offering thermal stability.

This diode is suitable for use in industrial, telecommunications, power supplies, and general electronic switching circuits. Its surface mount package and small footprint facilitate integration in modern PCB designs. Explore the full range of semiconductor diodes and rectifiers at EnvMart for comprehensive industrial and electronic applications.
