Weidmüller Distribution Block 2 Way 1 kV AC 1kV DC 300A Grey 1561770000

Free Delivery in India | Lowest Global Shipping Charges

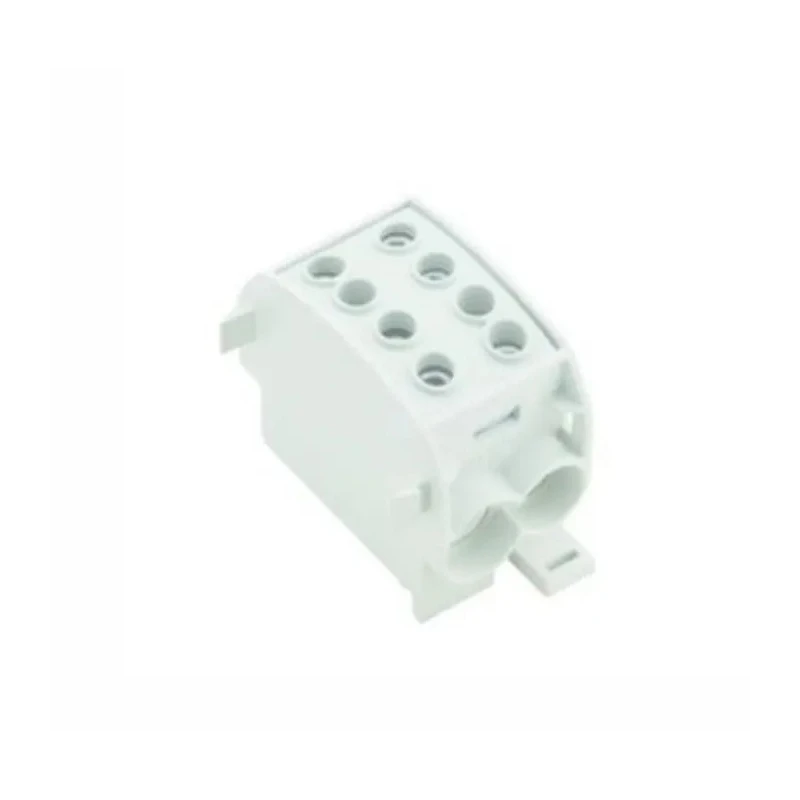

Weidmüller Distribution Block 2 Way 1 kV AC 1kV DC 300A Grey 1561770000

Name: Weidmüller Distribution Block 2 Way 1 kV AC 1kV DC 300A Grey 1561770000
Brand: Weidmuller
SKU: 208836
Price: 50.93 USD
Availability: InStock



Category Distribution Blocks Brand Weidmuller Condition New

Specifications

Country of Origin	Germany
Voltage	1, 1kV ac
Brand	Weidmüller
Colour	Grey
Current	300A
Height	63mm
Length	32.9mm
Number Of Ways	2
Width	53.1mm
Housing Material	Wemid
Series	W
Maximum Operating Temperature	130°C
Minimum Operating Temperature	-50°C
Termination Type - Line Side	Screw
Wire Size - Line Side	8 AWG

Key Features

Constructed with Wemid housing material for enhanced safety and durability.
Screw type termination on both line and load sides to ensure secure connections.
Operable within a temperature range from -50°C to 130°C for versatile environmental applications.
Designed to accommodate 8 AWG wire size on the line side for reliable current flow.
Compact dimensions of 63mm height, 53.1mm width, and 32.9mm length save panel space.
Features two ways for efficient electricity distribution in electrical panels.
Ideal for industrial, commercial, and electrical power distribution applications.

Product Description

Weidmüller 1561770000 Distribution Block is a 2 way electrical distribution terminal block designed to handle 1 kV AC and 1 kV DC voltages with a current rating of 300A. Its Wemid housing material provides excellent insulation and safety suitable for harsh electrical environments.

The product incorporates screw termination types on both line and load sides ensuring secure and reliable electrical connections. It supports an 8 AWG wire size on the line side, making it suitable for medium current wiring applications.

With a compact footprint measuring 63mm in height, 53.1mm in width, and 32.9mm in length, this distribution block is designed to be mounted on symmetric Top Hat DIN rails following the BS5584:1978 and EN 50022 standards. The housing is made of flame-retardant nylon 6.6, rated UL94V-0, and is free from cadmium and halogen to enhance safety and environmental compliance.

It is operational across a broad temperature range from -50°C to 130°C, enabling use in industrial, manufacturing, HVAC, and electrical distribution systems requiring reliability under varying environmental conditions.

Constructed from Wemid housing material for electrical insulation and safety. Screw clamp terminals suitable for secure DIN rail mounting. Current bars crafted from 10 mm electrolytic copper to exceed nominal current ratings.

Touch-proof design adheres to BS 3042 standards. Safe and efficient distribution of electricity to power consumers. Designed for easy and reliable installation within electrical panels and switchboards. Compliant with industrial mounting and safety norms for terminal blocks.

Color: Grey for easy identification within distribution assemblies.

The Weidmüller 1561770000 distribution block is an essential component in electrical power distribution and control panels, offering high performance and durability. Its robust construction combined with precise engineering ensures secure connections and long service life.
