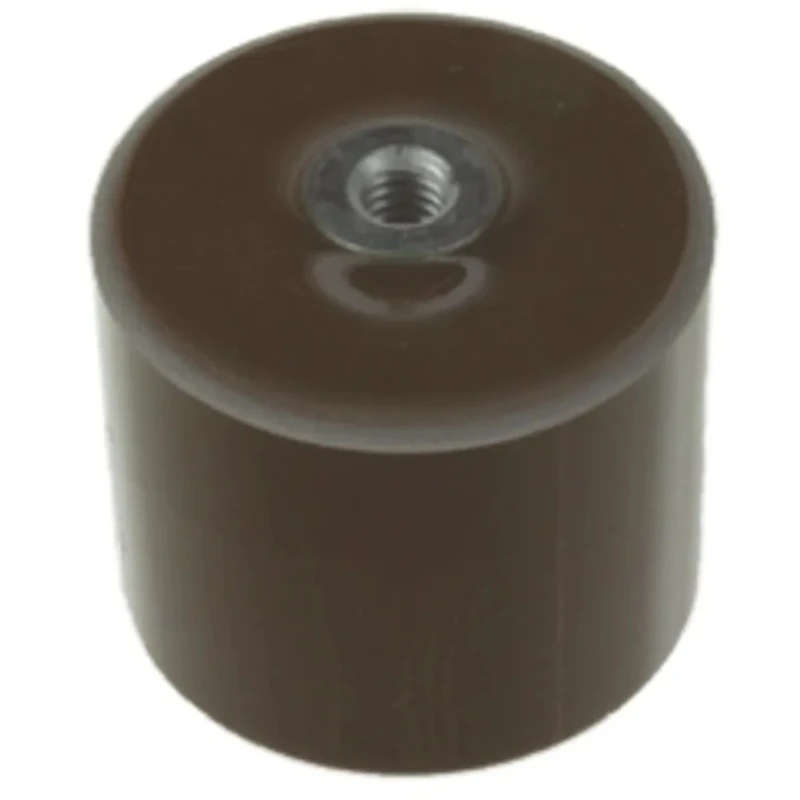

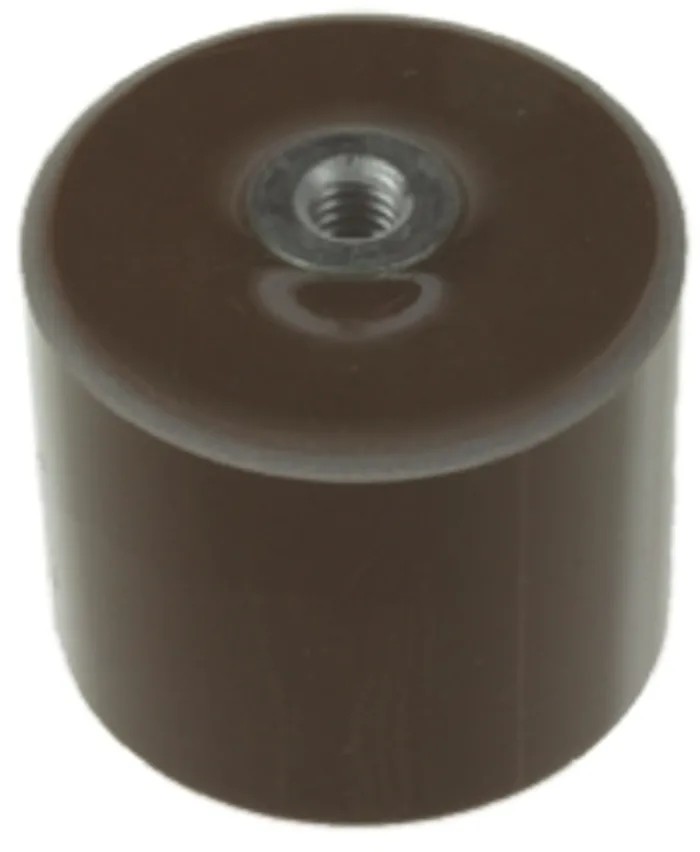

TDK Single Layer Ceramic Capacitor 560pF 50kV dc ±10% Z5T Dielectric UHV Series Screw Mount UHV-10A
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50kV dc |
| Diameter | 38mm |
| Brand | TDK |
| Height | 38mm |
| Length | 35mm |
| Model | UHV-10A |
| Packaging | Bulk |
| Mount Type | Screw |
| Series | UHV |
| Maximum Operating Temperature | 85°C |
| Tolerance | ±10 % |
| Capacitance | 560pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 741-6922 Brand: [TDK](https://in.rsdelivers.com/brands/tdk)Manufacturers Part No.: UHV-10A |
| Dielectric | Z5T |
Key Features
- Constructed with Z5T dielectric for enhanced temperature stability.
- Features a capacitance tolerance of ±10% for precise performance.
- Mount type is screw terminal for secure and easy installation.
- Compact dimensions of 35mm length and 38mm diameter and height.
- Rated for maximum operating temperature of 85°C and minimum of -30°C.
- Suitable for ultra-high voltage (UHV) applications in power supplies and laser equipment.
- Class 2 moulded ceramic capacitor with metal terminals.
- Exhibits low dissipation factor and excellent voltage-capacitance characteristics.
Product Description
TDK UHV-10A is a Single Layer Ceramic Capacitor featuring a capacitance of 560pF and an ultra-high voltage rating of 50kV dc. This capacitor utilizes Z5T dielectric material, delivering stable capacitance across specified temperature ranges from -30°C to 85°C, making it ideal for demanding industrial environments.
This capacitor features screw terminal type mounting which ensures reliable mechanical and electrical connection. Its compact size with dimensions of 35mm length, 38mm height, and a diameter of 38mm allows integration in space-constrained circuits.
Manufactured as a Class 2 moulded ceramic component with metal terminals, UHV-10A exhibits low dissipation factor and excellent voltage-capacitance characteristics. The ±10% capacitance tolerance guarantees precise performance for high voltage power supplies, laser equipment, and other industrial applications requiring ultra-high voltage ceramic capacitors.
The UHV series capacitors by TDK are recognized for reliability and stability under electrical stress, suited for environments with rigorous operational demands up to 85°C maximum temperature.
Constructed with Z5T dielectric to maintain capacitance stability. Capacitance tolerance of ±10% for accurate charge storage. Screw terminal mounting for easy and secure attachment. Compact form factor: 35mm length, 38mm diameter, and 38mm height.
Operating temperature range from -30°C to 85°C. Designed for ultra-high voltage applications up to 50kV dc. Low dissipation factor ensures efficient operation. Suitable for industrial, laboratory, and power electronics applications.
This product is part of the extensive TDK UHV ceramic capacitor series, known for quality and performance in power and laser systems. Explore further capacitors and related electronic components in the Single Layer Ceramic Capacitors category at EnvMart.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TDK UHV-10A capacitor has a capacitance of 560pF.
It is rated for a maximum voltage of 50kV dc.
This capacitor utilizes Z5T dielectric material, which provides enhanced temperature stability.
The dimensions of this model are 35mm in length, 38mm in height, and 38mm in diameter.
It operates within a temperature range of -30°C to 85°C.
The capacitance tolerance for this model is ±10%.
This capacitor features screw terminal mounting for secure and easy installation.
It is suitable for ultra-high voltage applications in power supplies and laser equipment.
The UHV-10A has metal terminals designed for screw mounting.
This model is packaged in bulk.
The country of origin for this capacitor is India.
This capacitor is part of the UHV series by TDK, known for its reliability under electrical stress.
