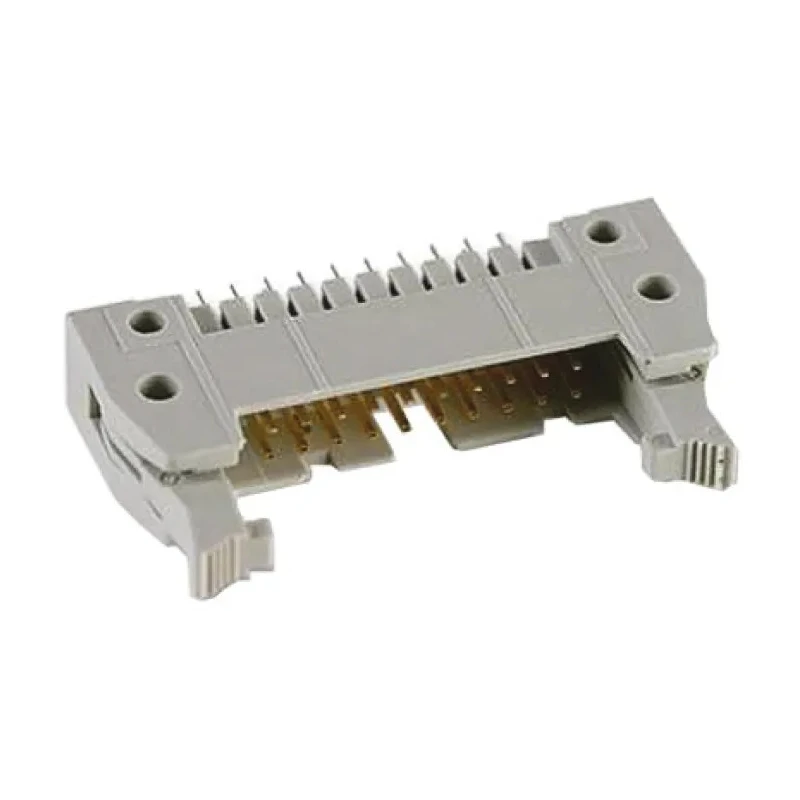

HARTING SEK 18 Series Straight Through Hole PCB Header 26 Contacts 2.54 mm Pitch 2 Row Shrouded 09185267904
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 18 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-7142PBrand: HARTINGManufacturers Part No.: 09185267904 |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- The product features a straight orientation with shrouded contacts for protection.
- Constructed from polybutylene terephthalate housing material for durability.
- Contacts are made of copper alloy with gold plating to ensure excellent conductivity.
- Supports a current rating of 1A and voltage up to 500V.
- Designed for through-hole mounting with solder termination type.
- Operates reliably between -55°C to 125°C temperature range.
- Male contact gender suitable for standard PCB applications.
- Complies with industry standards though no specific approvals are listed.
Product Description
HARTING 09185267904 is a SEK 18 Series Straight Through Hole PCB Header designed for robust wire-to-board connectivity applications. Featuring 26 contacts arranged in 2 rows with a 2.54 mm pitch, it provides excellent electrical and mechanical performance for industrial and electronic manufacturing.
The header is engineered with polybutylene terephthalate housing for enhanced mechanical strength and insulation. Its straight orientation and shrouded design protect the contacts while ensuring easier and secure mating with connectors.
The contacts utilize a copper alloy base with gold plating, delivering superior conductivity and corrosion resistance. Rated for 1 ampere current and supporting voltages up to 500 volts, this header is suitable for moderate power PCB applications.
Designed for through-hole mounting, it offers solder termination for reliable PCB assembly. The operating temperature range from -55°C to 125°C makes it ideal for demanding industrial, electronic, or power distribution tasks.
Though no specific standards or approvals are declared, the product meets typical industry requirements for PCB headers. The male contact gender matches standardized connector systems for wire-to-board applications.
The product features a straight orientation with shrouded contacts for protection. Constructed from polybutylene terephthalate housing material for durability. Contacts are made of copper alloy with gold plating to ensure excellent conductivity.
Supports a current rating of 1A and voltage up to 500V. Designed for through-hole mounting with solder termination type. Operates reliably between -55°C to 125°C temperature range. Male contact gender suitable for standard PCB applications.
Complies with industry standards though no specific approvals are listed.
HARTING PCB Headers are extensively used in industrial automation, manufacturing, power distribution, and electronic component assembly. This product enhances connectivity reliability and operational safety across various electronic devices and control systems. Browse EnvMart for more HARTING connectors and PCB header solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1A and can handle voltages up to 500V.
It operates reliably between -55°C and 125°C, making it suitable for various industrial applications.
It features 26 contacts arranged in 2 rows with a 2.54 mm pitch.
This PCB header is designed for through-hole mounting with a solder termination type.
The housing is made from polybutylene terephthalate, while the contacts are constructed from copper alloy with gold plating for enhanced conductivity.
The contacts are arranged in a straight orientation and are shrouded for protection.
It features male contacts, which are suitable for standard PCB applications.
While it complies with typical industry standards for PCB headers, no specific approvals are listed for this model.
It is designed for wire-to-board connectivity applications.
The gold plating on the contacts ensures excellent conductivity and corrosion resistance, enhancing the reliability of the connection.
This model is extensively used in industrial automation, manufacturing, power distribution, and electronic component assembly.
The country of origin for this PCB header is India.
