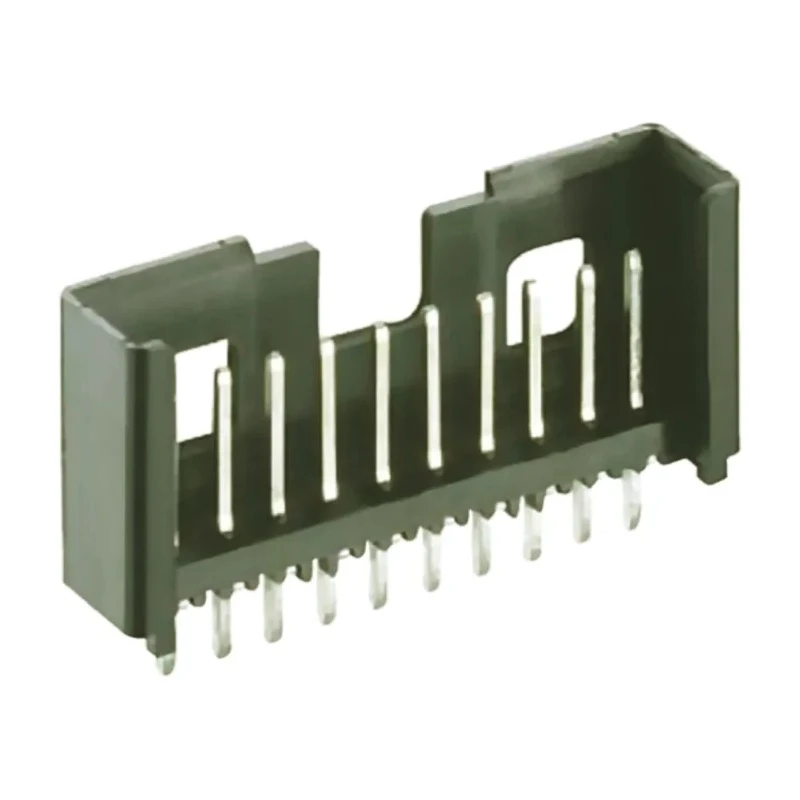

Lumberg Minimodul Series Straight Through Hole PCB Header 16 Contacts 2.5 mm Pitch 1 Row Shrouded 2,5 MSF/O 16
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 160V |
| Brand | Lumberg |
| Orientation | Straight |
| Current | 5A |
| Model | 2,5 MSF/O 16 |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyamide |
| Contact Material | Brass |
| Series | Minimodul |
| Termination Type | Solder |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 737-8619PBrand: LumbergManufacturers Part No.: 2,5 MSF/O 16 |
| Contact Plating | Tin |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- The connector supports a current rating of 5 A and voltage up to 160 V.
- It operates reliably between -40°C and 120°C temperature range.
- The male contact design terminates by soldering for strong connections.
- Complies with DIN EN 60664/IEC 60664, IEC 60335-1, and IEC 60695-2-11 standards.
- Suitable for low and middle volume production harnessing of single leads and flat cables.
- The Minimodul series connectors ensure secure signal and low load current transmission.
- The product is ideal for electronic components, power connectors, and PCB assembly applications.
- The shrouded design provides protection against mechanical damage and misalignment.
Product Description
The Lumberg Minimodul Series Straight Through Hole PCB Header model 2,5 MSF/O 16 offers a high-quality solution for PCB connection tasks, providing 16 contacts arranged in one row with a pitch of 2.5 mm. This shrouded, straight orientation header uses brass contacts plated with tin, housed in durable glass filled polyamide that withstands mechanical and thermal stresses reliably.
Designed for through-hole mounting, it facilitates strong wire-to-board connections suitable for electronic and power applications. The male contacts are terminated by solder, ensuring robust mechanical and electrical continuity on printed circuit boards.
This connector supports currents up to 5 A and can operate safely across a temperature range from -40°C up to 120°C, making it versatile for demanding industrial environments. It meets rigorous standards such as DIN EN 60664/IEC 60664, IEC 60335-1, and IEC 60695-2-11, confirming compliance with safety and reliability requirements.
The Minimodul series is particularly well suited for harnessing single leads and flat cables, offering easy assembly and proven crimp technology. These connectors are ideal for low to middle-volume production environments, ensuring consistent performance for signal and low load current applications.
The connector facilitates wire-to-board system integration with precision engineering. It ensures stable electrical performance owing to brass contact material and tin plating. The shrouded design provides additional protection to contacts against mechanical damage and misalignment.
The product withstands temperature variances and environmental stresses suitable for industrial use. Explore our extensive range of PCB connectors and electronic components for your industrial, commercial, and manufacturing requirements at EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 5 A.
It can handle a voltage of up to 160 V.
The connector operates reliably between -40°C and 120°C.
The contacts are arranged with a pitch of 2.5 mm.
The housing is made of glass filled polyamide, and the contacts are brass plated with tin.
This connector features 16 contacts arranged in one row.
It is designed for through-hole mounting.
The male contacts are terminated by soldering.
It complies with DIN EN 60664/IEC 60664, IEC 60335-1, and IEC 60695-2-11 standards.
The orientation of this model is straight.
It is suitable for low and middle volume production harnessing of single leads and flat cables.
The country of origin for this connector is India.
