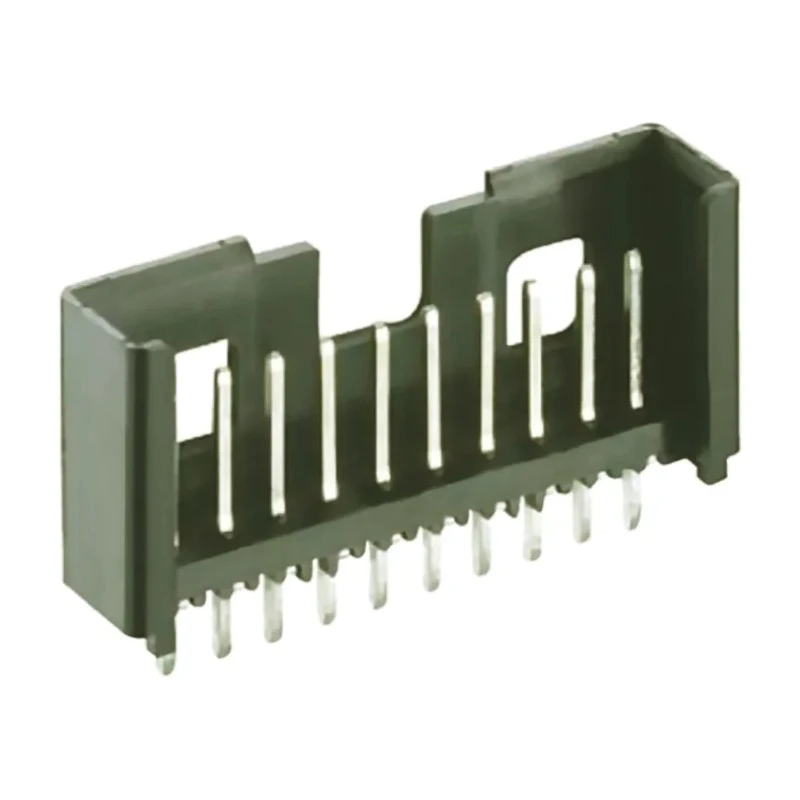

Lumberg Minimodul Series Straight Through Hole PCB Header, 20 Contacts, 2.5 mm Pitch, 1 Row, Shrouded 2,5 MSF/O 20

The Lumberg Minimodul Series Straight Through Hole PCB Header model 2,5 MSF/O 20 is a high-quality connector offering 20 male contacts with a 2.5 mm pitch in a single row and a shrouded design for enhanced durability and safety.

Featuring brass contacts with tin plating, this PCB header supports reliable solder termination and electrical performance. Its housing is manufactured from glass filled polyamide, providing excellent mechanical strength and resistance to temperatures from -40°C up to 120°C. Rated for currents up to 5 amperes and voltages up to 160 V, it meets industry standard compliance including DIN EN 60664, IEC 60335-1, and IEC 60695-2-11.

Designed for through-hole mounting with a straight connector system, it facilitates easy cable-to-board interconnections particularly in low to medium volume productions. The shrouded design ensures better protection against accidental contact and environmental factors.

This PCB header is ideally used in industrial electronics, power equipment, and manufacturing applications requiring compact and reliable wire-to-board connectors. Its robust construction and standardized pitch make it suitable for integration in diverse electronic assemblies and control systems.

This PCB header is designed with a 2.5 mm pitch spacing for compact installations. It features 20 shrouded contacts arranged in a single row for improved connectivity. Constructed with brass contacts plated with tin for reliable electrical performance.

The header supports a current of up to 5 amperes for low to medium load applications. It is designed for through-hole mounting and straight orientation ensuring stable mechanical fixation. The housing is made of glass filled polyamide, offering durability and high temperature resistance.

Operational temperature ranges from -40°C to 120°C, suitable for various environments. Compliant with DIN EN 60664/IEC 60664, IEC 60335-1, and IEC 60695-2-11 standards ensuring quality and safety. This header is ideal for signal and low current applications in industrial and electronic manufacturing.

The product condition is new and made in India as standard. Explore more PCB Headers and connectors in the Power Connectors category of EnvMart for compatible and high-performance electronic components.
