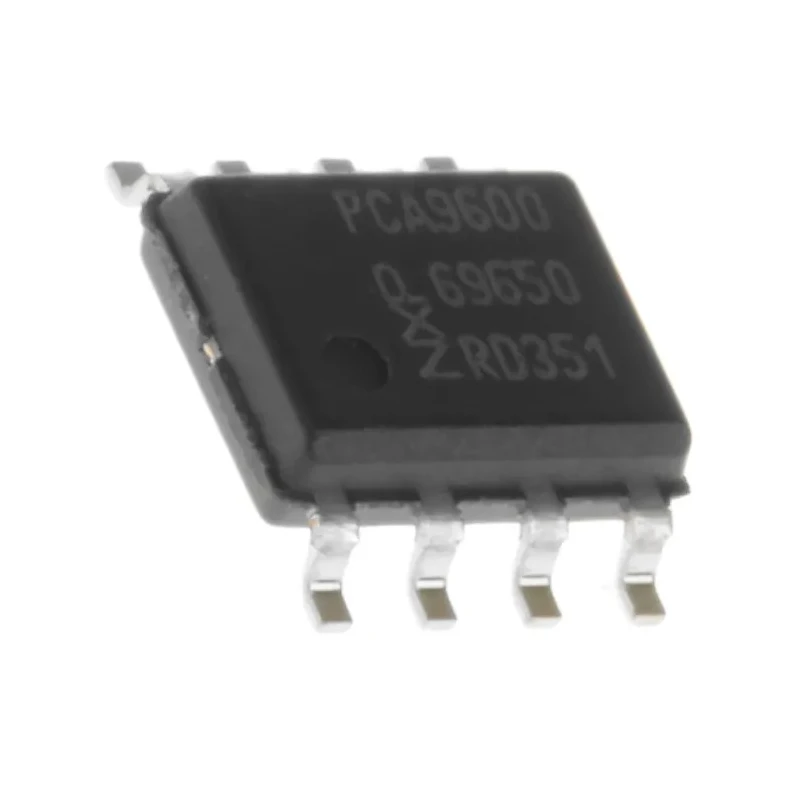

NXP Inverting Open Collector Bus Buffer 8-Pin SOIC 2.5-15V 100ns PCA9600D,112
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | NXP |
| Height | 1.45mm |
| Length | 5mm |
| Model | PCA9600D,112 |
| Mount Type | Surface |
| Output type | Open Collector |
| Series | PCA9600 |
| Input Type | Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Inverting |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 725-8751PBrand: NXPManufacturers Part No.: PCA9600D,112 |
| Pin Count | 8 |
| Maximum Supply Voltage | 15V |
| Logic Family | CMOS/TTL |
| Logic Function | Buffer |
| Minimum Supply Voltage | 2.5V |
| Maximum Propagation Delay Time @ CL | 100ns |
| Supply Current | 5mA |
Key Features
- Operates with a minimum supply voltage of 2.5V and maximum of 15V.
- Features an open collector output type with inverting polarity for signal buffering.
- Maximum propagation delay time at CL is 100ns for efficient data handling.
- Designed for surface mount assembly with an 8-pin SOIC package.
- Operates reliably within temperature range from -40°C to 85°C.
- Consumes a supply current of 5mA, optimizing power for embedded use.
- Complies with RoHS standards for environmental safety.
- Compact dimensions of 5mm length and 1.45mm height support space-saving board designs.
Product Description
NXP PCA9600D,112 Inverting Open Collector Bus Buffer in an 8-Pin SOIC package is a CMOS/TTL compatible logic IC designed for efficient signal buffering in various electronic applications. It features a differential input type and open collector output for inverting signal control, operating within a supply voltage range of 2.5V to 15V. This device provides a maximum propagation delay of 100ns, ensuring fast data transfer suitable for timing-sensitive environments.
Designed for surface mount technology, the compact 8-Pin SOIC package measures 5mm in length and 1.45mm in height, making it ideal for high-density circuit board layouts. Operating temperature range from -40°C to 85°C allows use in industrial and commercial electronic systems with varying environmental conditions.
This bus buffer requires only 5mA supply current, supporting low power consumption designs. It complies with RoHS directives, promoting environmentally responsible manufacturing. The buffer is not rated for automotive standards but is suitable for industrial, manufacturing, and electronic component applications where reliable inverting bus buffering is required.
Operates with 2.5V to 15V supply voltage. Implements an open collector output type with inverting polarity. Maximum propagation delay of 100ns ensures timely signal handling. Compact 8-Pin SOIC surface mount package. Operating temperature range from -40°C to 85°C.
Low supply current at 5mA for energy efficiency. Compliant with RoHS environmental standards. Compact form factor measuring 5mm by 1.45mm.
This product is essential for designers in electronic components, power and connector systems, semiconductor applications, and digital signal processing requiring precise bus buffering capabilities. It supports integration in industrial and manufacturing settings, providing robust logic IC functionality.
Explore more NXP semiconductor components and advanced Buffers for your next project at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 2.5V to 15V.
The maximum propagation delay time at CL is 100ns, allowing for efficient data handling.
It features an open collector output type with inverting polarity for signal buffering.
The PCA9600D,112 has a compact size of 5mm in length and 1.45mm in height.
It operates reliably within a temperature range from -40°C to 85°C.
This unit consumes a supply current of 5mA, optimizing power for embedded use.
It is designed for surface mount assembly in an 8-pin SOIC package.
Yes, it complies with RoHS standards for environmental safety.
The input type for this model is differential, suitable for various electronic applications.
It is classified under the CMOS/TTL logic family, making it compatible with various logic circuits.
This bus buffer is suitable for industrial, manufacturing, and electronic component applications requiring reliable inverting bus buffering.
The country of origin for this model is Thailand.
