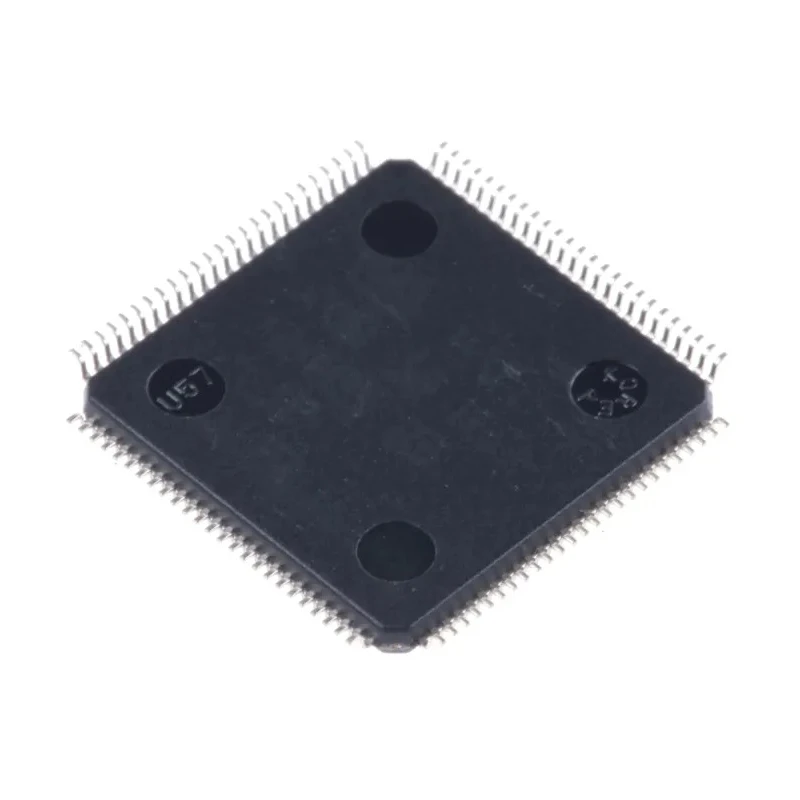

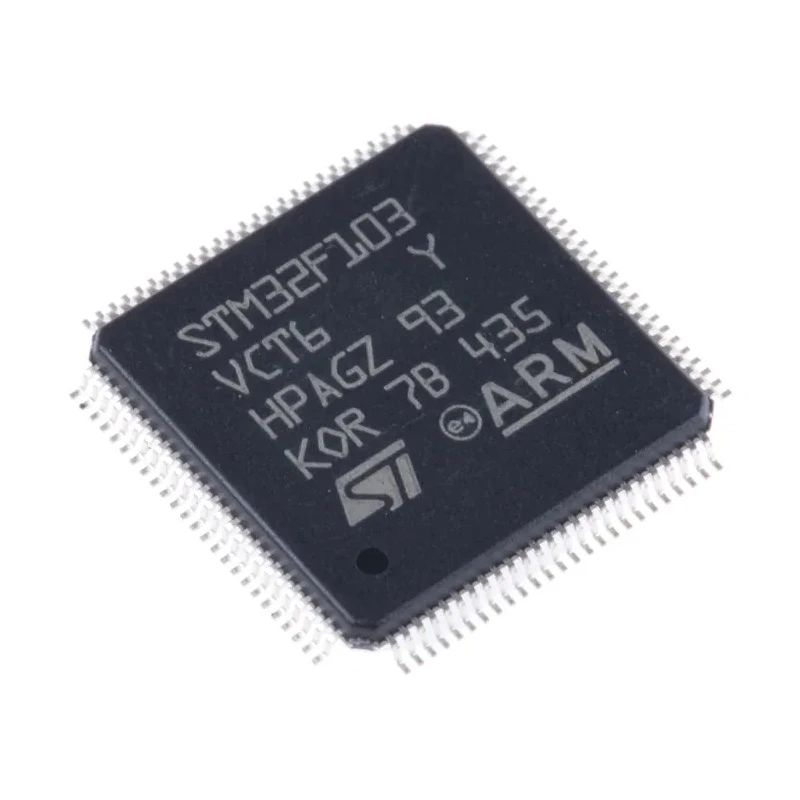

STMicroelectronics STM32F103VCT6 32-bit ARM Cortex M3 Microcontroller 72 MHz 256kB FLASH 100-Pin LQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 14.2mm |
| Model | STM32F103VCT6 |
| Width | 14.2mm |
| Mount Type | Surface |
| Series | STM32F1 |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 48kB |
| Standards/Approvals | FBI |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 724-9637Brand: STMicroelectronicsManufacturers Part No.: STM32F103VCT6 |
| Pin Count | 100 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 434mW |
| Minimum Supply Voltage | 2V |
| Device Core | ARM Cortex M3 |
| Program Memory Size | 256kB |
| Maximum Clock Frequency | 72MHz |
| Number of Timers | 6 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 12 Bit |
| Program Memory Type | FLASH |
| Temperature ranges | -40 to +85 °C or -40 to +105 °C |
Key Features
- Features ARM Cortex-M3 core with 32-bit RISC architecture.
- Operates at a maximum clock frequency of 72 MHz.
- Includes 256kB flash program memory and 48kB of RAM.
- Supports operating voltage range from 2 V to 3.6 V.
- Operates within temperature range from -40°C to +85°C.
- Equipped with 6 timers and 16 channels 12-bit ADCs.
- Surface mount device in 100-pin LQFP package type.
- Maximum power dissipation of 434 mW with dimensions 14.2 x 14.2 x 1.45 mm.
Product Description
STMicroelectronics STM32F103VCT6 is a 32-bit ARM Cortex-M3 microcontroller designed for embedded applications requiring a balance of power efficiency and processing performance. Operating at 72 MHz, it integrates 256kB of flash memory and 48kB of RAM within a compact 100-pin LQFP surface mount package, measuring 14.2 x 14.2 x 1.45 mm.
The microcontroller supports a voltage supply range from 2 V to 3.6 V and features a maximum power dissipation of 434mW, suitable for low power consumption applications. It includes 6 timers for precise timing control and 16 ADC channels with 12-bit resolution, making it ideal for data acquisition in various industrial and consumer electronics.
This device operates reliably over an extended temperature range from -40°C to +85°C, accommodating harsh environmental conditions typically found in HVAC, automotive, and industrial automation systems.
Designed with ARM Cortex-M3 architecture, the STM32F103VCT6 uses the Thumb-2 instruction set for optimized code density and rapid interrupt response, enhancing real-time operational capabilities. It provides a rich set of peripherals including motor control interfaces, CAN, and USB full speed connectivity.
ARM Cortex-M3 core with 32-bit RISC architecture. 72 MHz maximum clock frequency. 256kB flash memory and 48kB RAM. Voltage supply range 2 V to 3.6 V. Operating temperature range -40°C to +85°C. Six timers and 16 x 12-bit ADC channels.
100-pin LQFP surface mount package. Maximum power dissipation of 434 mW. Dimensions: 14.2 mm length x 14.2 mm width x 1.45 mm height. Suitable for industrial, HVAC, automotive, and consumer electronics.
The STM32F103VCT6 microcontroller is pin and software compatible with other STM32F1 series devices, easing integration and scaling in embedded system designs. Its real-time performance and power efficiency make it suitable for motor drives, PC and gaming peripherals, and automation controls.
Explore more STM32 Microcontrollers on EnvMart, offering diverse packages and performance for your embedded system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 72 MHz.
It includes 256kB of flash program memory.
The operating voltage range is from 2 V to 3.6 V.
This model is equipped with 16 channels of 12-bit ADCs.
It measures 14.2 mm in length, 14.2 mm in width, and 1.45 mm in height.
It operates within a temperature range from -40°C to +85°C.
This microcontroller includes 6 timers.
It is housed in a 100-pin LQFP surface mount package.
The maximum power dissipation is 434 mW.
It has 48kB of RAM.
Yes, it is pin and software compatible with other STM32F1 series devices.
It utilizes the ARM Cortex M3 core with a 32-bit RISC architecture.
