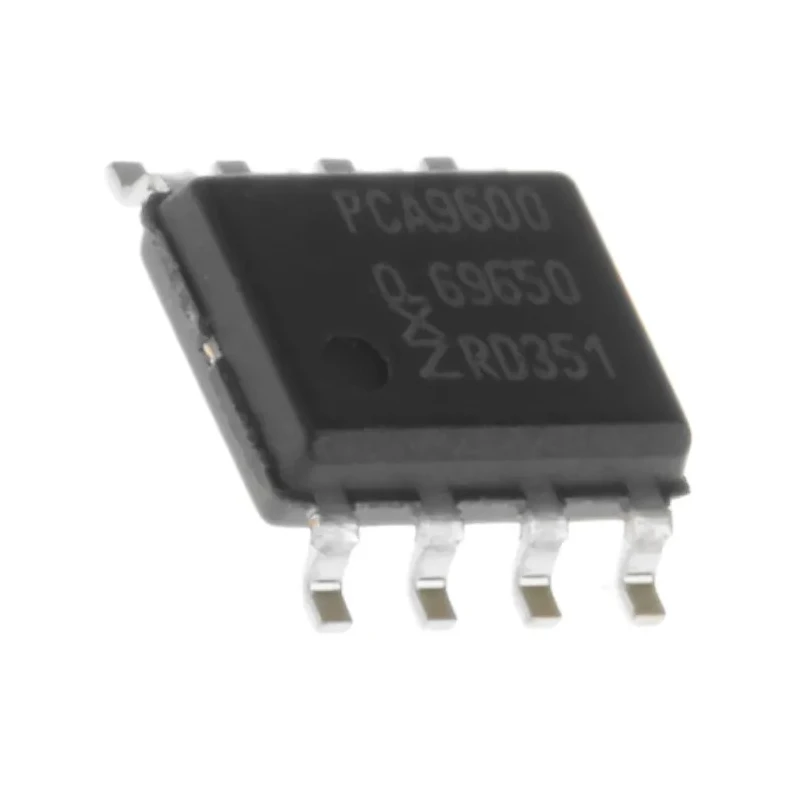

NXP Inverting Open Collector Bus Buffer, 8-Pin SOIC, 2.5V-15V Supply Voltage, 5mA Supply Current PCA9600D,112

Free Delivery in India | Lowest Global Shipping Charges

NXP Inverting Open Collector Bus Buffer, 8-Pin SOIC, 2.5V-15V Supply Voltage, 5mA Supply Current PCA9600D,112



Category Buffers Brand NXP Condition New

Specifications

Country of Origin	Thailand
Brand	NXP
Height	1.45mm
Length	5mm
Model	PCA9600D,112
Mount Type	Surface
Output type	Open Collector
Series	PCA9600
Input Type	Differential
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Polarity	Inverting
Standards/Approvals	RoHS
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	725-8751Brand: NXPManufacturers Part No.: PCA9600D,112
Pin Count	8
Maximum Supply Voltage	15V
Logic Family	CMOS/TTL
Logic Function	Buffer
Minimum Supply Voltage	2.5V
Maximum Propagation Delay Time @ CL	100ns
Supply Current	5mA

Key Features

Operates at a minimum supply voltage of 2.5V and maximum of 15V.
Features an open collector output type with inverting polarity.
Supports differential input type for reliable logic performance.
Supply current is 5mA, ensuring low power consumption.
Maximum propagation delay time at CL is 100ns, supporting fast signal processing.
Designed for surface mount with compact 5mm length and 1.45mm height dimensions.
Operational temperature ranges from -40°C to +85°C for industrial applications.
Complies with RoHS standards and is sourced from Thailand.

Product Description

The NXP PCA9600D,112 is an inverting open collector bus buffer integrated circuit designed to enhance signal integrity in electronic systems. It belongs to the CMOS/TTL logic family and provides buffering capabilities essential for interfacing and driving loads with an open collector output configuration.

This 8-pin SOIC package device supports a broad supply voltage range from 2.5V up to 15V, ensuring compatibility with various logic systems. Its supply current of 5mA enables efficient power usage, suitable for low power industrial and commercial electronic designs.

Featuring differential input with inverting polarity, the buffer facilitates reliable signal inversion while maintaining signal shape. The maximum propagation delay at CL is 100ns, allowing fast data throughput in bus systems.

Mechanically, the IC is furnished in a surface-mount SOIC package measuring 5mm in length and 1.45mm in height, making it suitable for compact PCB layouts. It operates reliably within an ambient temperature range from -40°C to 85°C, supporting harsh operating environments in industrial, automotive, and instrumentation applications.

The product is RoHS compliant and manufactured in Thailand, reflecting adherence to environmental and quality standards. It is widely used in semiconductor electronic designs, particularly where buffering and open collector outputs are required to interface multiple logic circuits or to drive larger loads.

Operates within 2.5V to 15V supply voltage range for flexible applications. Low supply current of 5mA reduces power consumption in designs. Fast propagation delay supports efficient data handling in bus systems. Compact SOIC 8-pin package ensures space-saving PCB design.

Wide temperature tolerance supports industrial and automotive sectors. Compliance with RoHS for environmentally responsible usage. Manufactured in Thailand ensuring recognized quality standards.

This NXP bus buffer IC plays a crucial role in enhancing signal driving capabilities within electronic circuits, making it invaluable for engineers working in industrial electronics, product manufacturing, and semiconductor applications. Discover more electronics components in the Semiconductor Buffers category at EnvMart.
