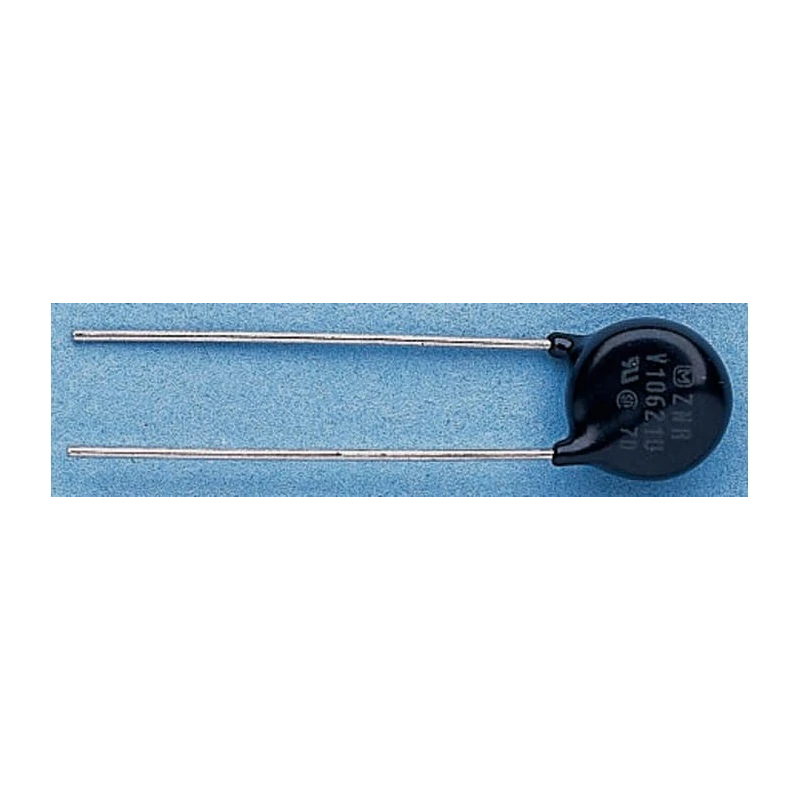

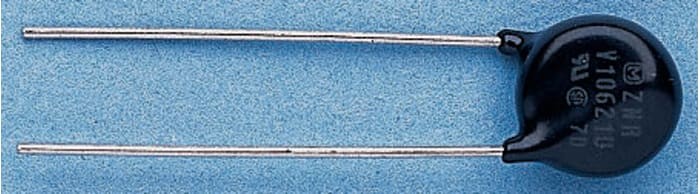

Panasonic V Surge Absorber 2.8 nF 5 A Clamping Voltage 1240 V Varistor 68 V ERZV10D680

Panasonic ERZV10D680 is a high-performance metal oxide varistor (MOV) surge absorber designed for electronic applications requiring robust transient voltage suppression. With a capacitance of 2.8 nF and clamping current capacity of 5 A, this device effectively clamps voltage surges up to 1240 V, protecting sensitive electronic components from damage.

The varistor voltage is rated at 68 V, with a maximum DC voltage threshold of 1465 V and a maximum surge current of 1 kA, making it suitable for a wide range of power protection applications. It features a compact, cylindrical form factor of 11.5 mm diameter and 34.5 mm length with a thickness and depth of 5.3 mm, optimized for installation in constrained PCB layouts.

Operating temperature range from -40°C to 85°C supports use in diverse environmental conditions including industrial and commercial electronics. The device uses crimped lead termination to ensure secure and reliable electrical connections. Compliance with international standards such as VDE IEC61051 series, UL1449, CQC GB standards, CSA C22.2, and IEC60950-1 Annex Q guarantees quality and safety adherence.

Energy rating of 25 J allows absorption of transient energy spikes, protecting downstream equipment from voltage surges commonly occurring during switching or lightning events. The lead pitch is 7.5 mm, which suits joint configurations on most standard PCBs.

Manufactured in Japan, Panasonic’s ERZV10D680 provides dependable surge protection for industrial, laboratory, and consumer electronic applications. Metal oxide varistor type suitable for high surge current applications.

68 V varistor voltage, 1240 V clamping voltage for effective surge suppression. Compact 11.5 mm diameter and 34.5 mm length form factor. Operating temperature range -40°C to 85°C for versatile use. Crimped lead termination ensures secure connections.

Meets VDE, UL, CQC, CSA, IEC international standards. Energy rating of 25 J protects against transient spikes. 7.5 mm lead pitch for PCB compatibility. Reliable quality manufactured in Japan.

This Panasonic Varistor is ideal for use in industrial electronics, power supplies, telecommunications, and consumer devices requiring surge protection. Find a wide choice of surge protection components in the Electronics & Electricals category on EnvMart for robust product solutions.
