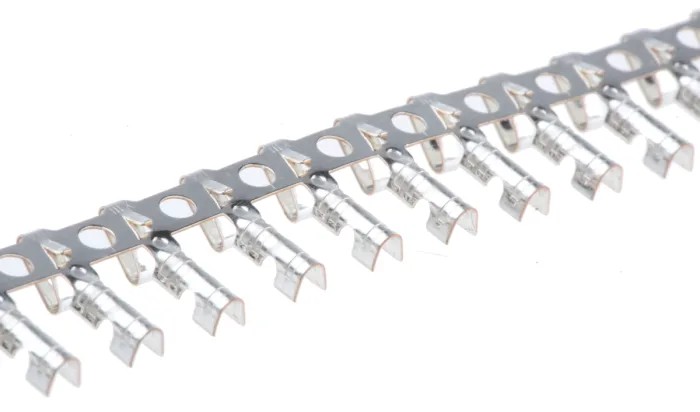

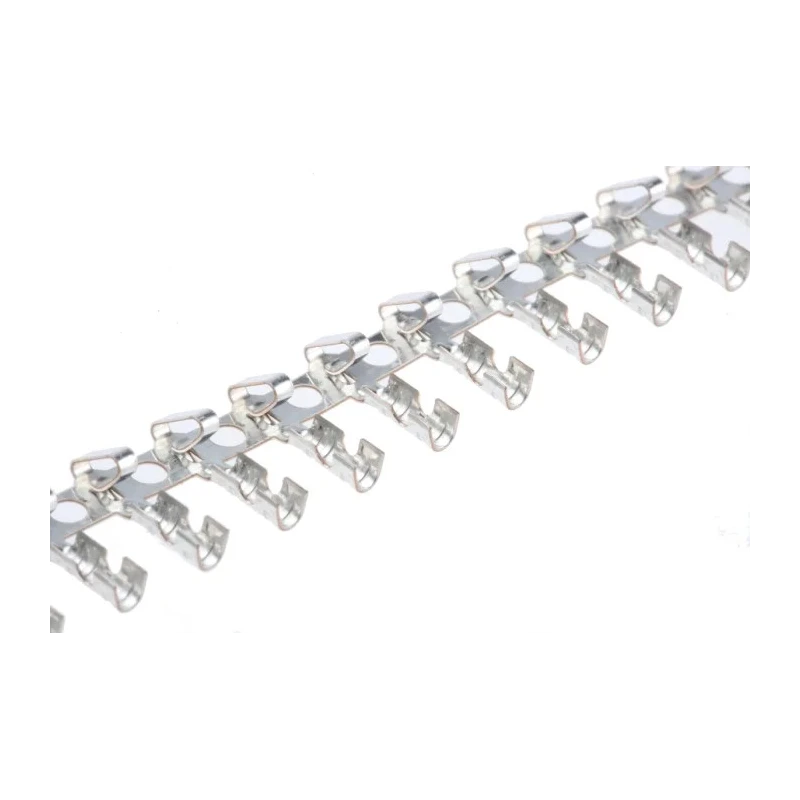

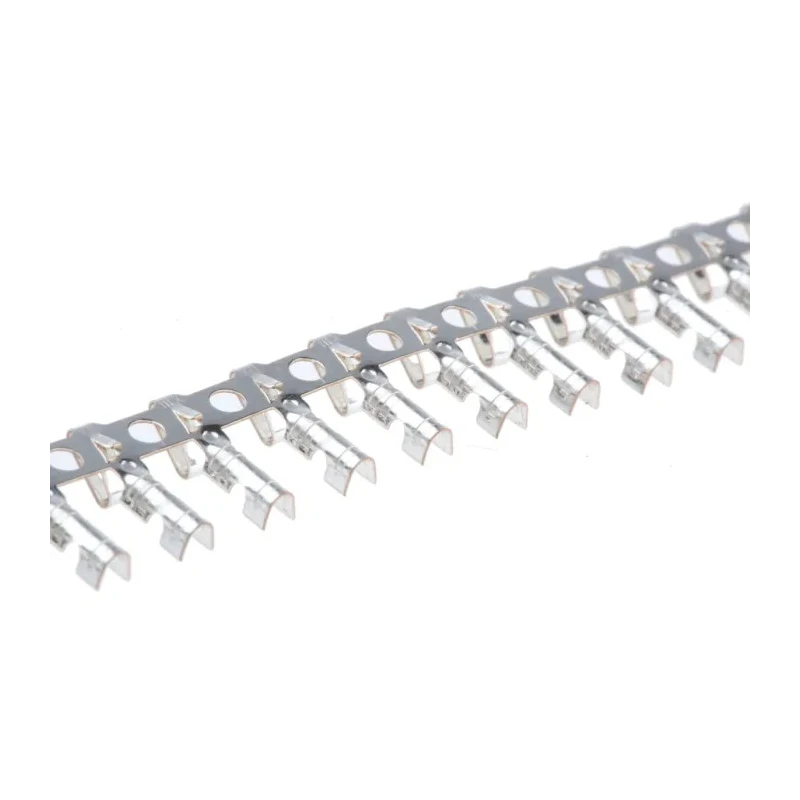

Molex 6459 Series Female Crimp Terminal for 30 AWG Min and 22 AWG Max Wire Sizes 4A Current Rating 08-52-0101

Molex 08-52-0101 is a female crimp terminal from the 6459 Series designed for terminating conductor wires ranging from 30 AWG minimum to 22 AWG maximum wire sizes. It provides a solderless crimp termination method that ensures secure, high-quality electrical connections suitable for various industrial and commercial applications.

Featuring phosphor bronze contact material plated with tin, this crimp terminal offers excellent corrosion resistance and reliable electrical conductivity. It operates within an ambient temperature range of -40°C to 105°C, suitable for demanding environments.

The cantilever design of the contact ensures high contact pressure and a wiping action that maintains consistent signal transmission quality. With a low maximum contact resistance of 10 milliohms, it ensures minimal power loss in sensitive electronic devices.

This terminal is compatible with Molex KK 254 connector housings and works with the recommended Molex crimping tool (part number 798-0821) to guarantee the right compression and a secure mechanical and electrical connection.

The terminal supports 4 amp current capacity suitable for low power signal transmission. Lightweight at approximately 0.07 grams, it does not add significant weight to wiring assemblies. Commonly used across applications such as medical instruments, computing devices, smartphones, and server room equipment where consistent connectivity is critical.

Molex's 6459 Series crimp terminals are engineered to provide durable and reliable connections for PCB and wire housing assemblies in electronic components and power connector domains.
