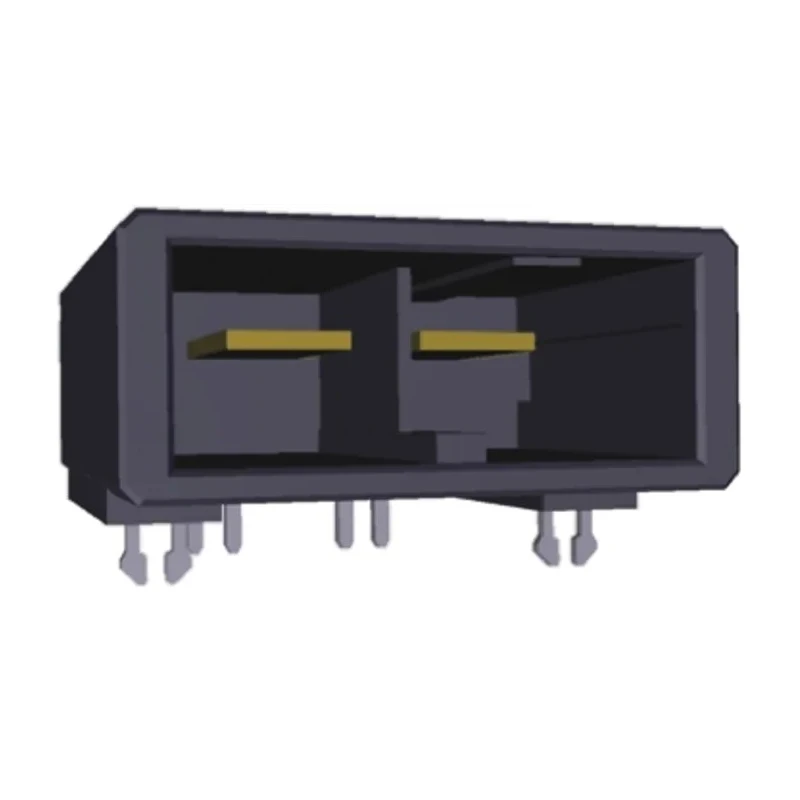

TE Connectivity Dynamic 5000 Series Right Angle Through Hole PCB Header, 4 Contacts, 10.16 mm Pitch, 1 Row 1-917541-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 630V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 30A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | Dynamic 5000 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 10.16mm |
| Pay online using | Or choose to pay later via bank transfer |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed with a glass filled polyester housing for durability.
- Supports a 30A current rating suitable for power applications.
- Right angle orientation with male contact gender and wire-to-board connector system.
- Gold plated copper alloy contacts ensure reliable electrical conductivity.
- Designed for through-hole mounting with solder termination type.
- Operates within a temperature range of -55°C to 105°C.
- Rated for up to 630V for electrical insulation and safety.
- Shrouded connector design provides secure mating and protection.
Product Description
TE Connectivity 1-917541-2 Dynamic 5000 Series is a right angle, through-hole PCB header designed for reliable electrical connections in demanding industrial and electronic applications. Featuring 4 gold plated copper alloy contacts spaced at a 10.16 mm pitch, this single-row header provides robust wire-to-board connectivity with shrouded housing for secure mating.
The housing material is glass filled polyester which offers high durability and thermal stability. Rated for a current of 30A and voltage up to 630V, it is suited for power and signal transmission in circuits requiring high reliability.
Its right angle orientation and through-hole mounting with solder termination type enable versatile PCB design options while ensuring mechanical stability. Operating temperature ranges from -55°C to 105°C making it suitable for harsh industrial and commercial environments.
The Dynamic 5000 Series header is widely used in electronic assemblies, power supply units, control systems, and various manufacturing sectors requiring precise, stable PCB interfacing. The shrouded design protects contacts from accidental damage and ensures correct connector orientation during installation.
Constructed with glass filled polyester housing for high strength and insulating properties. Gold plated copper alloy contacts ensure low resistance and durability. Designed with a 10.16 mm pitch pitch for compatibility with standard connectors.
Rated for 30A current, supporting substantial power transfer. Through-hole mounting allows strong, reliable solder connections on PCBs. Operating temperature from -55°C to 105°C suits diverse environments. Right angle orientation for efficient board space usage and wiring.
Shrouded connector system for protection and secure mating alignment. Voltage rating of 630V ensures safety in electronic circuits. Ideal for industrial, manufacturing, and electronic component applications requiring durable PCB connectors.
Explore EnvMart's comprehensive collection of electronic components and PCB Headers to meet your industrial, laboratory, and construction needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 30A, making it suitable for power applications.
It is rated for up to 630V, ensuring safety in electronic circuits.
The contacts are spaced at a pitch of 10.16 mm, compatible with standard connectors.
It is designed for through-hole mounting with solder termination type, providing strong connections on PCBs.
The housing is made of glass filled polyester, while the contacts are made of gold plated copper alloy.
It operates within a temperature range of -55°C to 105°C, suitable for harsh environments.
This model features 4 contacts, designed for reliable electrical connections.
The contacts are arranged in a right angle orientation, which is efficient for board space usage.
It is a shrouded connector design, providing secure mating and protection for the contacts.
The contacts are male, suitable for wire-to-board connections.
The country of origin for this PCB header is India.
It is widely used in electronic assemblies, power supply units, and control systems requiring stable PCB interfacing.
