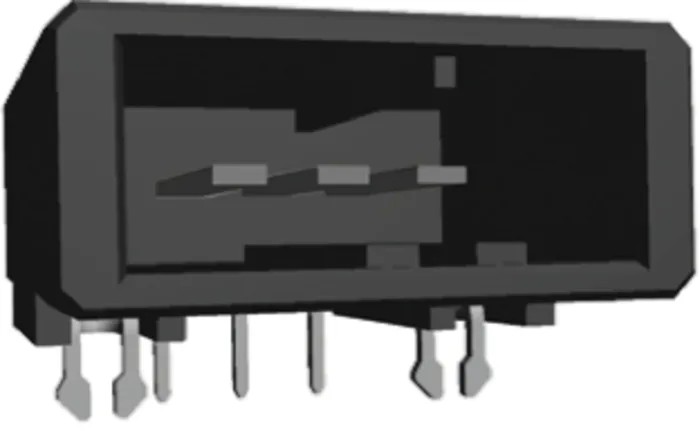

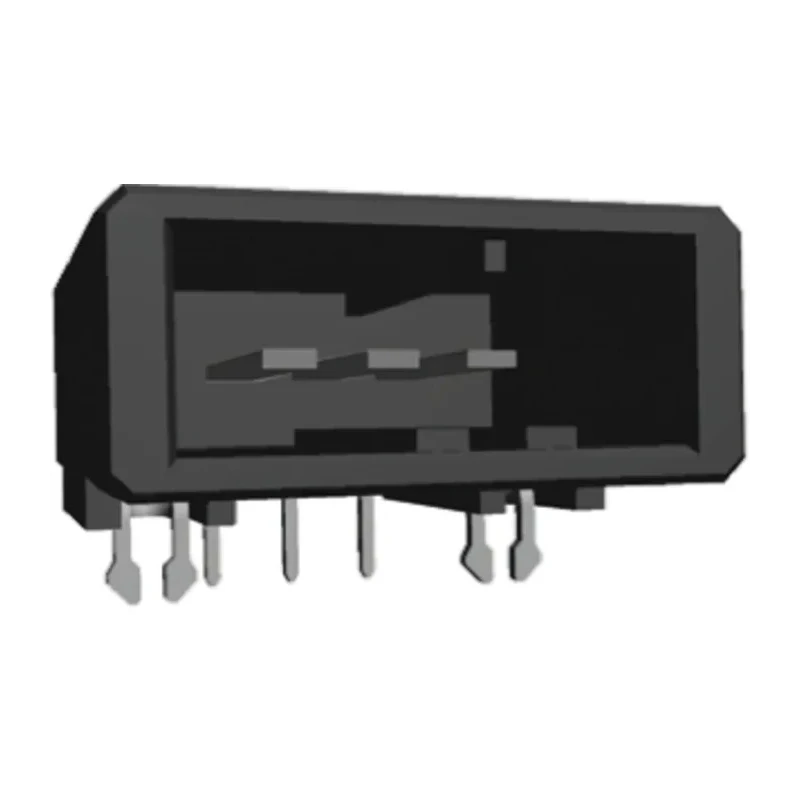

TE Connectivity Dynamic 3000 Series Right Angle Through Hole PCB Header, 3 Contacts, 3.81 mm Pitch, 1 Row 1-178293-5
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 12A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | Dynamic 3000 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-5338PBrand: TE ConnectivityManufacturers Part No.: 1-178293-5 |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Part of the Dynamic 3000 Series with a right angle orientation.
- Constructed with glass filled polyester housing for durability.
- Wire-to-board connector system with through hole mount type.
- Contacts are made of copper alloy plated with tin for conductivity.
- Designed to operate from -55°C to 105°C temperature range.
- Rated for 12A current and 250V voltage applications.
- Termination type is solder with male contact gender.
- Recommended PCB thickness between 1.0 to 1.6 mm for optimal insertion.
Product Description
TE Connectivity 1-178293-5 Dynamic 3000 Series Right Angle Through Hole PCB Header is engineered for reliable electronic connectivity in demanding industrial and commercial applications. Featuring 3 contacts spaced at a 3.81 mm pitch, this shrouded, single-row header provides enhanced durability with its glass filled polyester housing material. The right angle orientation optimizes PCB layout and facilitates wire-to-board connections through a secure through-hole mount.
Constructed with copper alloy contacts plated with tin to ensure superior conductivity and corrosion resistance, this PCB header supports currents up to 12A and voltages up to 250V, making it suitable for a wide range of electrical interfaces. Its operating temperature range from -55°C to 105°C ensures performance stability in harsh environments.
The solder termination and male contact gender design facilitate straightforward installation and reliable mechanical bonding. The header is designed for PCBs of 1.0 to 1.6 mm thickness, providing flexibility across various board specifications. The shrouded feature protects contacts during mating, enhancing connection integrity and reducing potential damage.
Applications of this Dynamic 3000 Series PCB header include industrial automation, power distribution systems, instrumentation, and communications equipment. This component supports efficient assembly processes and robust signal transmission in electronic and power connector systems.
Part of the Dynamic 3000 Series offering stable retention with tin plated retention leg. Gold plated contact tabs for enhanced signal integrity in mating connectors. PCB solder tails are tin plated for reliable solder joints.
Recommended PCB thickness between 1.0 to 1.6 mm for proper mounting. Manufactured according to industry standards with no specific certifications applicable. Engineered in China with focus on quality and consistency. Shrouded design provides protection for contacts during handling and connection.
Right angle orientation optimizes PCB area and assembly configuration. Discover other compatible connectors and accessories within the Dynamic 3000 Series on EnvMart to complete your assembly requirements with trusted TE Connectivity components.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 12A and a voltage of 250V.
It features a pitch of 3.81 mm and has 3 contacts.
The housing is made of glass filled polyester, while the contacts are constructed from copper alloy plated with tin.
It is recommended for PCBs with a thickness between 1.0 to 1.6 mm for optimal insertion.
The operating temperature range is from -55°C to 105°C.
This unit uses a solder termination type with male contact gender.
It has a right angle orientation, which optimizes PCB layout.
This model is shrouded, providing protection for the contacts during mating.
It is suitable for applications in industrial automation, power distribution systems, instrumentation, and communications equipment.
It is manufactured in China.
It is part of a wire-to-board connector system.
This product is manufactured according to industry standards, but no specific certifications are applicable.
