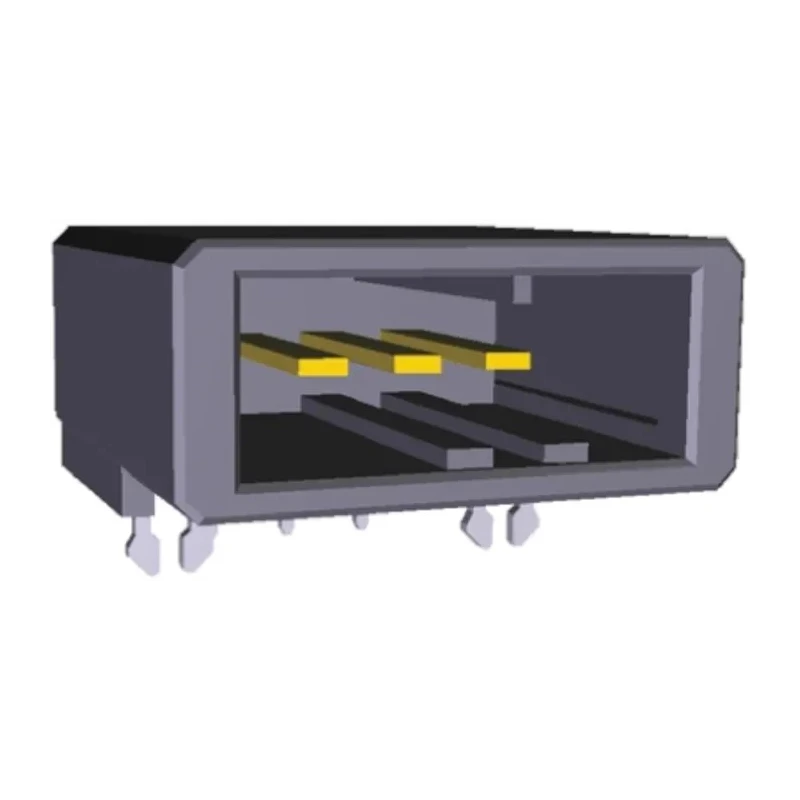

TE Connectivity Dynamic 3000 Series Right Angle Through Hole PCB Header, 3 Contacts, 3.81 mm Pitch, 1 Row 1-178293-2
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 12A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | Dynamic 3000 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-5335Brand: TE ConnectivityManufacturers Part No.: 1-178293-2Distrelec Article No.: 30274018 |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features right angle orientation optimized for space-saving PCB designs.
- Constructed with glass filled polyester housing for durability.
- Shrouded design ensures better protection and secure mating.
- Contacts are made of copper alloy with gold plating for excellent conductivity and corrosion resistance.
- Supports continuous current up to 12A with a rated voltage of 250V.
- Operates across wide temperature range from -55°C to 105°C.
- Termination type is soldered through hole connection providing firm mechanical and electrical stability.
- Designed with a single row and 3 contact points, suitable for wire-to-board connections.
Product Description
TE Connectivity 1-178293-2 is a Dynamic 3000 Series right angle through hole PCB header designed for reliable wire-to-board connections in electronic and electrical power applications. Featuring 3 contacts spaced at 3.81 mm pitch in a single row configuration, this shrouded male connector provides secure mechanical stability and superior electrical conductivity.
The header housing is made from glass filled polyester, offering robust durability while the copper alloy contacts are plated in gold to enhance corrosion resistance and ensure excellent signal integrity. Designed with a tin-plated retention leg and solder tails, it supports through hole mounting on PCBs with recommended thickness between 1.0 and 1.6 mm.
With a continuous current rating of 12A, voltage rating of 250V, and an operating temperature range of -55°C to 105°C, this connector is suitable for a variety of industrial, manufacturing, HVAC, and electronics assembly applications. Its right angle orientation allows for compact PCB layouts, saving space and enhancing assembly efficiency.
Features right angle orientation optimized for space-saving PCB designs. Constructed with glass filled polyester housing for durability. Shrouded design ensures better protection and secure mating. Contacts are made of copper alloy with gold plating for excellent conductivity and corrosion resistance.
Supports continuous current up to 12A with a rated voltage of 250V. Operates across wide temperature range from -55°C to 105°C. Termination type is soldered through hole connection providing firm mechanical and electrical stability.
Designed with a single row and 3 contact points, suitable for wire-to-board connections. Manufactured in Japan ensuring high-quality standards.
This high-quality PCB header is essential for electronic components power connectors in industrial and electronic manufacturing environments. It meets the demanding requirements of modern PCB assembly lines, ensuring reliability and longevity. Explore more TE Connectivity PCB Headers and connectors in the Power Connectors category at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a continuous current of up to 12A.
The rated voltage for this header is 250V.
The contacts are spaced at a pitch of 3.81 mm.
It operates within a temperature range of -55°C to 105°C.
The housing is made of glass filled polyester, and the contacts are copper alloy with gold plating.
This model features 3 contacts arranged in a single row.
It uses a soldered through hole termination type.
It is designed with a right angle orientation, which is optimized for space-saving PCB designs.
This model is shrouded, providing better protection and secure mating.
It is suitable for wire-to-board connections in various industrial, manufacturing, HVAC, and electronics assembly applications.
This PCB header is manufactured in Japan.
It is designed as a wire-to-board connector system.
