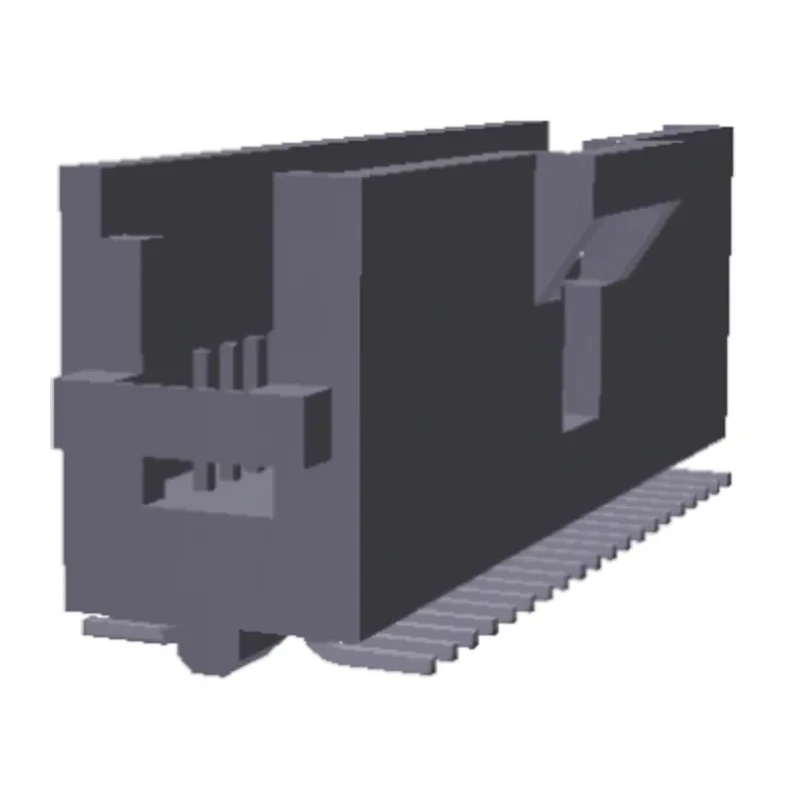

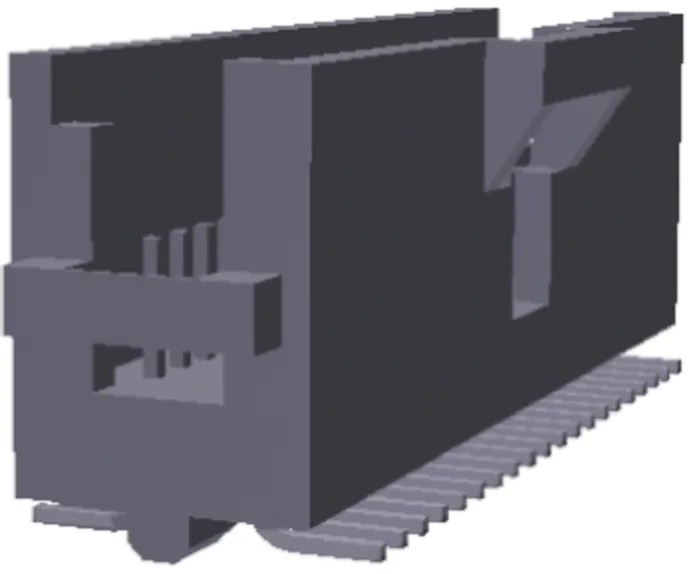

TE Connectivity AMPMODU System 50 Series Right Angle Through Hole PCB Header 10 Contacts 1.27 mm Pitch 2 Row 5-104069-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU System 50 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-9977PBrand: TE ConnectivityManufacturers Part No.: 5-104069-4 |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- The header features a right angle orientation for compact PCB layouts.
- Housing is made from high temperature thermoplastic to ensure durability.
- Contacts are crafted from phosphor bronze with gold plating for excellent conductivity and corrosion resistance.
- Rated for 3A current and 30V operating voltage, suitable for moderate power applications.
- Designed for through hole mount with solder termination for reliable electrical connection.
- Operates reliably between -55°C and 105°C ensuring performance in varied environments.
- Shrouded design aids alignment and protects contacts.
- Ideal for high-density PCB applications requiring compact and robust connectors.
Product Description
TE Connectivity 5-104069-4 AMPMODU System 50 Series Right Angle Through Hole PCB Header is a high-density, 10 contact, 2-row shrouded header with 1.27 mm pitch designed for reliable board-to-board and wire-to-board connections in electronic assemblies.
The connector houses are constructed of high temperature thermoplastic material with a polarized design to ensure proper mating and alignment, enhancing assembly precision. The right angle orientation allows for ergonomic PCB designs while maintaining compact form factors.
Contacts are made of phosphor bronze and plated with gold, providing excellent electrical conductivity and corrosion protection, suitable for a current rating of 3 Amps and a voltage rating of 30 Volts. The solder termination through hole mounting ensures a strong mechanical and electrical bond.
This header performs reliably across a wide temperature spectrum (-55°C to 105°C), permitting usage in diverse industrial, electronic, and power applications including manufacturing, telecommunications, and control systems.
The shrouded design improves durability and alignment during assembly, protecting the contacts from damage and misalignment. It belongs to the AMPMODU System 50 family, known for compact space-saving design and high-density contact spacing, allowing efficient connector implementation in high performance electronic devices.
The header supports board-to-board and wire-to-board interconnection systems. Its double-row layout provides increased contact density without sacrificing durability. The high temperature thermoplastic housing withstands harsh environmental conditions.
Optimal for high-density PCB assembly requiring precise and secure electrical connections. Choice connector for modular electronic assembly applications.
This product expands the TE Connectivity portfolio, trusted worldwide for superior electrical connector solutions. Suitable for industrial, manufacturing, electronics, and telecommunications sectors requiring dependable PCB connection systems. Browse EnvMart’s comprehensive range of PCB Headers and connectors to find compatible parts and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PCB header is rated for a current of 3 Amps.
It can operate reliably at a maximum temperature of 105°C.
This model uses through hole mounting with solder termination for secure connections.
This header features 10 contacts arranged in 2 rows.
The contacts are made from phosphor bronze and are gold plated, while the housing is constructed from high temperature thermoplastic.
The pitch size of this model is 1.27 mm.
It is rated for an operating voltage of 30 Volts.
This model features a right angle orientation, allowing for compact PCB layouts.
It supports board-to-board and wire-to-board interconnections.
This header operates reliably between -55°C and 105°C.
The connector is shrouded, which aids in alignment and protects the contacts.
It is suitable for high-density PCB applications in industrial, manufacturing, electronics, and telecommunications sectors.
