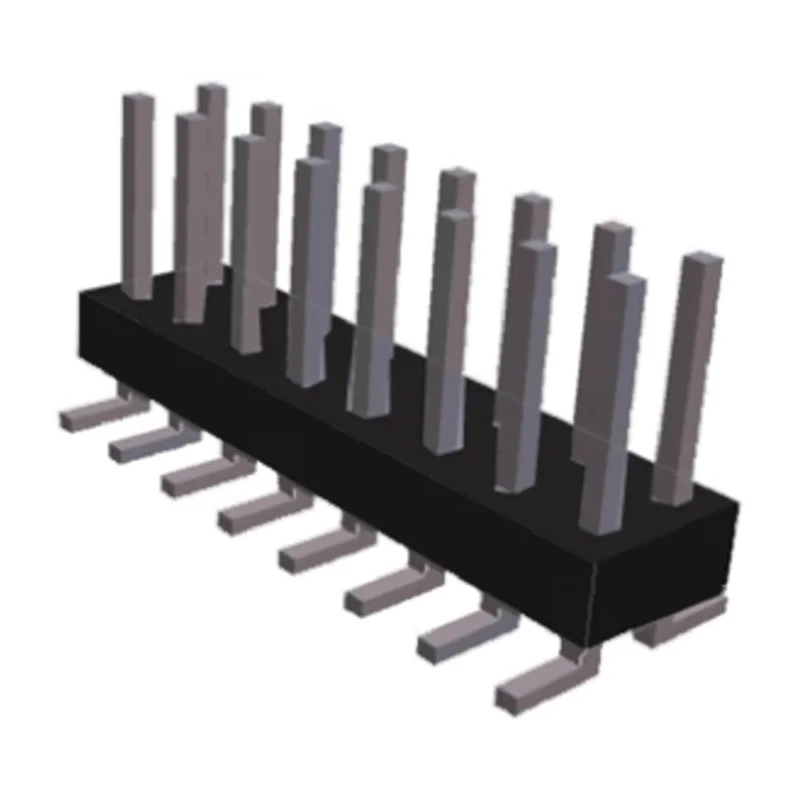

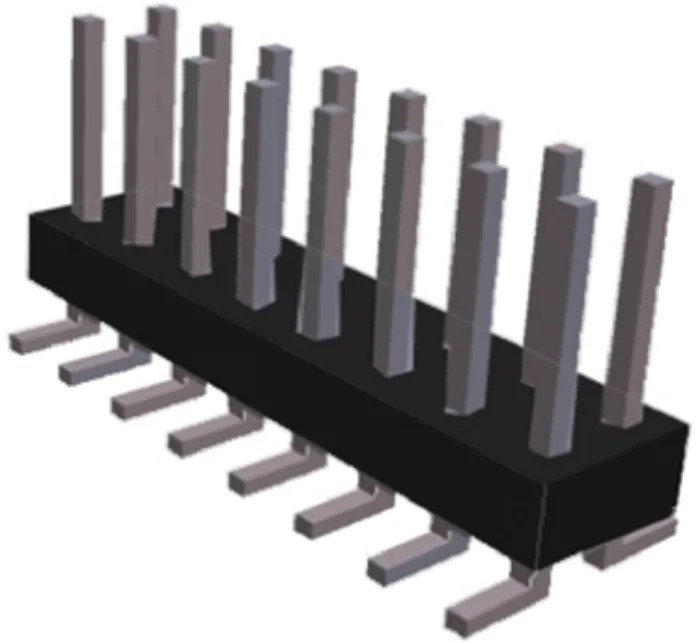

TE Connectivity AMPMODU MOD II Series Straight Surface Pin Header, 16 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded 5-146130-7
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 40V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-9804Brand: TE ConnectivityManufacturers Part No.: 5-146130-7 |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Mating Pin Length | 5.84mm |
Key Features
- The pin header features 2 rows of unshrouded, straight male contacts.
- Constructed with thermoplastic housing for durability and insulation.
- Contacts are made of phosphor bronze with gold plating for excellent conductivity.
- Rated at 40 V and 3 A current capacity with a 5.84 mm mating pin length.
- Surface mount design facilitates easy solder termination and installation.
- Operates reliably between -55°C to 105°C, suitable for various environments.
- Compatible with board-to-board and wire-to-board connector systems.
- Versatile breakaway design allows customization of pin count by breaking to size.
Product Description
TE Connectivity 5-146130-7 AMPMODU MOD II Series Straight Surface Pin Header provides a robust and versatile interconnect solution specifically designed for printed circuit boards. It features 16 unshrouded male contacts arranged in two rows with a precise 2.54 mm pitch, ensuring secure and efficient electrical connections in compact assemblies.
The pin header's housing is made from high-quality thermoplastic, offering excellent durability and electrical insulation while withstanding operating temperatures from -55°C to 105°C. The contact pins use phosphor bronze material, which is gold plated to provide superior conductivity and resistance to corrosion, essential for maintaining connection integrity over time.
Designed for surface mount board-to-board and wire-to-board applications, this part provides simplified installation with solder termination and a mating pin length of 5.84 mm. The 40 V voltage rating and 3 A current capacity make it suitable for a wide range of electronic and industrial equipment.
The AMPMODU MOD II series includes breakaway pin headers that can be customized by breaking the required number of pins from the strip, optimizing design flexibility and reducing waste. This part is unshrouded, making it ideal for applications where space and accessibility are considered.
The pin header is ideal for automotive controls, industrial equipment, telecommunications, medical instruments, computer hardware, and storage appliances. The reliable AMPMODU Interconnect system is recognized for its compact footprint and economical assembly in automation and control systems.
The surface mount design ensures quick installation saving time and labor costs in high-volume production environments. The materials and construction meet demanding environmental and electrical performance standards for industrial and commercial use.
Set contains 1 Pc TE Connectivity 5-146130-7 AMPMODU MOD II Series Straight Surface Pin Header with 16 contacts, 2 rows, 2.54 mm pitch. Explore the Electronics & Electricals category at EnvMart for more high-quality connectors and PCB components suited for professional industrial use.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 40 V and a current capacity of 3 A.
The connector features a pitch of 2.54 mm and includes 16 contacts arranged in 2 rows.
The housing is made from thermoplastic, while the contacts are constructed from phosphor bronze with gold plating for enhanced conductivity.
It operates reliably within a temperature range of -55°C to 105°C.
This unit utilizes solder termination for installation.
It is compatible with board-to-board and wire-to-board connector systems.
The mating pin length is 5.84 mm.
Yes, the breakaway design allows for customization of the pin count by breaking to the desired size.
This connector features a straight orientation and is unshrouded.
It is suitable for applications including automotive controls, industrial equipment, telecommunications, medical instruments, and computer hardware.
The country of origin for this pin header is India.
The gold plating on the contacts enhances conductivity and provides resistance to corrosion, which is essential for maintaining connection integrity.
