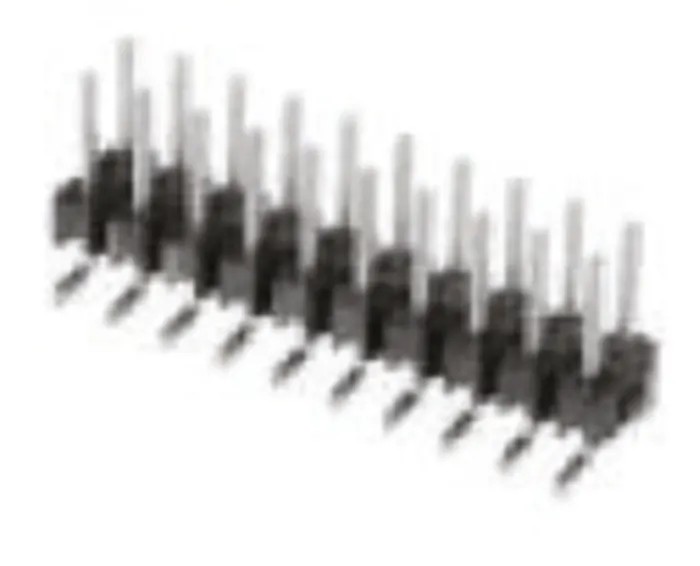

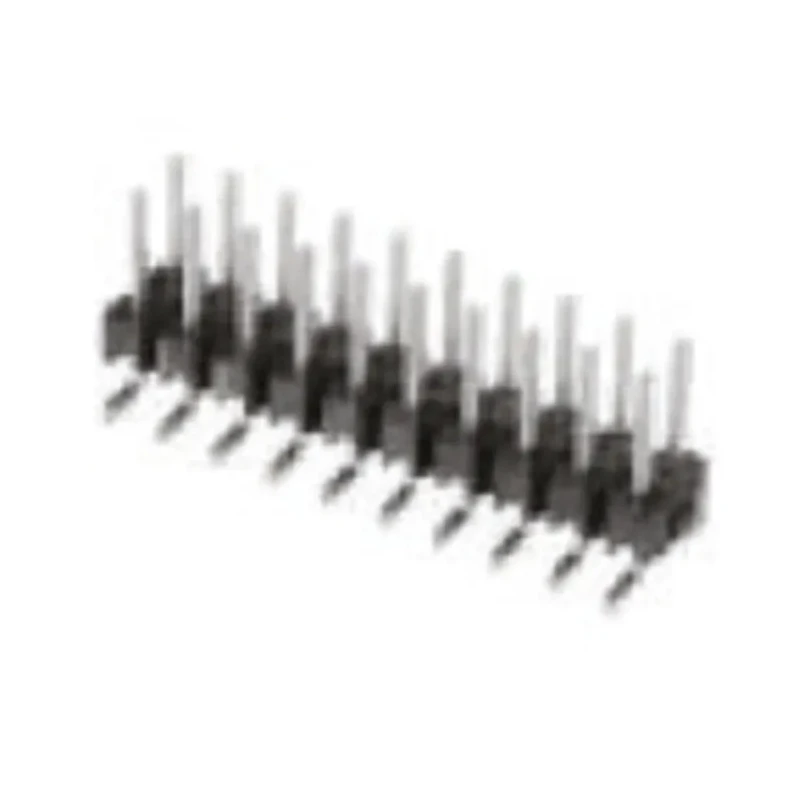

TE Connectivity AMPMODU MOD II Series Straight Surface Pin Header 10 Contacts 2.54 mm Pitch 2 Row Unshrouded 966269-5

TE Connectivity 966269-5 AMPMODU MOD II Series Straight Surface Pin Header is a high-quality connector featuring 10 contacts arranged in 2 rows with a 2.54 mm pitch. This unshrouded, straight pin header utilizes a glass filled polycyclohexylenedimethylene terephthalate housing that provides robust mechanical strength and stability. It is designed to meet the demands of various industrial, automotive, and electronic applications requiring reliable board-to-board and wire-to-board connections.

The copper alloy contacts with gold plating ensure exceptional conductivity and corrosion resistance, supporting a current rating of 3A with operating temperatures ranging from -65°C to 105°C. The surface mount mount type and solder termination facilitate efficient PCB assembly and strong electrical connections. The 5.8 mm mating pin length provides secure engagement with mating connectors, enabling a stable signal transmission.

These AMPMODU Mod II pin headers are breakaway type, allowing customization to the exact size needed, which reduces labor and installation time significantly. They are widely used in automotive controls, industrial and test equipment, computers, telecommunications, medical instruments, storage equipment, and appliances.

The AMPMODU Interconnect system is recognized for providing a compact, economical, and reliable solution in automation and control systems. This series supports various configurations suitable for both board-to-board and wire-to-board connections, enhancing flexibility in electronic designs.

Features a 2-row, unshrouded design for versatile board-to-board and wire-to-board connections. Constructed with durable glass filled polycyclohexylenedimethylene terephthalate housing. Copper alloy contacts plated with gold for excellent conductivity and corrosion resistance.

Supports 3A current carrying capacity and operates between -65°C to 105°C. Surface mount type with solder termination enables quick and reliable PCB installation. Breakaway design allows headers to be sized as needed, enhancing installation efficiency.

Used in automotive, industrial, telecommunications, medical, and storage equipment applications. 2.54 mm pitch and 5.8 mm mating pin length ensure standard compatibility. Explore the extensive range of PCB Headers available at EnvMart for your industrial and electronic component requirements.
