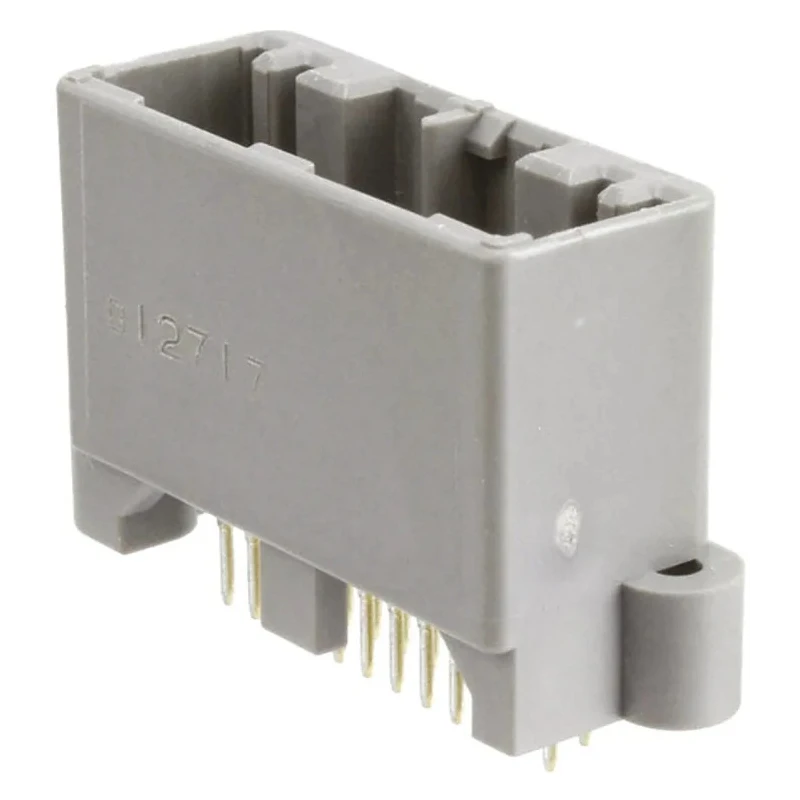

JAE MX34 Series Straight Through Hole Wire-to-Board PCB Header, 24 Contacts, 2.2 mm Pitch, 2 Row, Shrouded MX34

JAE MX34 Series Straight Through Hole PCB Header, model MX34, is engineered for automotive and industrial wire-to-board connector applications. This compact header features 24 male contacts arranged in 2 rows with a 2.2 mm pitch, shrouded for enhanced protection and secure mating. The connector housing is made from glass filled syndiotactic polystyrene, providing excellent mechanical durability and resistance to environmental stresses.

The brass contacts come with a tin plating to ensure reliable electrical conductivity and prevent corrosion. Designed to handle currents up to 3 amps, the MX34 header supports through-hole solder termination, facilitating a robust assembly on printed circuit boards.

Operating across a temperature range from -40°C to 85°C, this PCB header is suitable for demanding automotive environments. Its design includes a double locking mechanism and a box-type pin header that offers high resistance to twisting and external mechanical stress. The preset-type retainer guarantees the connector only engages when fully inserted, reducing incomplete contact insertion risks.

Workability is enhanced by reducing mating and unmating forces to 80N or less, making installation smoother and more efficient. This header is compatible with MX34 socket housings, with related stock number 690-9852 for complementary components.

Automotive-grade compact wire-to-board connector with 24 contacts in 2 rows. Shrouded design and robust housing material provide durability and protection. Brass tin-plated contacts ensure electrical reliability and corrosion resistance.

Supports 3A current rating with solder termination for through-hole mounting. Wide operating temperature range ideal for automotive and industrial use. Features double locking mechanism and box-type pin header for secure connections.

Preset retainer prevents incomplete insertion and ensures proper engagement. Compatible with MX34 series socket housings.

This JAE MX34 PCB header is ideal for industrial, automotive, and manufacturing applications requiring reliable, durable, and easy-to-assemble wire-to-board connections. Explore more high-quality connectors and electronic components in the PCB Headers category on EnvMart.
