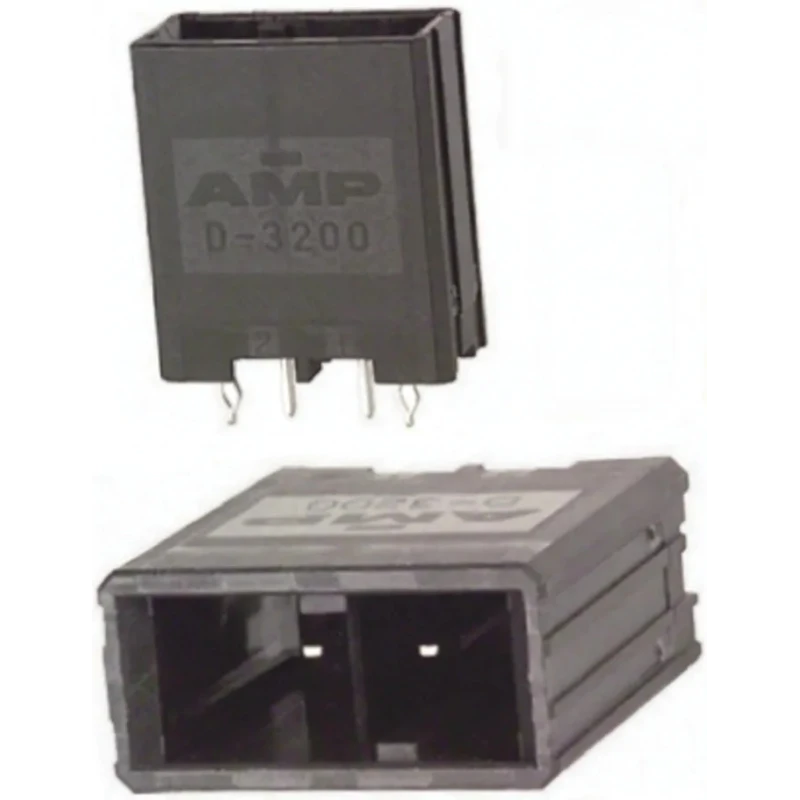

TE Connectivity D-3000 Series Straight Through Hole PCB Header, 2 Contacts, 5.08 mm Pitch, 2 Row, Shrouded 1-917337-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 15A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | D-3000 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 5.08mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-9557PBrand: TE ConnectivityManufacturers Part No.: 1-917337-2 |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a shrouded, straight through hole mount type for enhanced stability.
- Constructed from glass filled polyester housing for durability and insulation.
- Copper alloy contacts plated with gold ensure excellent conductivity.
- Rated for 15A current and withstands operating temperatures from -55°C to 105°C.
- Designed with 2 rows and 2 contacts suitable for various electronic applications.
- Supports a voltage rating of 600V for robust performance.
- Termination type is solder with a male contact gender for easy assembly.
Product Description
TE Connectivity 1-917337-2 is a D-3000 Series straight through hole PCB header designed for high-quality wire-to-board connections in electronics manufacturing.
The component features a durable glass filled polyester housing material paired with copper alloy contacts plated in gold to provide excellent electrical conductivity and corrosion resistance.
With a pitch of 5.08 mm and a 2 row, 2 contact configuration, this shrouded header facilitates stable mounting and reliable connectivity on printed circuit boards. It is designed to withstand currents up to 15A and voltages up to 600V, operating safely within temperature ranges from -55°C to 105°C.
The header terminating type is solder with a male contact gender, providing ease of assembly and compatibility with standard PCB manufacturing processes. This product is ideal for use in industrial, manufacturing, and electronic component assembly environments requiring high reliability and electrical performance.
Shrouded, straight mount for secure wire-to-board connection. Glass filled polyester housing provides durability and insulation. Gold plated copper alloy contacts ensure reliable conductivity. Supports 15A current and 600V voltage ratings.
Operates in harsh temperature environments from -55°C to 105°C. Solder termination and male contact type for ease of integration. Explore more PCB header solutions from TE Connectivity and enhance your electronic device builds with trusted components available at EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a voltage rating of 600V, making it suitable for robust electrical performance in various applications.
It is rated for a maximum current of 15A, ensuring reliable connectivity for high-power applications.
The pitch size of this header is 5.08 mm, which is standard for many PCB applications.
The housing is made from glass filled polyester, while the contacts are copper alloy plated with gold for excellent conductivity and corrosion resistance.
It operates safely within a temperature range from -55°C to 105°C, making it suitable for harsh environments.
This unit features 2 contacts arranged in 2 rows, allowing for efficient wire-to-board connections.
It uses solder termination, which facilitates easy assembly and integration into PCB designs.
Yes, it is designed for a straight through hole mount type, providing enhanced stability on the PCB.
The contact gender is male, which is standard for this type of connector in wire-to-board applications.
The country of origin for this header is India.
It is designed for various electronic applications, particularly in industrial and manufacturing environments requiring reliable connections.
This model belongs to the D-3000 Series, which is known for high-quality wire-to-board connections.
