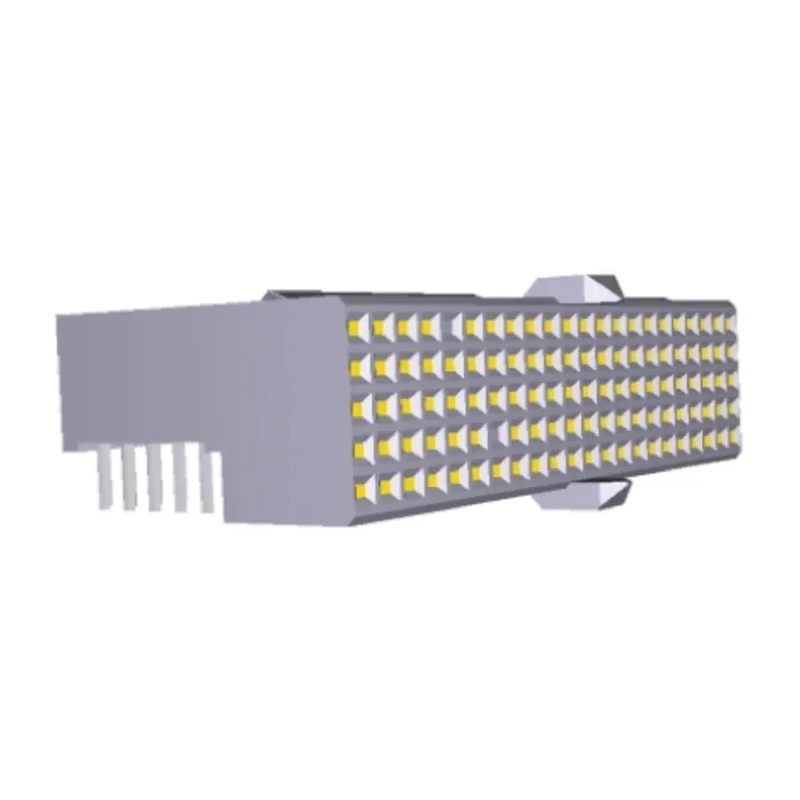

TE Connectivity Z-PACK HM 2 mm Pitch Hard Metric Type B Backplane Connector Right Angle Female 95 Contacts 352171-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1.5A |
| Model | 352171-1 |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | Z-PACK HM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 5 |
| Number of columns | 19 |
| Pitch | 2mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-9267PBrand: TE ConnectivityManufacturers Part No.: 352171-1 |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 95 |
| Contact Gender | Female |
| Connector Gender | Female |
| Backplane Connector Type | Hard Metric Type B |
Key Features
- Designed for a 2 mm pitch Hard Metric Type B interface.
- Features 95 contacts arranged in 19 columns and 5 rows.
- Current rating is 1.5 A with voltage rating of 500V AC.
- Connector housing is made of flame-retardant polyethylene terephthalate.
- Contact material is phosphor bronze with gold over nickel plating.
- Through-hole mount type with solder termination.
- Operating temperature range is -55°C to 125°C.
- Right angle female connector orientation.
Product Description
TE Connectivity 352171-1 Z-PACK HM 2 mm Pitch Hard Metric Type B Backplane Connector is engineered for industrial, electronic, and telecommunication applications requiring secure and reliable backplane connections. This right angle female connector is designed with 95 contacts arranged in 19 columns and 5 rows, supporting a 2 mm pitch Hard Metric Type B interface.
The connector is rated for 1.5 A current and 500 V AC voltage, ensuring robust electrical performance. The housing is constructed from flame-retardant polyethylene terephthalate (PET) meeting UL 94V-0 standards, providing excellent durability and safety against fire hazards.
Contacts are made of phosphor bronze with gold over nickel plating for enhanced conductivity and resistance to corrosion. The connector is mounted using through-hole technology and terminated by soldering, providing secure mechanical and electrical connections.
Operating temperature ranges from -55°C up to 125°C, making it suitable for harsh industrial environments. The Z-PACK HM series connectors are designed for interfacing free boards such as daughterboards or PCBs to fixed boards like motherboards or backplanes, supporting complex electronic assemblies.
This connector offers reliable shielding options and standard crosstalk performance, essential for signal integrity in high-speed data communications. It is supplied in tubes and ideal for manufacturing, assembly lines, and repair operations in electronics, telecommunications, data centers, and industrial automation sectors.
Designed for a 2 mm pitch Hard Metric Type B interface. Features 95 contacts arranged in 19 columns and 5 rows. Current rating is 1.5 A with voltage rating of 500V AC. Connector housing is made of flame-retardant polyethylene terephthalate.
Contact material is phosphor bronze with gold over nickel plating. Through-hole mount type with solder termination. Operating temperature range: -55°C to 125°C. Right angle female connector orientation. Part of Z-PACK HM series for backplane interconnections.
Meets UL 94V-0 flame retardant standards and offers standard crosstalk. Explore further TE Connectivity Backplane Connectors and enhance your electronic assemblies at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 1.5 A and a voltage rating of 500 V AC.
It operates within a temperature range of -55°C to 125°C, making it suitable for harsh environments.
The connector features 95 contacts arranged in 19 columns and 5 rows.
The housing is made of flame-retardant polyethylene terephthalate, while the contacts are made of phosphor bronze with gold over nickel plating.
It utilizes a through-hole mount type with solder termination for secure installation.
This model has a right angle orientation, which can be beneficial for space-constrained applications.
Yes, it offers standard crosstalk performance, which is essential for maintaining signal integrity in high-speed data communications.
It is engineered for industrial, electronic, and telecommunication applications requiring reliable backplane connections.
The connector is designed for a 2 mm pitch Hard Metric Type B interface.
The country of origin for this connector is India.
This connector is a female connector, designed for use in backplane interconnections.
Key features include 95 contacts, a flame-retardant housing, and a wide operating temperature range, making it suitable for complex electronic assemblies.
