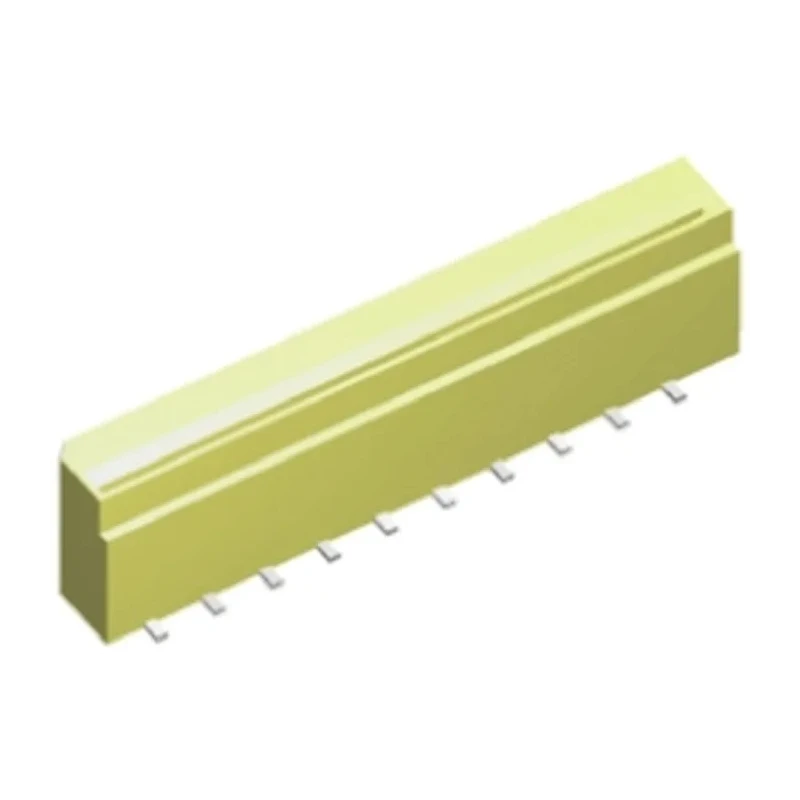

TE Connectivity FFC 1 mm Pitch 20 Way Straight Female FPC Connector, Solder 2-84982-0

TE Connectivity 2-84982-0 FFC 1 mm Pitch 20 Way Straight Female FPC Connector is a high-quality surface mount connector designed for flexible printed circuit (FPC) applications. With a 1.0 mm centreline pitch and 20 contacts, it offers precise signal routing through compact electronic devices when traditional wire-to-board connectors are too large.

The connector features phosphor bronze contacts plated with tin over nickel to ensure reliable electrical performance and resistance to corrosion. Its Zero Insertion Force (ZIF) slide lock actuator mechanism supports easier cable insertion and secure connection, reducing wear on contacts and enhancing mating cycles. The locking mechanism also improves retention under high vibration conditions, making it suitable for robust industrial and medical applications.

This FPC connector operates at a nominal voltage of 125V AC and a current rating of 1A, withstanding operating temperatures from -20°C to 85°C. The connector’s housing is made from durable nylon, providing electrical insulation and mechanical stability. It is configured with a single row of vertical female contacts and is designed for solder termination with added solder tabs for enhanced PCB retention.

Applications for the TE Connectivity 2-84982-0 connector include handheld scanners, set-top boxes, personal computers, business and industrial equipment, and medical devices. It is optimized for environments requiring secure, vibration-resistant connections and long-lasting performance. Non-ZIF variants are available for static applications; however, this model’s ZIF actuator reduces insertion force and prolongs connector life.

Compact and efficient design suitable for space-constrained electronics. Offers both ZIF locking and solder tabs for secure PCB retention. Phosphor bronze contacts with tin over nickel plating ensure high performance. Nylon housing provides durability and insulation.

Rated for 1A current and 125V AC voltage. Operates reliably between -20°C and 85°C. Single-row, vertical female contacts with slide lock actuator. Ideal for industrial, medical, communications, and computing applications.
