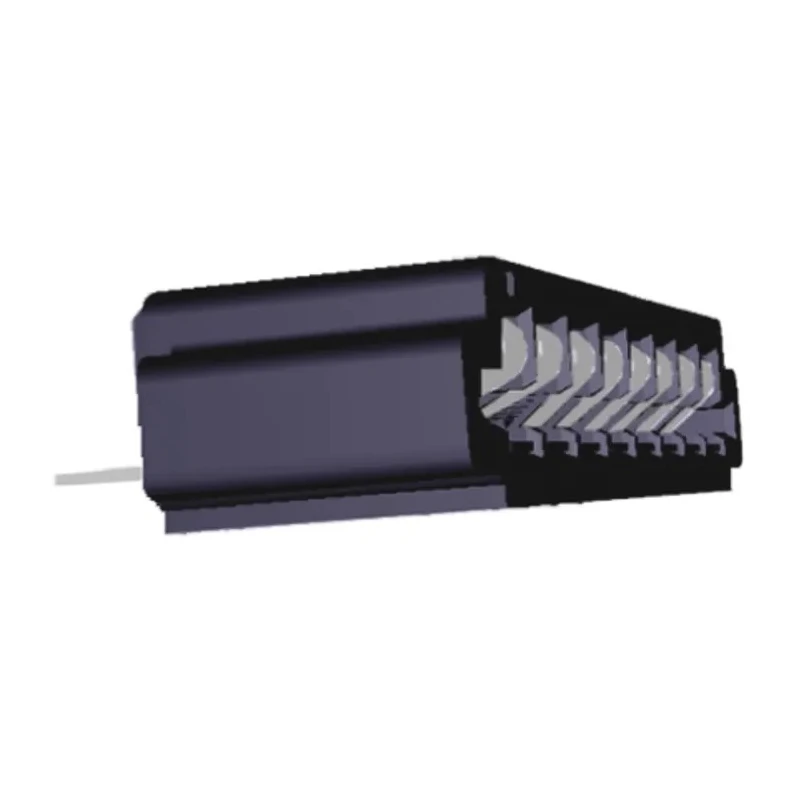

TE Connectivity Trio-Mate FPC Connector 2.54 mm Pitch 8 Way Straight Female Vertical Contact 5-520315-8

TE Connectivity 5-520315-8 Trio-Mate FPC Connector is a precision-engineered flexible film connector offering a 2.54 mm centerline pitch and 8 contacts arranged in a single row. This straight female connector uses vertical contacts designed for through-hole mounting, providing reliable connection for flexible flat cable (FFC), flexible printed circuit (FPC), and membrane switch technologies with thickness ranging from 0.13 to 0.38 mm. The contact material is phosphor bronze plated with tin for optimal electrical performance and durability.

Its housing is made of black polyethylene terephthalate plastic rated UL 94V-0, ensuring flame resistance and mechanical stability. The connector can handle a current up to 1 Amp and withstand voltages of 250V AC. It is rated to operate effectively within a broad temperature range from -55°C to 105°C, making it suitable for demanding industrial, electronic, and laboratory environments. The low insertion force mechanism allows easy mating and replacement with excellent extraction force.

The Trio-Mate connectors are reusable up to 25 cycles without degradation when used with cables of the same thickness. This product embodies TE Connectivity's commitment to high-quality, durable solutions tailored for power connectors and flexible circuit interconnects.

Constructed with phosphor bronze contacts for excellent conductivity. Features a polyethylene terephthalate housing with UL 94V-0 rating. Supports current rating of 1A and voltage up to 250V AC. Designed for through-hole mounting with low insertion force (LIF).

Operates in temperatures from -55°C to 105°C for versatile applications. Compatible with flexible flat cables (FFC), flexible printed circuits (FPC), and membrane switches. Contacts plated with tin and reusable up to 25 times with consistent cable thickness.

Manufactured in India ensuring quality and reliability. 8 contacts arranged in a single row with 2.54 mm pitch. Ideal for use in industrial, electronic component, and commercial PCB connection applications.

This connector is a key component for electronic assemblies requiring reliable flexible cable connections. It suits environments such as industrial automation, laboratory instrumentation, manufacturing assembly, and consumer electronics. Browse EnvMart's extensive electronics connector range for compatible accessories and related components.
