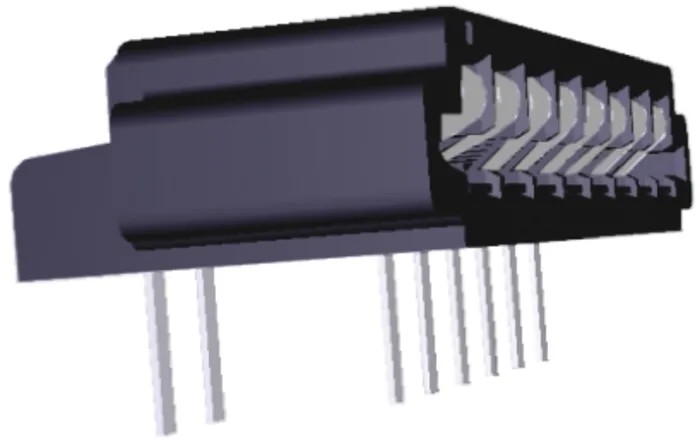

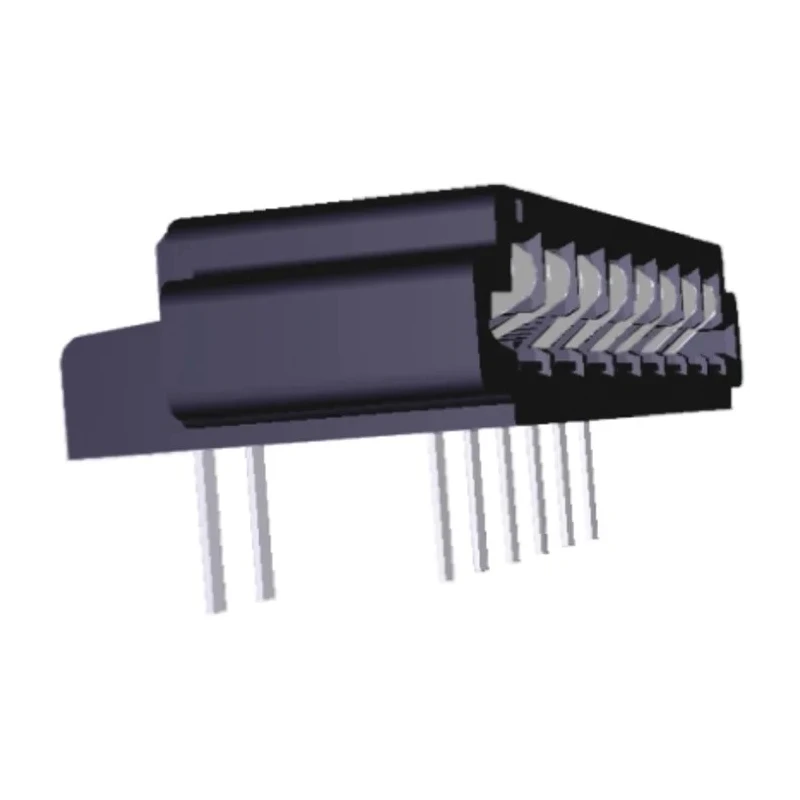

TE Connectivity Trio-Mate 2.54 mm Pitch 8 Way Right Angle Female FPC Connector Through Hole Solder 5-487508-7

TE Connectivity 5-487508-7 is a precision-engineered Trio-Mate flexible film connector designed for industrial and electronic applications requiring reliable connections of flat flexible cables (FFC) or flexible printed circuits (FPC) with thicknesses from 0.13 to 0.38 mm. The connector features an 8 contact layout with a 2.54 mm pitch and right angle orientation to suit compact PCB designs.

The female contacts are made of phosphor bronze with a tin over copper plating to ensure low electrical resistance and mechanical stability. The housing is constructed from black polyethylene terephthalate thermoplastic that meets UL 94V-0 flammability standards for safe operation.

This connector is rated for operation up to 250V AC and 1A current, making it suitable for various power and signal applications across industrial electronics, automation, and instrumentation. It maintains reliable mechanical engagement through low insertion force, allowing easy mating and unmating without damage.

Operating temperature range from -55°C to 105°C ensures performance in harsh environments typical in manufacturing, laboratory, and commercial electronic assemblies. Its reusable design supports multiple insertions with a consistent mechanical and electrical connection, improving lifecycle and reducing maintenance costs. TE Connectivity's Trio-Mate connectors are widely trusted for their durability and interoperability in PCB wiring solutions.

Supports 8 contacts with a pitch of 2.54 mm for precise spacing. Manufactured with tin-over-copper plated phosphor bronze contacts for reliable conductivity. Thermoplastic housing complies with UL 94V-0 for fire resistance.

Right angle through-hole solder mount for secure PCB attachment. Rated for 1A current and 250V AC voltage operation. Low insertion force connector designed for repeated use. Operating temperature range from -55°C to 105°C for industrial suitability.

Reusable up to 25 mating cycles with designed cable thickness. Made in India ensuring quality manufacturing standards.

This product is ideal for electronic component manufacturing, instrumentation, industrial machinery, and commercial electronics applications requiring durable and precise flexible cable connectors. Detailed technical data, 3D models, and design support are available through TE Connectivity resources and DesignSpark software.
