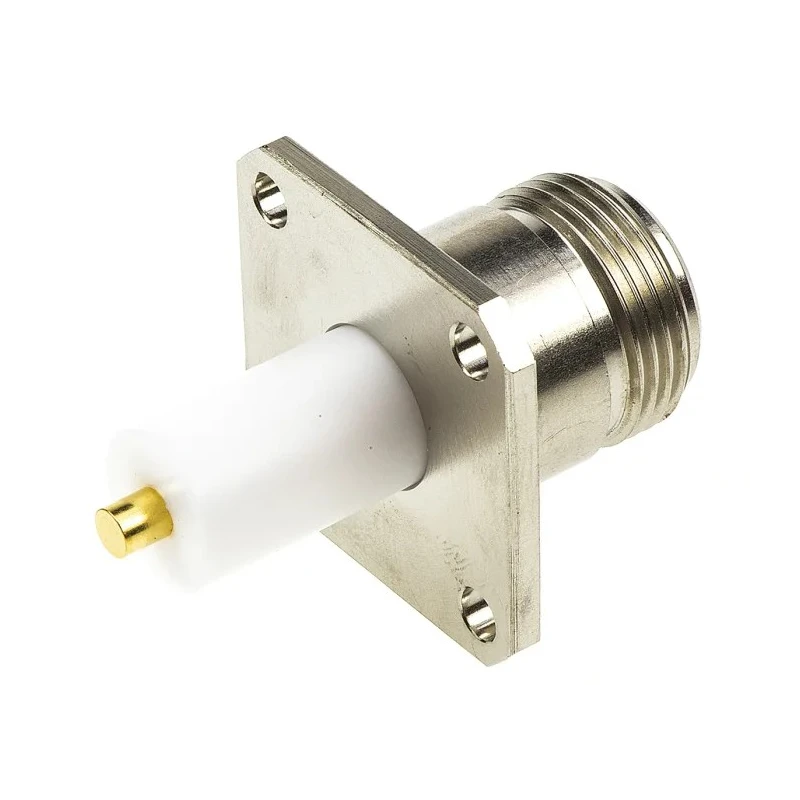

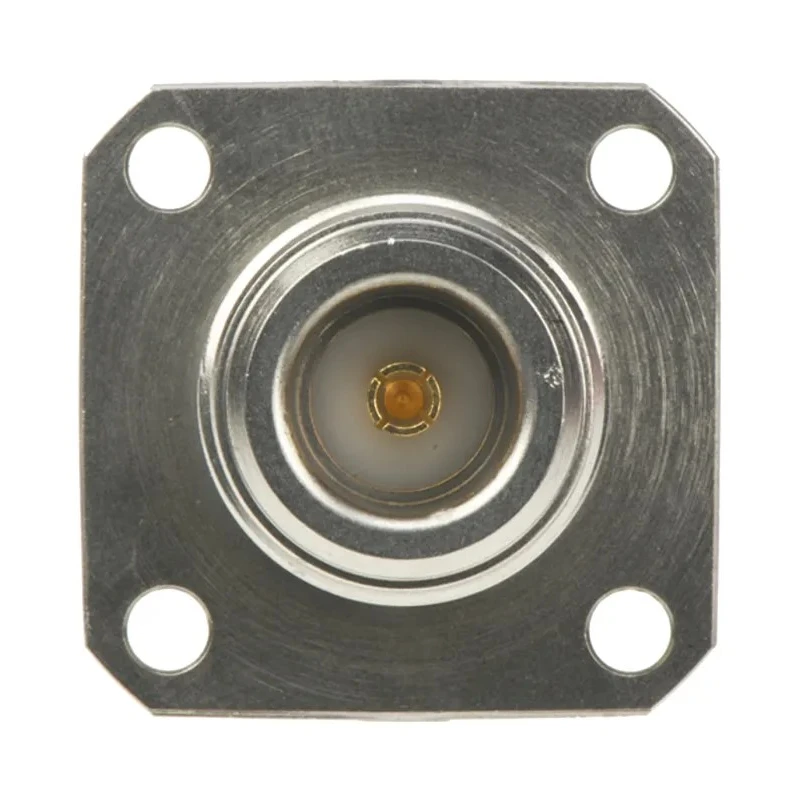

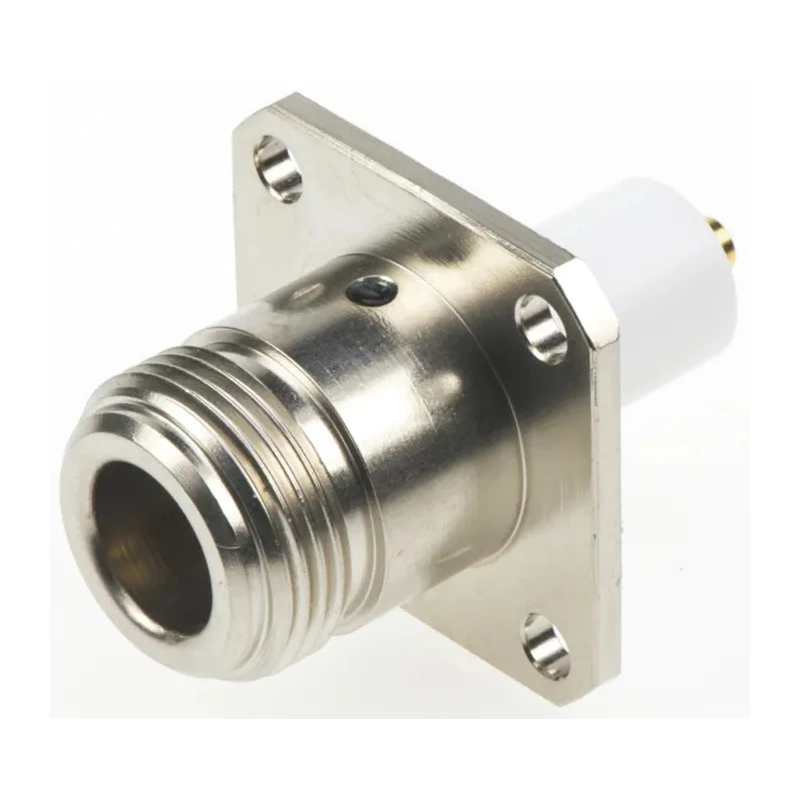

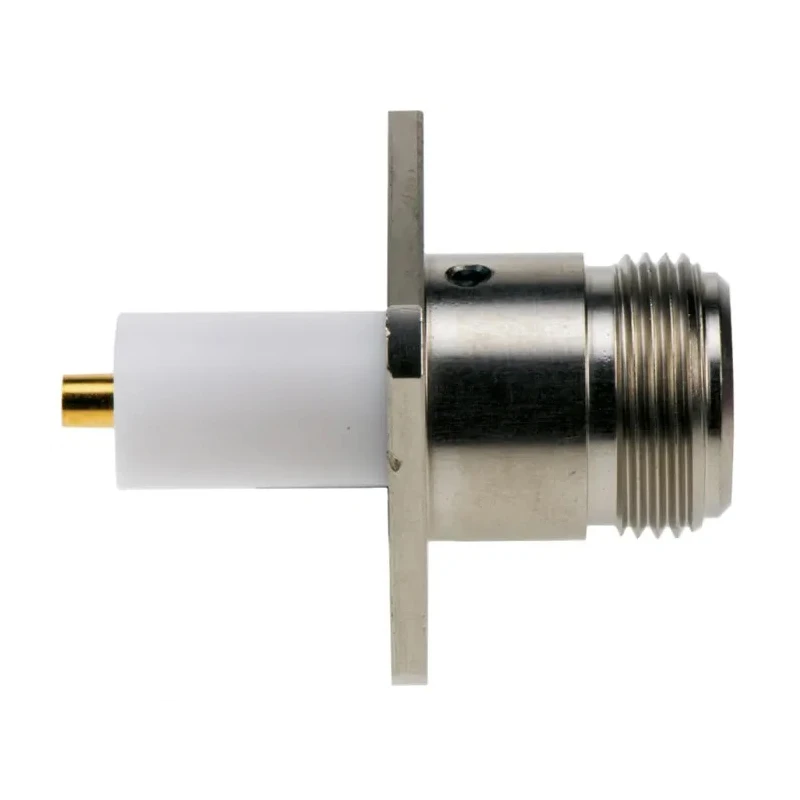

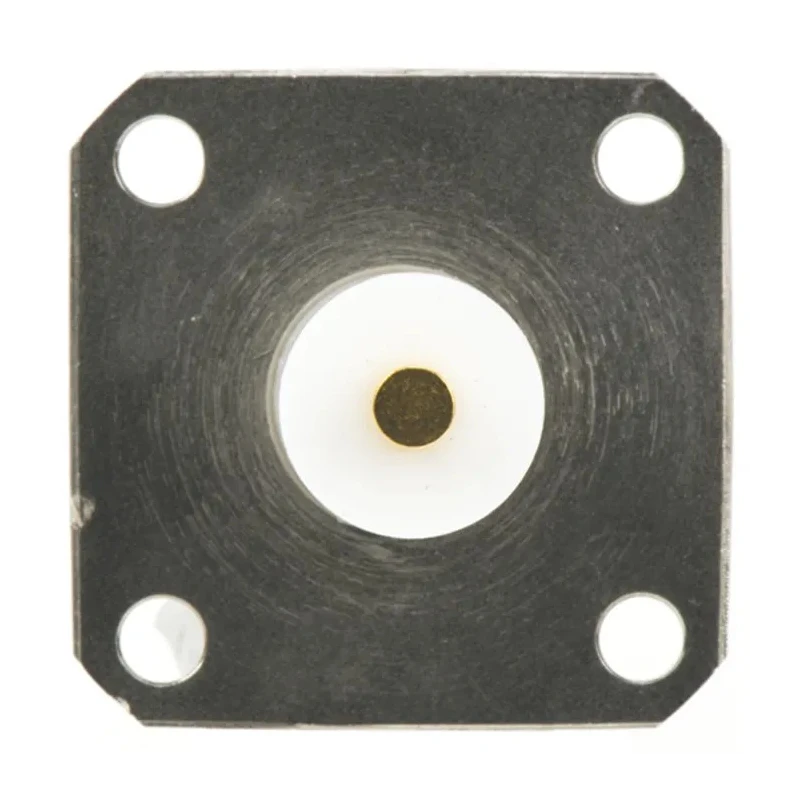

TE Connectivity N Series Panel Mount Female N Coaxial Connector 50 Ω Straight Body Solder 1057290-1
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Panel Mount |
| Operating Frequency | 11GHz |
| Contact Material | Beryllium Copper |
| Series | N |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 713-0984Brand: TE ConnectivityManufacturers Part No.: 1057290-1Distrelec Article No.: 30268690 |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | N Connector |
| Body Plating | Nickel |
Key Features
- Designed for panel mount applications providing a reliable coaxial connection.
- Operates efficiently up to 11 GHz frequency ensuring high-frequency signal integrity.
- Nickel body plating offers excellent corrosion resistance and durability.
- Contact material is beryllium copper with gold plating for superior conductivity.
- Suitable for operating temperatures from -65°C to 165°C.
- Standard size with straight body orientation and normal polarity.
- Female connector gender matches typical coaxial cable requirements.
- Solder termination type ensures a strong and stable electrical connection.
Product Description
TE Connectivity 1057290-1 N Series Panel Mount Female N Coaxial Connector offers a robust solution for RF coaxial connections with an impedance of 50 Ω. Designed with a straight body and solder termination, this connector supports high-frequency applications up to 11 GHz, making it suitable for advanced electronic systems.
The body is plated with nickel, providing excellent protection against corrosion while maintaining mechanical strength. The contacts are manufactured using beryllium copper with a gold plating finish to ensure enhanced conductivity and reduced signal degradation. Operating over a broad temperature range from -65°C to 165°C, this connector is well suited for harsh environments and demanding industrial uses.
This panel mount connector features a female contact gender and normal polarity, typical for coaxial connector standards, simplifying installation in various devices and equipment. The standard size and straight orientation allow it to fit commonly used mounting configurations, supporting reliability in telecommunications, laboratory instrumentation, and manufacturing setups.
Mil-type quality standards make the 1057290-1 series dependable for industrial and commercial applications where durability and signal fidelity are critical. It is a preferred choice in electronics assembly lines, wireless communications infrastructure, and RF testing equipment.
This connector type supports panel mounting with four mounting holes for secure installation. Its TFE fluorocarbon dielectric stabilizes electrical performance ensuring minimal interference. Gold plated contacts provide enhanced signal quality and corrosion resistance.
The nickel plated brass body contributes to longevity and robust mechanical protection. Compatible with MIL type specifications suitable for demanding RF applications.
End users in electronics manufacturing, telecommunications, laboratory instrument design, and aerospace industries will benefit from the reliable performance and quality construction of this component. Browse our extensive catalogue at EnvMart for more TE Connectivity RF Coaxial Connectors and related electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this coaxial connector is 11 GHz, ensuring high-frequency signal integrity.
The impedance of this connector is 50 Ω, which is standard for RF coaxial applications.
The contacts are made of beryllium copper and are plated with gold to enhance conductivity and reduce signal degradation.
This connector operates efficiently within a temperature range of -65°C to 165°C, making it suitable for harsh environments.
This model features a solder termination type, which ensures a strong and stable electrical connection.
It supports panel mounting with four mounting holes for secure installation.
The body of this connector is plated with nickel, providing excellent corrosion resistance and mechanical strength.
The connector gender is female, which matches typical coaxial cable requirements.
This model has a straight body orientation, which is standard for many applications.
This connector is suitable for use in electronics manufacturing, telecommunications, laboratory instrumentation, and aerospace industries.
The connector features a TFE fluorocarbon dielectric, which stabilizes electrical performance and minimizes interference.
The country of origin for this connector is India.
