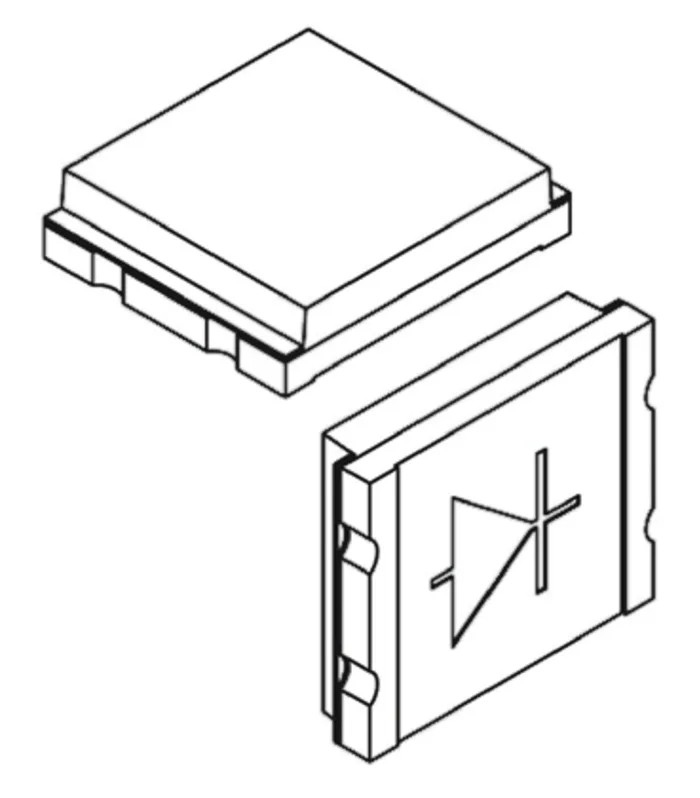

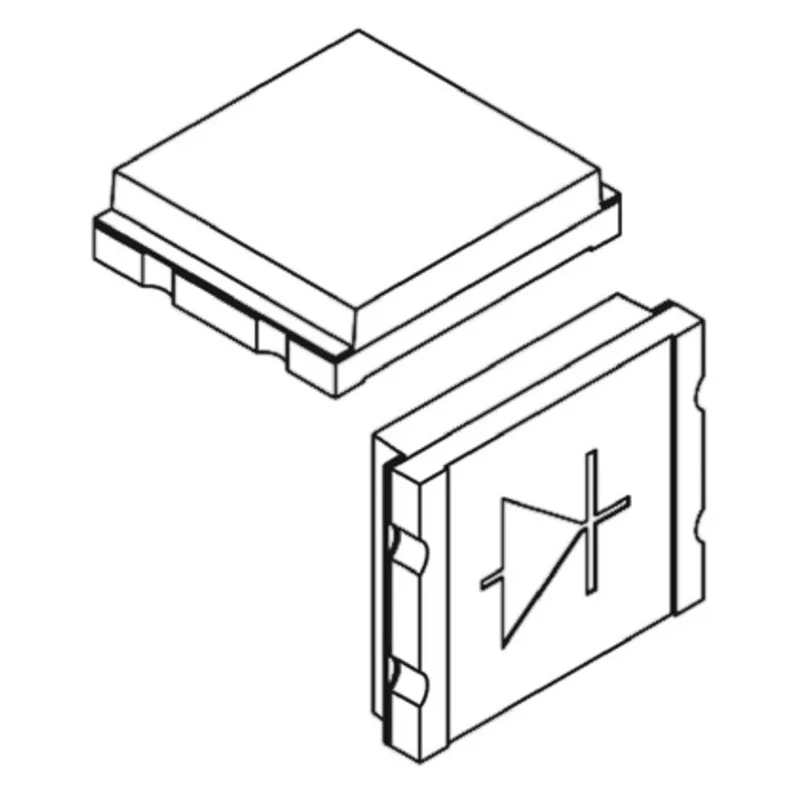

Vishay Infrared Ultraviolet Visible Light Photodiode Surface Mount, ±65°, 5 x 4.24 x 1.12 mm TEMD5080X01
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Vishay |
| Dimensions | 5 x 4.24 x 1.12 |
| Height | 1.12mm |
| Length | 5mm |
| Model | TEMD5080X01 |
| Packaging | Tape & Reel |
| Width | 4.24mm |
| Mount Type | Surface |
| Series | TEMD |
| Short Circuit Current | 50μA |
| Maximum Operating Temperature | 100°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Polarity | Forward |
| Open Circuit Voltage | 350mV |
| Standards/Approvals | WEEE 2002/96/EC, RoHS Directive 2002/95/EC |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-5045 Brand: [Vishay](https://in.rsdelivers.com/brands/vishay)Manufacturers Part No.: TEMD5080X01 |
| Number of Pins | 2 |
| Typical Fall Time | 40ns |
| Automotive Standard | AEC-Q101 |
| Wavelength of Peak Sensitivity | 940nm |
| Spectrums Detected | Infrared, Ultraviolet, Visible Light |
| Breakdown Voltage | 25V |
| Minimum Wavelength Detected | 350nm |
| Maximum Wavelength Detected | 1100nm |
| Angle of Half Sensitivity | ±65 ° |
Key Features
- Detects infrared, ultraviolet, and visible spectrums effectively.
- Compact surface mount package measuring 5 x 4.24 x 1.12 mm.
- Features enhanced blue photo sensitivity with fast response times.
- Operates reliably from -40°C to 100°C temperature range.
- Offers a typical rise and fall time of 40 nanoseconds for high-speed detection.
- Includes a sensitive chip area of 7.7 mm² for precise photo detection.
- Equipped with forward polarity and operates at a breakdown voltage of 25 V.
- Compliant with WEEE 2002/96/EC and RoHS 2002/95/EC standards.
Product Description
Vishay TEMD5080X01 is a high-performance PIN photodiode designed to detect infrared, ultraviolet, and visible light spectrums with enhanced blue sensitivity. Housed in a compact surface mount device measuring 5 x 4.24 x 1.12 mm, this photodiode provides a ±65° angle of half sensitivity, ensuring wide-area detection capability. Its sensitive chip area of 7.7 mm² and fast rise and fall times of 40 nanoseconds make it ideal for high-speed photo detector applications in industrial, laboratory, and optical systems.
The TEMD5080 series features forward polarity and a breakdown voltage of 25 V, with short circuit current rated at 50 μA and an open circuit voltage of 350 mV, supporting reliable electrical performance. Its operational temperature range from -40 to 100°C ensures durability across demanding environments. The device complies with WEEE and RoHS directives, underlining environmental and safety compliance.
This photodiode is delivered in tape and reel packaging, facilitating efficient placement in automated manufacturing processes. Applications span a range of electronic and optoelectronic systems including sensing, measurement, and signal detection.
Detects infrared, ultraviolet, and visible spectrums effectively. Compact surface mount package measuring 5 x 4.24 x 1.12 mm. Features enhanced blue photo sensitivity with fast response times. Operates reliably from -40°C to 100°C temperature range.
Offers a typical rise and fall time of 40 nanoseconds for high-speed detection. Includes a sensitive chip area of 7.7 mm² for precise photo detection. Equipped with forward polarity and operates at a breakdown voltage of 25 V.
Compliant with WEEE 2002/96/EC and RoHS 2002/95/EC standards. Packaged in tape and reel format optimized for automated assembly. Manufactured in Malaysia ensuring consistent quality. Explore Vishay photodiodes and related optoelectronics components within EnvMart for dependable solutions tailored to advanced electronic manufacturing needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates reliably within a temperature range of -40°C to 100°C.
The dimensions of the TEMD5080X01 are 5 mm in length, 4.24 mm in width, and 1.12 mm in height.
It has an angle of half sensitivity of ±65°, allowing for wide-area detection capability.
The photodiode features a typical rise and fall time of 40 nanoseconds, suitable for high-speed detection applications.
This unit effectively detects infrared, ultraviolet, and visible light spectrums.
The breakdown voltage is rated at 25 V, supporting reliable electrical performance.
It includes a sensitive chip area of 7.7 mm² for precise photo detection.
The open circuit voltage is rated at 350 mV.
This photodiode is delivered in tape and reel packaging, facilitating efficient placement in automated manufacturing processes.
It is compliant with WEEE 2002/96/EC and RoHS 2002/95/EC standards.
The short circuit current is rated at 50 μA.
This model meets the AEC-Q101 automotive standard.
