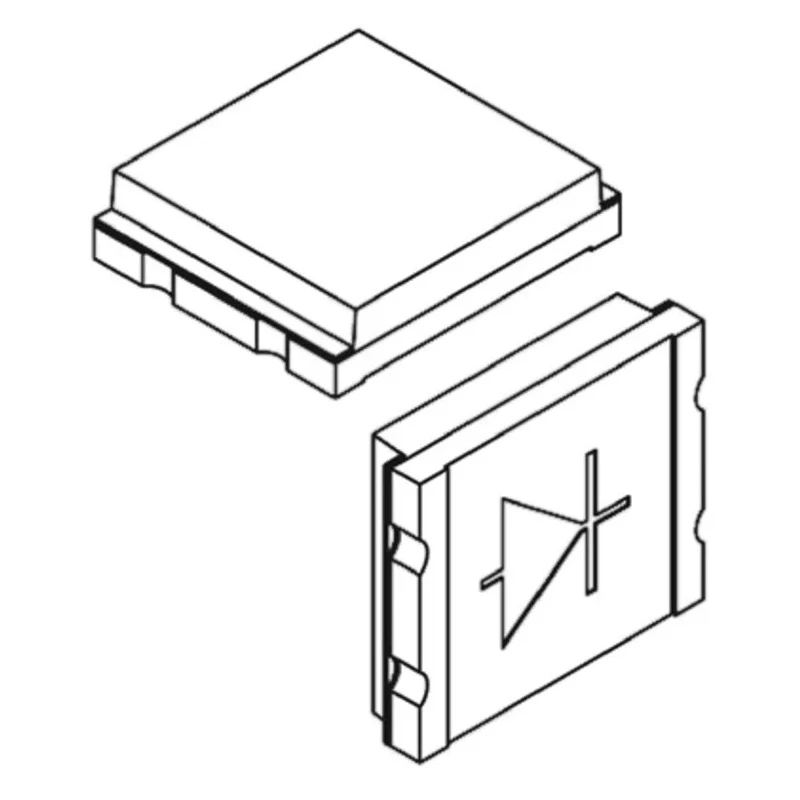

Vishay Infrared, Visible Light Photodiode, ± 65° Half Sensitivity Angle, Surface Mount, Tape & Reel, 4 Pins, 5 x TEMD5010X01

Vishay TEMD5010X01 is a high-performance silicon PIN photodiode designed for infrared and visible light detection, featuring a ± 65° half sensitivity angle and surface mount top view package. This photodiode provides high radiant and photo sensitivity with fast response times, making it suitable for demanding industrial, laboratory, and optical communication applications.

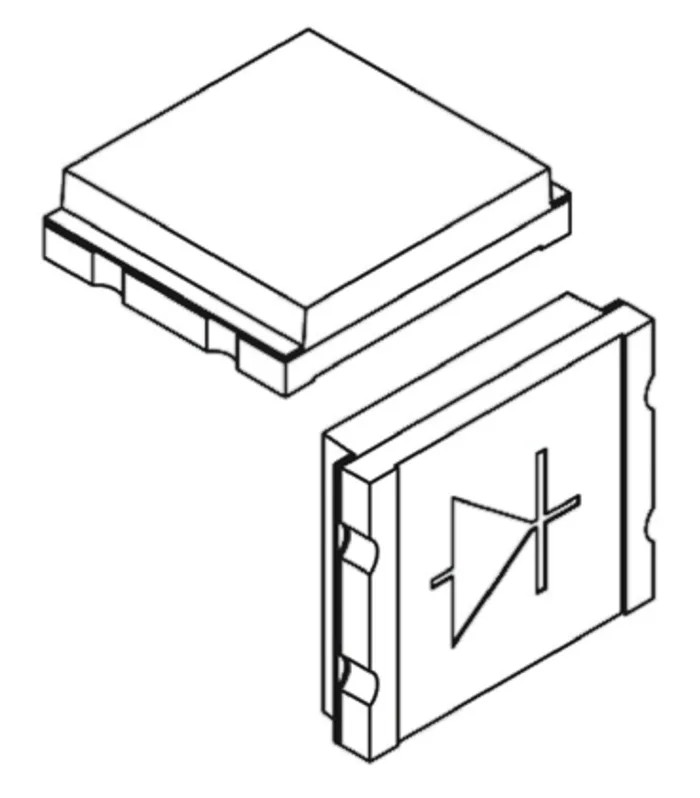

The device measures 5 mm in length, 4.24 mm in width, and 1.12 mm in height, with a sensitive area of 7.5 mm². It is packaged in tape & reel form facilitating efficient automated PCB assembly. Its spectral sensitivity ranges from 430 nm (minimum) to 1100 nm (maximum), with a peak sensitivity wavelength at 940 nm.

The TEMD5010X01 supports fast optical switching with typical rise and fall times of 100 ns. It operates reliably in harsh environments with a wide temperature range from -40°C to 100°C and complies with automotive standard AEC-Q101. The photodiode is not amplified and has a forward polarity with a short circuit current of 50 μA, suitable for precise photodetection.

This photodiode has a breakdown voltage of 60 V and an open circuit voltage of 350 mV, offering robust electrical characteristics for diverse applications including sensor systems, optical data transmission, and high-speed photodetector designs.

It complies with major industry standards including RoHS 2002/95/EC, WEEE 2002/96/EC, and J-STD-020, ensuring environmental compliance and quality assurance. The device’s compact dimensions and surface mount configuration make it ideal for embedded systems and space-constrained designs.

High-speed silicon PIN photodiode for infrared and visible light detection. Compact surface mount top view package measuring 5 x 4.24 x 1.12 mm. Sensitivity wavelength range from 430 nm to 1100 nm with peak at 940 nm. Typical rise and fall times of 100 ns for fast response.

Operating temperature range: -40°C to 100°C. Compliance with automotive standard AEC-Q101 and RoHS/WEEE directives. Breakdown voltage of 60 V with forward polarity and 50 μA short circuit current.

This Vishay photodiode is widely used in industrial, laboratory, automotive, and communication fields, offering reliable performance for optical sensing and detection tasks. Explore more Vishay photodiodes and related optoelectronic components on EnvMart.
