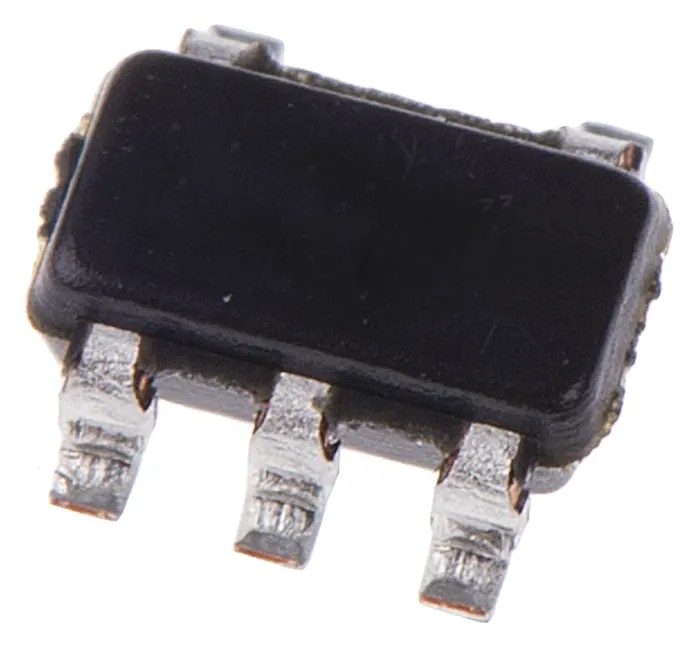

Texas Instruments Operational Amplifier 1.4 MHz, 5-Pin 18V SOT-23 OPA237NA/250

Texas Instruments OPA237NA/250 is a general purpose operational amplifier designed for electronic circuits requiring optimized gain bandwidth and efficiency. This surface mount device in a SOT-23 package offers a 1.4 MHz gain bandwidth product, making it suitable for small signal amplification and filtering tasks.

The amplifier operates on a single channel with a 5-pin design compatible with compact PCB layouts. Its operating voltage range from 5V minimum to a maximum of 18V provides versatility across multiple power supplies. The device features a low input bias current of -40 nA and an input offset voltage of ±750 µV, assuring precise amplification accuracy for sensitive analog signals.

With dimensions measuring 2.9 mm in length, 1.6 mm in width, and 1.15 mm in height, the OPA237NA/250 fits well in space-constrained applications. Its slew rate of 0.5 V/μs enables competent speed performance for dynamic signals. The operating temperature range from -40°C to 85°C ensures its usability in industrial environments with varied thermal conditions.

Designed for general purpose amplification applications. Single channel amplifier with 5-pin configuration. Operates with supply voltages from 5V to 18V. Features low input bias current and low input offset voltage. Compact SOT-23 package dimensions.

Suitable for industrial, laboratory, and electronic equipment circuits. Complies with RoHS directives for environmental safety.

This amplifier is ideal for use in industrial electronics, laboratory instrumentation, and other semiconductor applications requiring reliable analog signal processing. The compact SOT-23 packaging supports modern PCB manufacturing and design requirements.

Explore the Texas Instruments Operational Amplifier range on EnvMart for reliable semiconductor components optimized for your engineering projects and industrial electronics needs.
