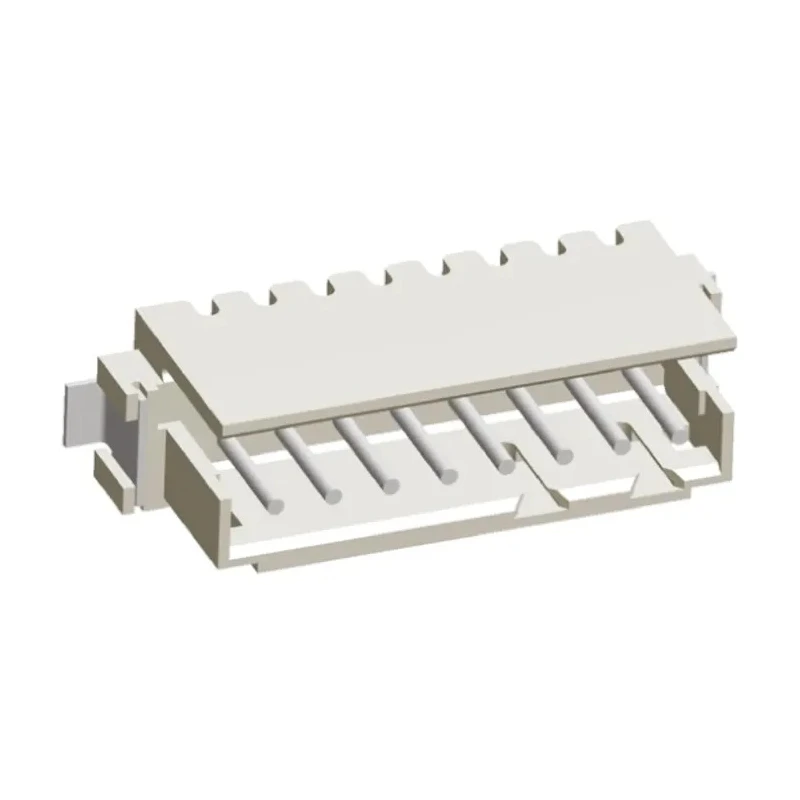

TE Connectivity AMP CT Series Straight Surface PCB Header 8 Contacts 2 mm Pitch 1 Row Shrouded 292175-8
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 4A |
| Model | 292175-8 |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | AMP CT |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 706-7877PBrand: TE ConnectivityManufacturers Part No.: 292175-8 |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed with nylon housing for durability and insulation.
- Brass male contacts plated with tin ensure reliable conductivity.
- Designed for surface mount with solder termination type for stable PCB connection.
- Operating temperature ranges from -30°C to 105°C for versatile applications.
- Supports a voltage rating of 125V and current up to 4A.
- Features polarization and mating retention for accurate and secure connector mating.
- Solder tabs provide additional mechanical stability to the PCB connection.
- Available with PCB locating bosses for precise alignment during mounting.
Product Description
TE Connectivity 292175-8 AMP CT Series Straight Surface PCB Header is a high-quality connector designed for wire-to-board applications. It features 8 male contacts arranged in a single row with a 2 mm pitch, housed in durable nylon for excellent insulation and protection. This shrouded header offers protection against contact damage during mating and unmating, enhancing connector lifespan and reliability.
Constructed with brass contacts plated with tin, the AMP CT connector supports a voltage rating of 125V and a current capacity of 4A, making it suitable for a variety of electrical and electronic equipment. The termination is solder type designed for surface mounting onto PCBs, with extra solder tabs to ensure a secure mechanical and electrical connection. Its operating temperature range from -30°C to 105°C allows for use in diverse industrial environments.
The design incorporates polarization and mating retention features, preventing incorrect mating and ensuring a firm connection with mating cable connectors. Some variants include PCB locating bosses for precise positioning on printed circuit boards, facilitating automated assembly.
These connectors are widely used in business equipment, industrial machines, personal computers, printers, CCTV systems, audio devices, and air conditioning systems. The AMP CT 2 mm miniature interconnection system provides reliable wire harness making capability for wire-to-board and wire-to-wire applications.
Durable nylon housing protects contacts effectively. Brass contacts with tin plating provide durability and conductivity. Shrouded design prevents contact damage during mating/unmating. Polarization and mating retention prevent misalignment and ensure secure connection.
Solder tabs enhance mechanical stability on PCB. Supports 125V voltage and 4A current ratings. Operates reliably from -30°C to 105°C in various industrial conditions. Available with PCB alignment bosses for precise mounting.
Ideal for industrial, commercial electronics and HVAC equipment applications.
This TE Connectivity AMP CT Series PCB Header is an essential component for advanced PCB assemblies, supporting reliable interconnections in diverse electrical systems. Explore further electronic connectors and components suitable for your industrial needs at EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a voltage rating of 125V and a current capacity of 4A.
It features a 2 mm pitch and has 8 male contacts arranged in a single row.
The housing is made from nylon, while the contacts are brass plated with tin for reliable conductivity.
It operates reliably within a temperature range of -30°C to 105°C.
The termination type is solder, designed for surface mounting onto PCBs.
Yes, it incorporates polarization and mating retention features to prevent misalignment and ensure secure connections.
It is widely used in business equipment, industrial machines, personal computers, printers, CCTV systems, audio devices, and HVAC equipment.
The contacts are shrouded to provide protection against contact damage during mating and unmating.
Yes, it includes solder tabs that enhance mechanical stability on the PCB connection.
This model is designed for wire-to-board applications.
Yes, the country of origin for this connector is India.
Some variants include PCB locating bosses that assist in precise positioning during mounting.
