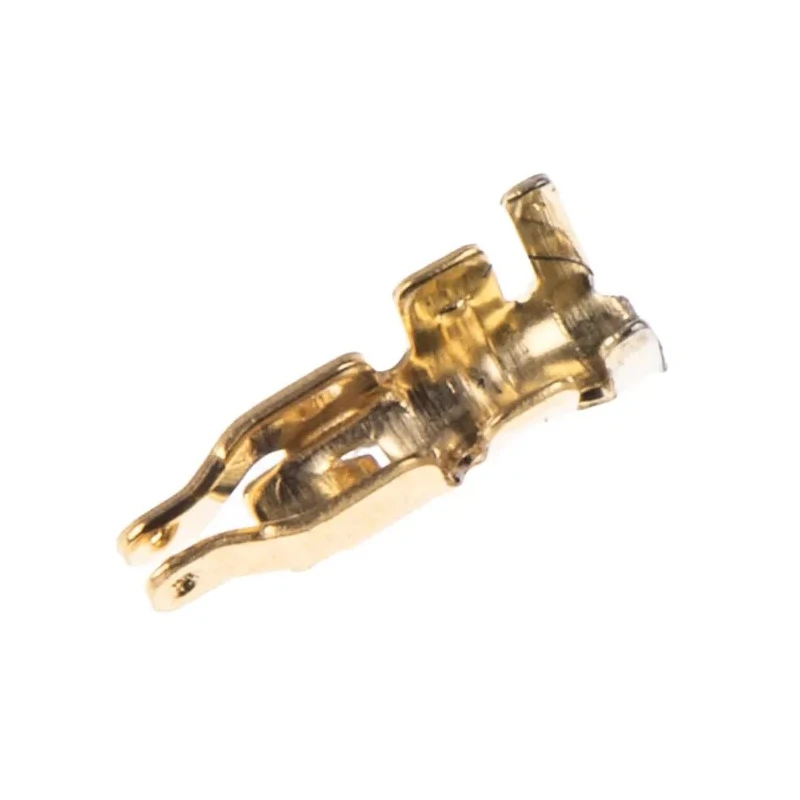

Molex 78172 Series Female Crimp Terminal 30 AWG Min Crimp, 28 AWG Max 78172-0410

Molex 78172-0410 female crimp terminal is a precision-engineered connector component used primarily in Pico-Ezmate 1.2mm wire to board applications. It features a compact, low-profile design optimized for secure and efficient electrical connections in demanding electronic assemblies.

Constructed from phosphor bronze with gold plating, this crimp terminal offers superior corrosion resistance and excellent electrical performance. It is rated for 1.5 amperes current with a typical maximum contact resistance of 20 milliohms, assuring minimal signal loss and reliable conductivity.

The terminal supports wire sizes from 30 AWG (0.05 mm²) up to 28 AWG (0.09 mm²), with a maximum insulation diameter of 0.60 mm. This allows for flexibility in wire selection within electronic assemblies requiring compact terminal solutions.

Its operating temperature range of -40°C to 105°C makes it suitable for industrial, laboratory, manufacturing, and commercial electronic applications where temperature extremes may be encountered.

Termination is by crimping, which guarantees strong mechanical and electrical connections and is designed for use exclusively with Molex Pico-Ezmate 78172 series receptacle housings.

This product complies with European RoHS standards, ensuring it meets current environmental and safety regulations for hazardous substances.

Manufactured in Malaysia, the Crimp Terminal housings are made from high-quality halogen-free resin materials that are rated 94 V-0 for flame resistance, enhancing safety in various electronic environments.

The product is ideal for industrial electronics assembly lines requiring high reliability, excellent electrical characteristics, and environmental compliance. It is typically used in power connectors, PCB interconnects, and wire housing systems.

Constructed from phosphor bronze with gold plating for enhanced conductivity and corrosion resistance. Rated for a current of 1.5 amperes with a maximum contact resistance of 20 milliohms. Accommodates wire sizes from 30 AWG (0.05mm²) minimum to 28 AWG (0.09mm²) maximum.

Operating temperature range from -40°C up to 105°C suitable for diverse environments. Termination type is crimp for secure electrical connection in Pico-Ezmate connector housings. Designed specifically for use with Pico-Ezmate 78172 series receptacle housings.

Complies with RoHS directives ensuring environmental safety and reduced hazardous substances. Manufactured in Malaysia using halogen-free resin housing materials rated 94 V-0 for flame retardancy. Explore the extensive range of Molex connector solutions on EnvMart for industrial and electronic component requirements.
