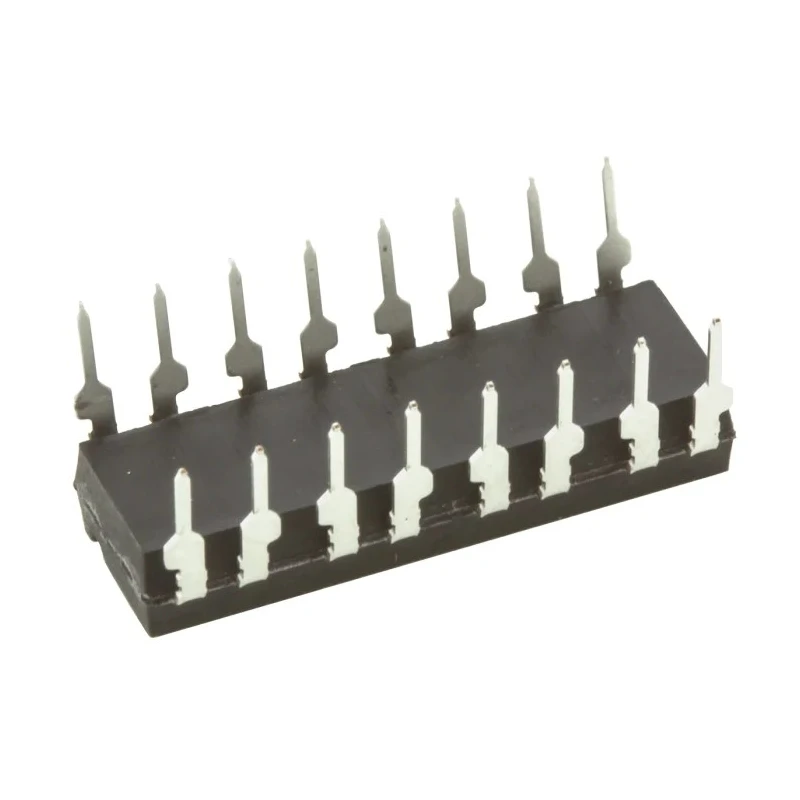

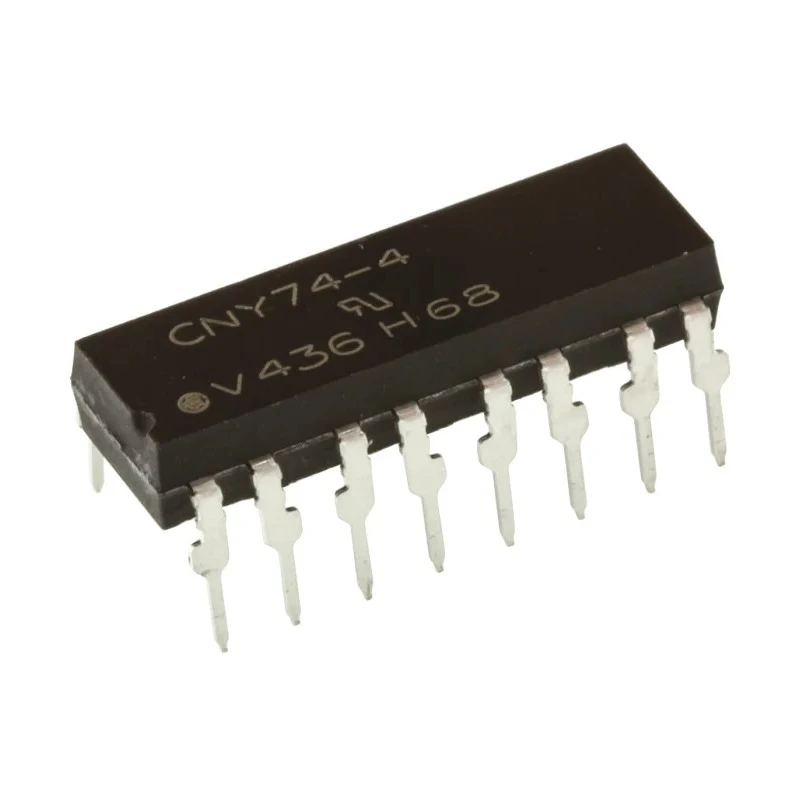

Vishay DC Input 4-Channel Optocoupler Through Hole 16-Pin PDIP CNY74-4H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | CNY74-4H |
| Mount Type | Through Hole |
| Series | CNY |
| Maximum Operating Temperature | 100°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 4 |
| Standards/Approvals | WEEE 2002/96/EC, CSA bulletin 5A, RoHS 2002/95/EC, UL1577 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-8170P Brand: [Vishay](https://in.rsdelivers.com/brands/vishay)Manufacturers Part No.: CNY74-4H |
| Maximum Forward Voltage | 1.6V |
| Number of Pins | 16 |
| Input Current Type | DC |
| Typical Rise Time | 3μs |
| Maximum Current Transfer Ratio | 600% |
| Typical Fall Time | 4.7μs |
| Minimum Current Transfer Ratio | 50% |
| Isolation Voltage | 5300V ac |
Key Features
- Operates with DC input current and provides transistor output.
- Isolation voltage of 5300V AC ensures safety in circuit isolation.
- Typical rise time of 3 microseconds and fall time of 4.7 microseconds enable fast switching.
- Supports a maximum input current of 60mA and maximum forward voltage of 1.6V.
- Designed for operating temperatures ranging from -55°C to 100°C.
- Maximum current transfer ratio of 600 percent enhances signal efficiency.
- Complies with industry standards including RoHS 2002/95/EC and UL1577.
- Packaged as a 16-pin PDIP through hole device from the CNY series.
Product Description
Vishay CNY74-4H is a 4-channel DC input optocoupler housed in a 16-pin PDIP package, designed for through hole mounting. It features transistor output suitable for various electronic applications requiring galvanic isolation.
This optocoupler delivers an isolation voltage rating of 5300V AC, assuring robust isolation between input and output circuits. The device efficiently operates with a typical rise time of 3 microseconds and a fall time of 4.7 microseconds, enabling quick response times in switching applications.
It supports a maximum forward voltage of 1.6V and an input current capacity up to 60mA, catering to diverse low-power control circuits. The maximum current transfer ratio rating of 600% ensures improved signal amplification efficiency. The operating temperature ranges from -55°C to 100°C, making it suitable for demanding environments.
This optocoupler complies with global environmental standards including RoHS 2002/95/EC and safety approvals such as UL1577, making it a reliable choice for industrial, manufacturing, electronics assembly, and instrumentation applications.
The CNY74-4H does not meet automotive standards but is well-suited for laboratory, industrial automation, and power electronics isolation needs. Its 16-pin PDIP through hole package ensures easy integration into PCB layouts requiring high channel density optocoupler solutions.
Operates with DC input and transistor output configuration. High isolation voltage of 5300V AC for safe circuit separation. Fast switching with 3µs rise time and 4.7µs fall time. Supports input current up to 60mA with 1.6V maximum forward voltage.
Wide operating temperature range from -55°C to 100°C. Complies with RoHS and safety approvals including UL1577. Packaged as a 16-pin PDIP through hole device in CNY series. Suitable for electronics, industrial automation, and instrumentation applications.
Explore more Vishay optocouplers and related electronic components on EnvMart to enhance your industrial and commercial projects with reliable isolation and signal transfer solutions.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum isolation voltage of this model is 5300V AC, ensuring robust circuit separation.
It has a typical rise time of 3 microseconds and a fall time of 4.7 microseconds, enabling fast switching capabilities.
This model supports a maximum input current of 60mA, suitable for various low-power control circuits.
The operating temperature range is from -55°C to 100°C, making it suitable for demanding environments.
It features 4 channels, allowing for multiple signal isolation in a compact package.
The maximum forward voltage supported by the optocoupler is 1.6V.
This optocoupler is designed for through hole mounting, packaged in a 16-pin PDIP format.
It complies with RoHS 2002/95/EC and UL1577, ensuring it meets industry safety and environmental standards.
The maximum current transfer ratio for this model is 600%, which enhances signal efficiency.
The country of origin for this optocoupler is India.
It is well-suited for laboratory, industrial automation, and power electronics isolation applications.
The minimum current transfer ratio is 50%, providing a baseline for signal amplification efficiency.
