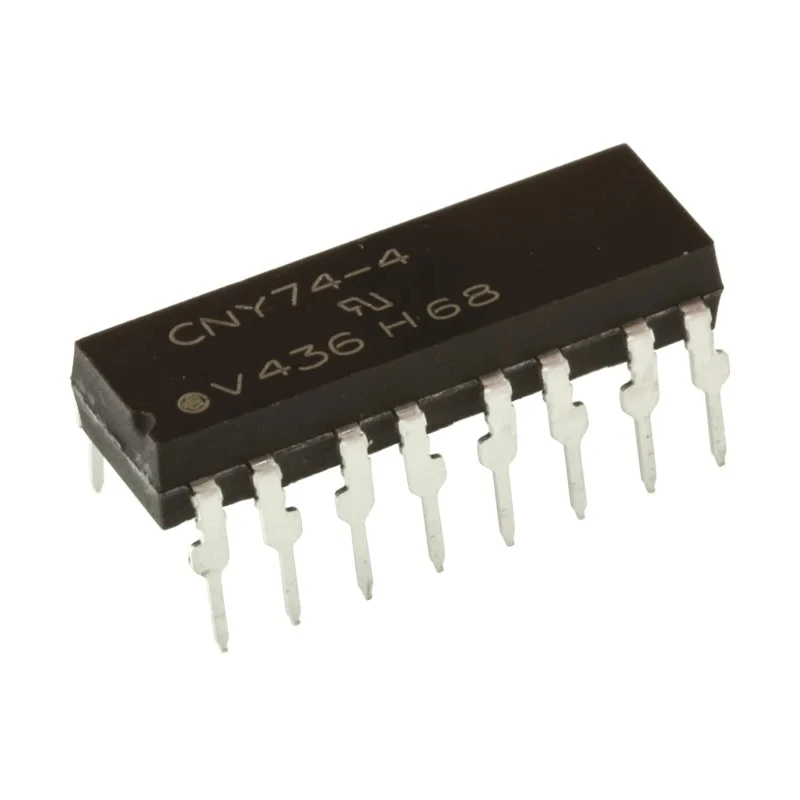

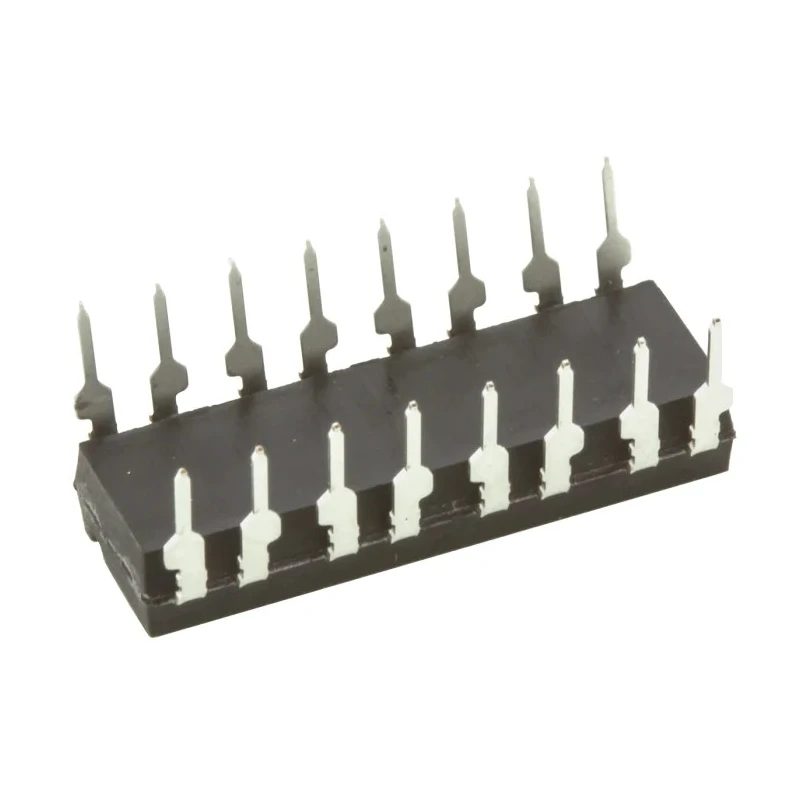

Vishay DC Input 4-Channel Optocoupler Through Hole 16-Pin PDIP CNY74-4H

Vishay CNY74-4H is a DC input 4-channel optocoupler designed to provide reliable isolation and signal transmission in electronic circuits. This component features a 16-pin PDIP package and supports through-hole mounting, which is ideal for industrial, laboratory, and manufacturing applications requiring robust optical isolation.

The optocoupler operates on DC input current with a maximum forward voltage of 1.6V and can handle input currents up to 60mA. Its isolation voltage of 5300V ac ensures effective electrical separation between input and output, enhancing safety and signal integrity. With a typical rise time of 3 microseconds and fall time of 4.7 microseconds, it provides fast switching speeds suitable for digital signal interfacing.

It supports a maximum current transfer ratio of 600%, with a minimum of 50%, ensuring efficient signal amplification. The device can operate in extreme temperatures, from -55°C to 100°C, making it suitable for demanding environments. The logic output makes it compatible with logic-level electronics.

Compliant with international standards including WEEE 2002/96/EC, RoHS 2002/95/EC, CSA bulletin 5A, and UL1577, this optocoupler meets stringent environmental and safety requirements. It forms part of the Vishay CNY series known for durable optoelectronic components.

This optocoupler is widely used in electronic components, power and connector assemblies, and optoelectronic applications requiring signal isolation and noise reduction. Its through-hole design facilitates easy PCB mounting and integration into circuit boards used in industrial controls, automation, and instrumentation.

Designed for DC input with a maximum forward voltage of 1.6V. Features 4 optical channels with isolation voltage rated at 5300V ac. Typical rise time of 3 microseconds and fall time of 4.7 microseconds. Supports maximum input current of 60mA and maximum current transfer ratio up to 600%.

Operates within a temperature range from -55°C to 100°C. Complies with WEEE 2002/96/EC, CSA bulletin 5A, RoHS 2002/95/EC and UL1577 standards. Packaged as a 16-pin PDIP suitable for through-hole mounting. Offers logic output and belongs to Vishay's CNY series of optocouplers.
