Panasonic PhotoMOS AQZ Series Solid State Relay, 2 A Load, PCB Mount, 100 V Load, 1.5V Control AQZ205

Free Delivery in India | Lowest Global Shipping Charges

Panasonic PhotoMOS AQZ Series Solid State Relay, 2 A Load, PCB Mount, 100 V Load, 1.5V Control AQZ205

Name: Panasonic PhotoMOS AQZ Series Solid State Relay, 2 A Load, PCB Mount, 100 V Load, 1.5V Control AQZ205
Brand: Panasonic
SKU: 352490
Price: 16.27 USD
Availability: InStock



Category Solid State Relay Brand Panasonic Condition New

Specifications

Country of Origin	Japan
Brand	Panasonic
Height	12.5mm
Length	21mm
Model	AQZ205
Width	3.5mm
Mount Type	PCB
Output type	MOSFET
Series	PhotoMOS AQZ
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Package Type	SIL-4
Minimum Operating Temperature	-40°C
Terminal type	PCB Terminal
Maximum Load Current	2A
Standards/Approvals	UL, cUL, RoHS, VDE
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	699-6635Brand: PanasonicManufacturers Part No.: AQZ205
Maximum Load Voltage	100V
Minimum Load Voltage	0V
Minimum Control Voltage	1.25V dc
Maximum Control Voltage	1.5V
Off State Leakage Current	10μA
On State Resistance	0.34Ω

Key Features

The relay features a slim SIL-4 pin package for high-density mounting.
It offers extremely low on-state resistance of 0.34 ohms for efficient performance.
Control voltage ranges between 1.25V dc minimum and 1.5V maximum.
The relay operates within a temperature range from -40°C to 85°C.
Its output type is MOSFET with a low off-state leakage current of 10 μA.
The terminal configuration is Single Pole Single Throw (SPST) with PCB terminals.
Ideal applications include railroad systems, traffic lights, measuring instruments, and industrial machinery.
It complies with UL, cUL, RoHS, and VDE standards and approvals.

Product Description

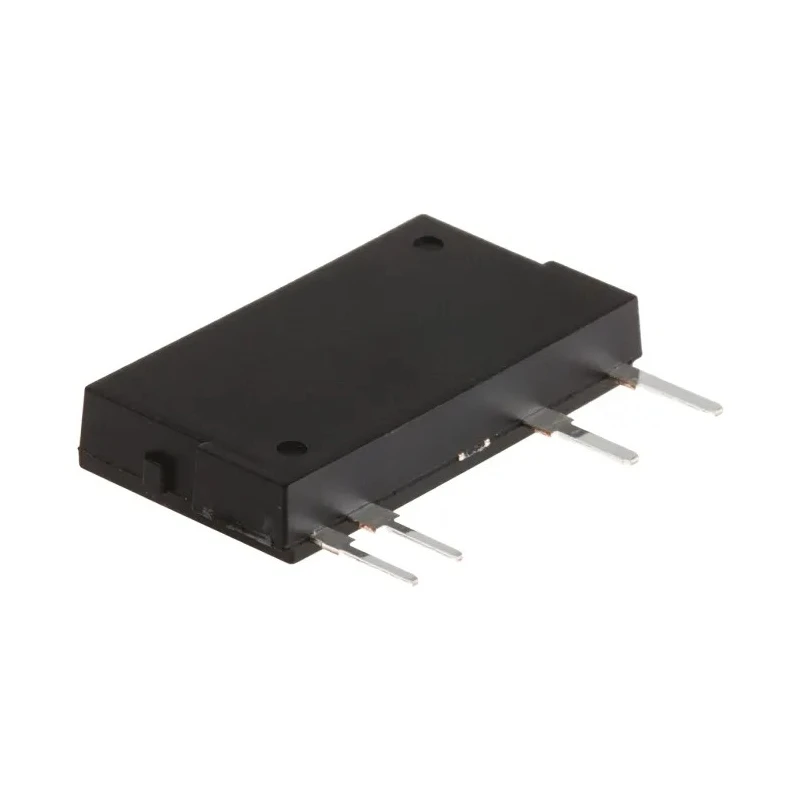

Panasonic AQZ205 Solid State Relay from the PhotoMOS AQZ Series offers reliable electronic switching for industrial and automation applications. Designed for PCB mounting, this relay supports a maximum load current of 2 A and a load voltage up to 100 V, making it suitable for compact control circuits.

The SIL-4 pin slim package (3.5 mm width, 21 mm length, 12.5 mm height) allows high-density mounting on PCBs, optimizing space in electrical designs. Featuring an extremely low on-state resistance of 0.34 Ω and MOSFET output type, it ensures low power losses and high efficiency.

The relay operates over a wide temperature range from -40°C to 85°C, ensuring durability in harsh industrial environments. Its low off-state leakage current of 10 μA minimizes energy consumption during idle states. Contact configuration is SPST with PCB terminals enabling easy integration into circuit boards.

Typical uses include control and signal switching in railroad systems, traffic control lights, measuring instruments, and various industrial machines. This product meets rigorous international standards such as UL, cUL, RoHS, and VDE for quality and safety assurance.

The relay incorporates a high capacity and excellent control of low-level signals. Its slim and compact form factor supports efficient PCB mount designs in industrial automation. Offers dependable performance in demanding electrical and automation environments.

Approvals ensure compliance with global safety and environmental regulations. Suitable for integration into industrial, measuring, and transportation equipment. Explore more Solid State Relays for varied industrial applications at EnvMart.
