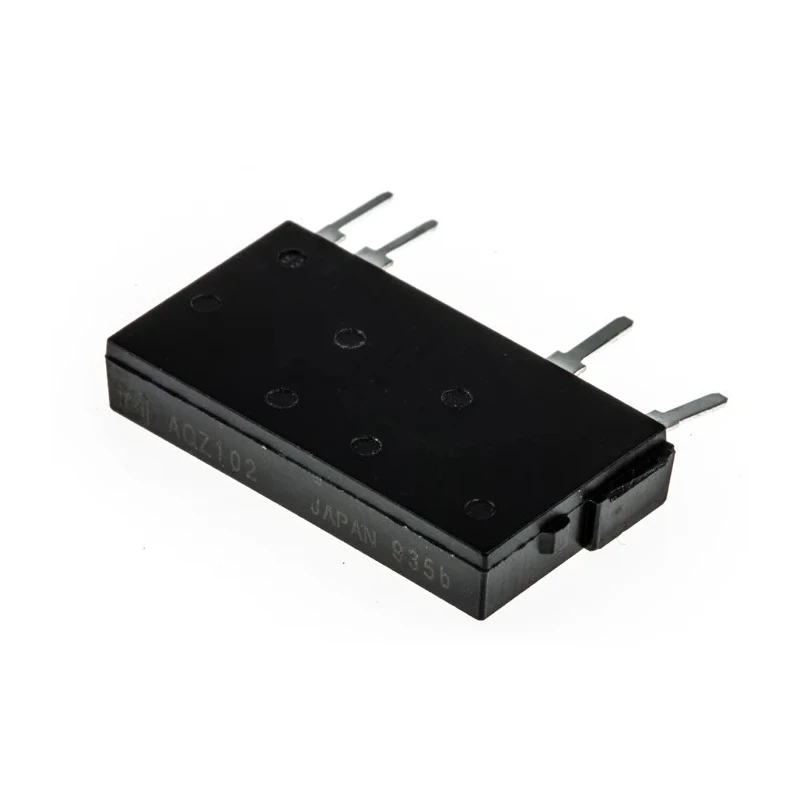

Panasonic PhotoMOS AQZ Series Solid State Relay, 4 A Load Current, PCB Mount, 60 V Load Voltage, 5 V DC Control AQZ102

Panasonic AQZ102 PhotoMOS AQZ Series Solid State Relay is a high-performance relay designed for PCB mount applications with a maximum load current of 4 A and load voltage of 60 V. Controlled by a DC voltage up to 5 V, this relay features an ultra-slim SIL-4 pin package allowing high density board mounting, dimensions being 3.5 mm width, 21 mm length, and 12.5 mm height.

This solid state relay employs a MOSFET output device with SPST contact configuration, providing extremely low on-state resistance of 90 milliohms which significantly reduces heat generation and improves efficiency. Its low off-state leakage current of 10 microamperes ensures minimal power consumption when switched off.

The relay operates reliably in a wide temperature range from -40°C up to 85°C, making it suitable for harsh industrial environments. The PCB terminal mounting and compact size enable versatile use in high-density systems.

Certifications including VDE, cUL, UL, and RoHS compliance guarantee adherence to international safety and environmental standards.

Typical industrial applications include use in railroad signal systems, traffic control lights, measuring instruments, and various industrial machinery requiring reliable and compact control relays.

The relay measures 3.5 mm in width, 21 mm in length, and 12.5 mm in height for compact integration. Maximum load current rating is 4 amperes, suitable for medium-load electrical controls. Control voltage range from 1.5 V DC minimum to 5 V DC maximum allows low-level control signaling.

Output device type is MOSFET enabling fast, silent switching operations. On-state resistance of 90 mΩ reduces power loss during conduction. SPST contact configuration makes it versatile for single-pole switching applications.

Operating temperature range from -40°C to 85°C supports varied industrial climates. Compliance to VDE, cUL, UL, and RoHS standards ensures safety and environmental responsibility.

This Panasonic PhotoMOS AQZ Series Solid State Relay AQZ102 is ideal for industrial automation, railway signaling, traffic management systems, and instrumentation requiring compact, reliable switching solutions. Browse our Electronics & Electricals category for related industrial relays and automation components on EnvMart.
