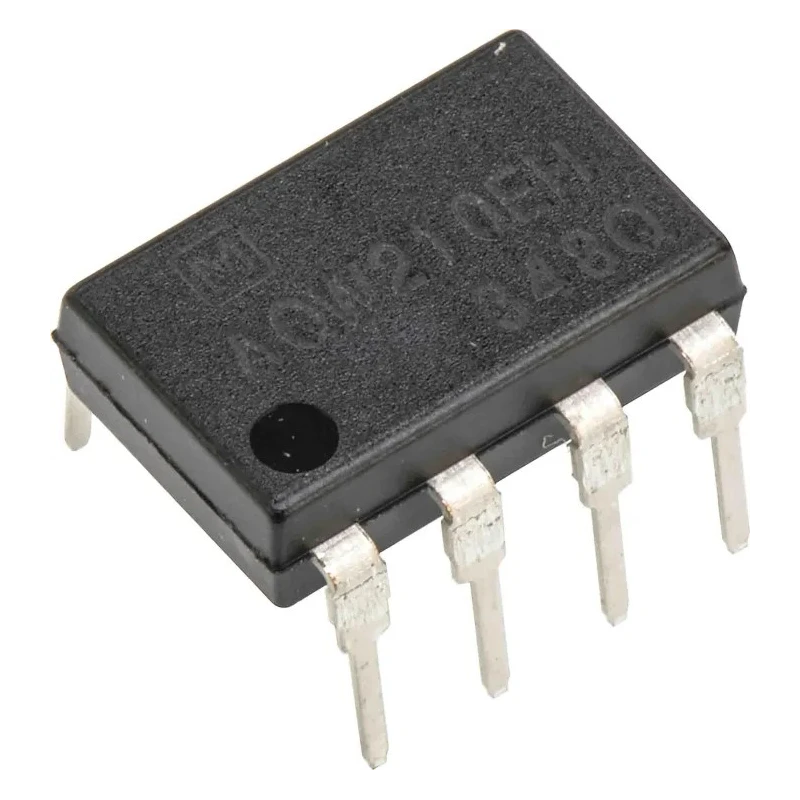

Panasonic Solid State Relay 40 mA Load 600 V Load 1.5V Control AQW2xxEH

Panasonic AQW216EH Solid State Relay is designed for low-level analog signal switching and control applications. It supports a maximum load current of 40 mA and a high load voltage of up to 600 V, making it suitable for industrial automation and electrical signal conditioning.

This relay operates efficiently between temperatures of -40°C to 85°C and features a low on-state resistance of 0.83Ω, reducing power dissipation. The minimal off-state leakage current of 1 μA ensures energy efficiency during operation. Its DPST contact configuration and through-hole DIP-8 packaging offer easy integration into circuit boards.

The relay uses a PhotoMOS output type, providing electrical isolation and reliable solid-state switching without mechanical parts, increasing durability and lifetime. It requires a control voltage between 1.14 V minimum and 1.5 V maximum, enabling precise switch control in automated systems.

Supports maximum load current of 40 mA for accurate signal control. Maximum load voltage up to 600 V accommodates high voltage circuits. Minimum control voltage of 1.14 V and maximum of 1.5 V ensure stable switching. DPST contact configuration and DIP-8 package simplify PCB mounting.

Operates reliably within -40°C to 85°C temperature span for industrial environments. On-state resistance at 0.83Ω reduces heat generation and power loss. Low off-state leakage current of 1 μA maximizes power savings. PhotoMOS output type provides electrical isolation and contactless switching.

Compact physical size with dimensions of 9.9mm L, 6.4mm W, and 3.2mm H. Certified to standards EN62368-1, UL1577, and CSA ensuring safety and performance.

This solid state relay is widely applicable in industrial automation, electrical equipment, signal conditioning, and low-level analog control systems. Its robust performance and compliance with key international standards make it reliable for use in manufacturing, HVAC controls, laboratory devices, and electronic assemblies.

Product origin is Japan, providing assurance of quality manufacturing and durability. This part is new and ready for integration into a wide range of electronic control solutions. Explore Panasonic products and related Solid State Relays for comprehensive automation and control gear solutions at EnvMart.
